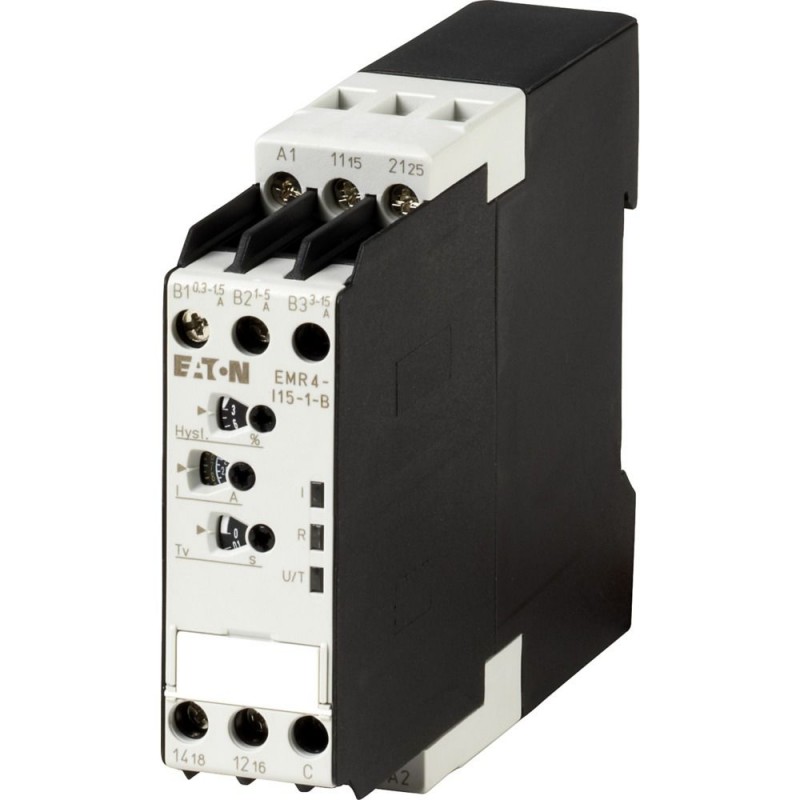

EMR4-I15-1-B 106944 EATON MOELLER controlador de corrente monofásica Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

EMR4-I15-1-B 106944 EATON MOELLER controlador de corrente monofásica

EMR4-I15-1-B

106944

EATON - MOELLER

Disponível

Envio hoje

controlador de corrente monofásica

Mais detalhes


Contatores

DIL Contactors - EATON - MOELLER

EMR Relays- EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$151.26
2+$147.43
3+$145.53
4+$144.32
5+$143.94
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  EMR4+EMR5 measuring and monitoring relays
Basic function
  Current monitoring relays

  Monitoring of single-phase DC and AC networks
Switching hysteresis adjustable from 3 – 30 %
On delay: None = 0 or adjustable from 0.1 to 30 s
Extension of the measurement range possible with current transformers
Mnitoring of
  Overcurrent
Undercurrent
Current measuring range
I
Technical data in sheet catalogue
Other technical data (sheet catalogue)
  >Current monitoring relays
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-20
Operating ambient temperature max.
 °C60
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Relays (EG000019) / Current monitoring relay (EC001440)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Monitoring equipment (low-voltage switch technology) / Current monitoring equipment ([email protected] [AKF096011])
Type of electric connection
  Screw connection
With detachable clamps
  No
Single-phase under current possible
  Yes
Three-phase under current possible
  No
Single-phase over current possible
  Yes
Three-phase over current possible
  No
Single-phase hysteresis possible
  No
Three-phase hysteresis possible
  No
Contains function DC-voltage under current
  Yes
Contains function DC-voltage over current
  Yes
Function DC-current hysteresis
  No
Rated control supply voltage Us at AC 50HZ
 V220 - 240
Rated control supply voltage Us at AC 60HZ
 V220 - 240
Rated control supply voltage Us at DC
 V220 - 240
Voltage type for actuating
  AC/DC
Current measurement range
 A0.3 - 15
Min. adjustable delay-on energization time
 s0.1
Max. permitted delay-on energization time
 s30
Min. adjustable off-delay time
 s0
Max. permitted off-delay time
 s0
Number of contacts as normally closed contact
  0
Number of contacts as normally open contact
  0
Number of contacts as change-over contact
  2
Width
 mm23
Height
 mm78
Depth
 mm110
Approvals
Product Standards  IEC 255-6; UL 508; CSA-22.2 No. 14-05; CE marking
UL File No.  E29184
UL Category Control No.  NKCR, NKCR7
CSA File No.  203843
CSA Class No.  3211-03
North America Certification  UL listed, CSA certified
Degree of Protection  IEC: IP20, UL/CSA Type: -
Characteristics
AWA2430-1862 Current monitor

>
>>
