EC4P-221-MRXD1 106393 EATON MOELLER Controle Fácil EC4P com 6 saídas de relé Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

EC4P-221-MRXD1 106393 EATON MOELLER Controle Fácil EC4P com 6 saídas de relé





Envio hoje

Controle Fácil EC4P - com 6 saídas de relé

Mais detalhes

Relés Programáveis

easy Control EC4P - EATON - MOELLER

easy control - EC4P - CPU's - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

There are several options for payment
- Credit card
- Wire Transfer
- PayPal

Produtos relacionados

Mais informação

Delivery programme
  Expandable: Inputs/outputs and bus systems
individual laser inscription possible with EC4-COMBINATION-*
  easyNet/CANopen® on board
of which can be used as analog
Relay 10 A (UL)
Additional features
Display & keypad

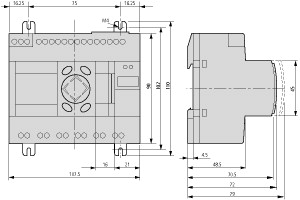

Dimensions (W x H x D)
 mm107.5 x 90 x 72 without/79 with adapter for MCC (6 SU)
  Top-hat rail IEC/EN 60715, 35 mm or screw fixing using 3 fixing brackets ZB4-101-GF1 (accessories)
Terminal capacities
 mm20.2/4 (AWG 22 - 12)
Flexible with ferrule
 mm20.2/2.5 (AWG 22 - 12)
Standard screwdriver
 mm3.5 x 0.8
Max. tightening torque
Climatic environmental conditions
Operating ambient temperature
 °C-25 to 55, cold as per IEC 60068-2-1, heat as per IEC 60068-2-2
  Take appropriate measures to prevent condensation
LCD display (clearly legible)
 °C0 - 55
ϑ°C-40 - +70
Relative humidity, non-condensing (IEC/EN 60068-2-30)
 %5 - 95
Air pressure (operation)
 hPa1080 - 1080
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
Vibrations (IEC/EN 60068-2-6)
Constant amplitude 0.15 mm
 Hz10 - 57
Constant acceleration 2 g
 Hz57 - 150
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
Drop to IEC/EN 60068-2-31
Drop heightmm50
Free fall, packaged (IEC/EN 60068-2-32)
Mounting position
  Vertical or horizontal
Electromagnetic compatibility (EMC)
Overvoltage category/pollution degree
Electrostatic discharge (ESD)
applied standard
  IEC EN 61000-4-2, Level 3
Air discharge
Contact discharge
Electromagnetic fields (RFI) to IEC EN 61000-4-3
Radio interference suppression
  EN 55011 Class B, EN 55022 Class B
 kVIEC/EN 61000-4-4, level 3
Supply cable
Signal lines
power pulses (Surge)
  2 kV (supply cables, symmetrical, EASY...AC)
0.5 kV (supply cables, symmetrical, easy-DC)
according to IEC/EN 61000-4-5
Immunity to line-conducted interference to (IEC/EN 61000-4-6)
Insulation resistance
Clearance in air and creepage distances
  EN 50178, UL 508, CSA C22.2, No. 142
Insulation resistance
  EN 50178
Back-up of real-time clock
Back-up of real-time clock
Technical data for design verification
Rated operational current for specified heat dissipation
Heat dissipation per pole, current-dependent
Equipment heat dissipation, current-dependent
Static heat dissipation, non-current-dependent
Heat dissipation capacity
Operating ambient temperature min.
Operating ambient temperature max.
IEC/EN 61439 design verification
10.2 Strength of materials and parts
10.2.2 Corrosion resistance
  Meets the product standard's requirements. Verification of thermal stability of enclosures
  Meets the product standard's requirements. Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements. Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Meets the product standard's requirements.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties
10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
PLC's (EG000024) / PLC device set (EC002581)
Electric engineering, automation, process control engineering / Control / Programmable logic control (SPS) / PLC device set ([email protected] [BAA707010])
Contains function building blocks
Contains basic device
Contains module rack
Contains power supply
Contains analogue input module
Contains analogue output module
Contains digital input module
Contains digital output module
Contains function module
Contains technology modle
Contains communication module
Contains memory unit
Contains simulation module
Contains connection cable
Contains control unit
Contains monitor
Contains programming software
Contains engineering software
Contains visualization
Contains libraries
Contains documentation
Contains other components
Software preinstalled
Product Standards  IEC: see Technical Data; UL508; CSA-C22.2 No. 0-M; CSA-C22.2 No. 142-M; CE marking
UL File No.  E135462
UL Category Control No.  NRAQ
CSA File No.  012528
CSA Class No.  2252-01
North America Certification  UL listed, CSA certified
Specially designed for North America  No
Current Limiting Circuit-Breaker  No
Degree of Protection  IEC: IP20, UL/CSA Type: -
IL05003003Z (AWA2724-2334) easyControl: Compact controller
