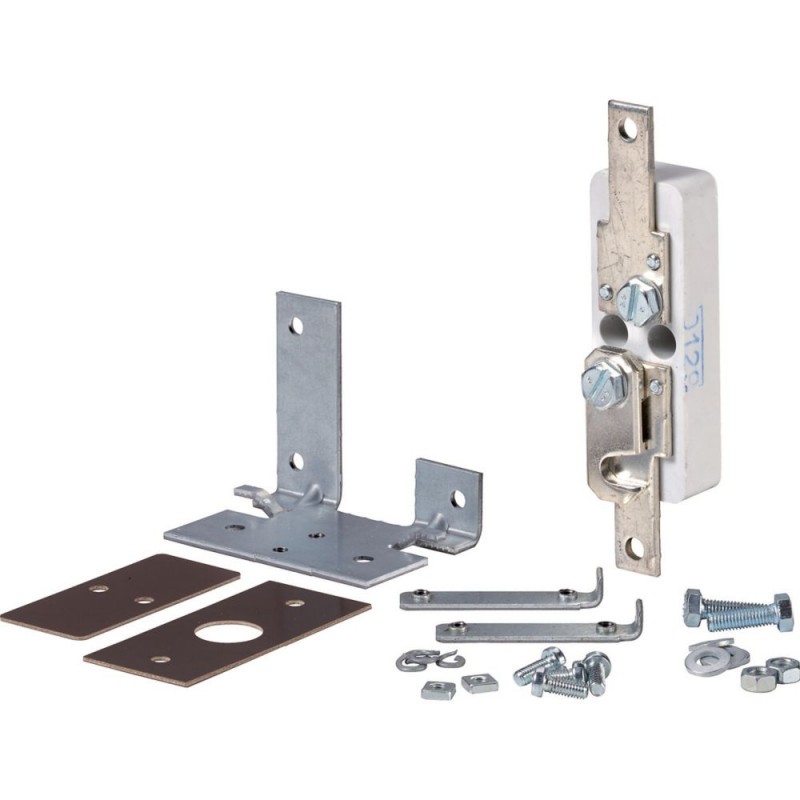

QSAN160/200A 1319473 EATON MOELLER Interruptores S. DUMECO Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

QSAN160/200A 1319473 EATON MOELLER Interruptores S. DUMECO

QSAN160/200A

1319473

EATON - MOELLER

Disponível

Envio hoje

Interruptores S. DUMECO

Mais detalhes


Interruptor Seccionador

DUMECO Switch-Disconnectors- EATON - MOELLER

DUMECO Switch-Disconnectors- EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$43.11
5+$39.92
10+$38.95
14+$38.55
19+$38.26
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Accessories
Part group reference
  QSA
Basic function
  neutral conductor
Function
  direct neutral conductor

  For on-site mounting
For use with
  QSA160N
QSA200N
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA200
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Accessories for low-voltage switch technology (EC002498)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Low-voltage switch technology (accessories) / Component for low-voltage switch technology (accessories) ([email protected] [AKN570010])
Type of accessory
  4th pole

Datasheet - PDF
