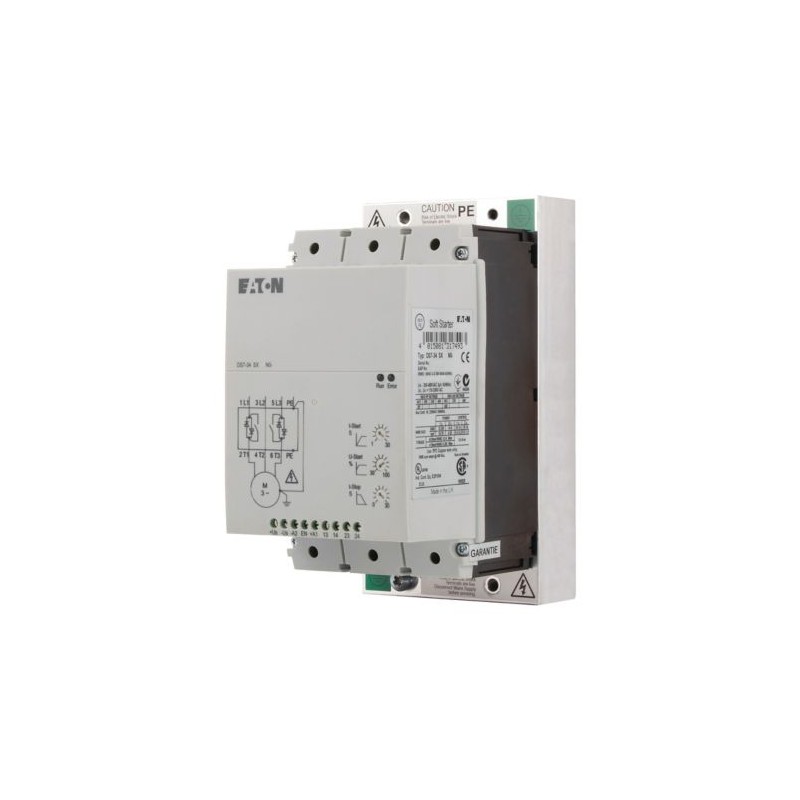

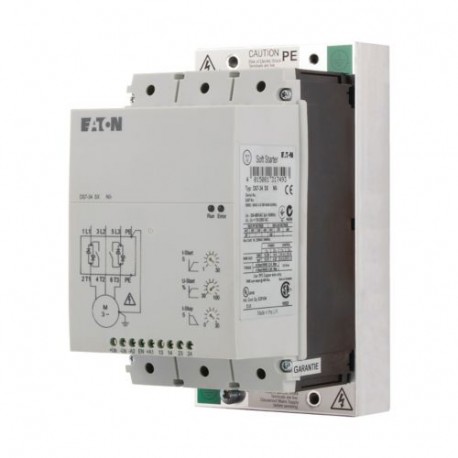

DS7-340SX055N0-N 134917 EATON MOELLER Soft starter, 3p, 55A, 200-480VAC, us 24VAC/DC Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

DS7-340SX055N0-N 134917 EATON MOELLER Soft starter, 3p, 55A, 200-480VAC, us 24VAC/DC

DS7-340SX055N0-N

134917

EATON - MOELLER

Disponível

Envio hoje

Soft starter, 3p, 55A, 200-480VAC, us=24VAC/DC

Mais detalhes


Arrancadores Suaves Motores Arranque

Soft starters - EATON - MOELLER

DS - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$453.78
2+$446.64
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Description
  With internal bypass contacts
Function
  Soft starters for three-phase loads
Mains supply voltage (50/60 Hz)
ULNV AC200 - 480
Supply voltage
Us 24 V AC/DC
Control voltage
UC 24 V AC
24 V DC
Assigned motor rating (Standard connection, In-Line)

at 400 V, 50 Hz
PkW30
at 460 V, 60 Hz
PHP40
Rated operational current

AC-53
IeA55
Startup class
  CLASS 10 (star-delta replacement)
CLASS 20 (heavy starting duty 3 x Ie for 45 s)
Rated operational voltage
Ue 200 V
230 V
400 V
480 V
Connection to SmartWire-DT
  no
Technical data
General
Standards
  IEC/EN 60947-4-2
UL 508
CSA22.2-14
Approvals
  CE
Approvals
  UL
CSA
C-Tick
UkrSEPRO
Climatic proofing
  Damp heat, constant, to IEC 60068-2-3
Damp heat, cyclic, to IEC 60068-2-10
Ambient temperature

Operation
ϑ°C-5 - +40
up to 60 at 2% derating per Kelvin temperature rise
Storage
ϑ°C-25 - +60
Altitude
 m0 - 1000 m, above that 1 % derating per 100 m , up to 2000 m
Mounting position
  Vertical
Degree of protection

Degree of Protection
  IP20 (terminals IP00)
Integrated
  Protection type IP40 can be achieved on all sides with covers from the NZM range.
Protection against direct contact
  Finger- and back-of-hand proof
Overvoltage category/pollution degree
  II/2
Shock resistance
  8 g/11 ms
Vibration resistance to EN 60721-3-2
  2M2
Radio interference level (IEC/EN 55011)
  B
Static heat dissipation, non-current-dependent
PvsW10
Weight
 kg1.8
Main conducting paths
Rated operating voltage
UeV AC200 - 480
Supply frequency
fLNHz50/60
Rated operational current
IeA
AC-53
IeA55
Assigned motor rating (Standard connection, In-Line)

at 230 V, 50 Hz
PkW15
at 400 V, 50 Hz
PkW30
at 200 V, 60 Hz
PHP15
at 230 V, 60 Hz
PHP20
at 460 V, 60 Hz
PHP40
Overload cycle to IEC/EN 60947-4-2

AC-53a
  55 A: AC-53a: 3 - 5: 75 - 10
Internal bypass contacts

Technical data for design verification

Rated operational current for specified heat dissipation
InA55
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW10
Static heat dissipation, non-current-dependent
PvsW10
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-5
Operating ambient temperature max.
 °C40
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Soft starter (EC000640)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Load breakout, motor breakout / Semiconductor motor controller or soft starter ([email protected] [ACO300008])
Rated operation current Ie at 40 °C Tu
 A55
Rated operating voltage Ue
 V230 - 460
Rated power three-phase motor, inline, at 230 V
 kW15
Rated power three-phase motor, inline, at 400 V
 kW30
Rated power three-phase motor, inside delta, at 230 V
 kW0
Rated power three-phase motor, inside delta, at 400 V
 kW0
Internal bypass
  Yes
With display
  No
Torque control
  No
Rated surrounding temperature without derating
 °C40
Rated control supply voltage Us at AC 50HZ
 V24 - 24
Rated control supply voltage Us at AC 60HZ
 V24 - 24
Rated control supply voltage Us at DC
 V24 - 24
Voltage type for actuating
  AC/DC
Integrated motor overload protection
  No
Approvals
Product Standards  IEC/EN 60947-4-2; GB 14048.6; UL 508; CSA-C22.2 No 0-M91; CSA-C22.2 No 14-05 CE marking
UL File No.  E251034
CSA File No.  2511305
CSA Class No.  321106
Specially designed for North America  No
Suitable for  Branch circuits
Current Limiting Circuit-Breaker  No
Max. Voltage Rating  480 V
Degree of Protection  IP20; UL/CSA Type 1
Dimensions
IL03902005Z Instructions for DS7 Soft Starter

>
>
>>
