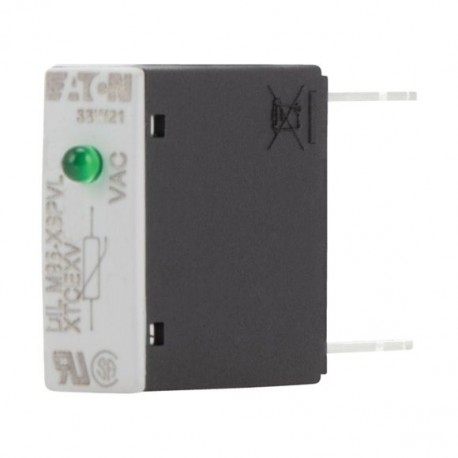

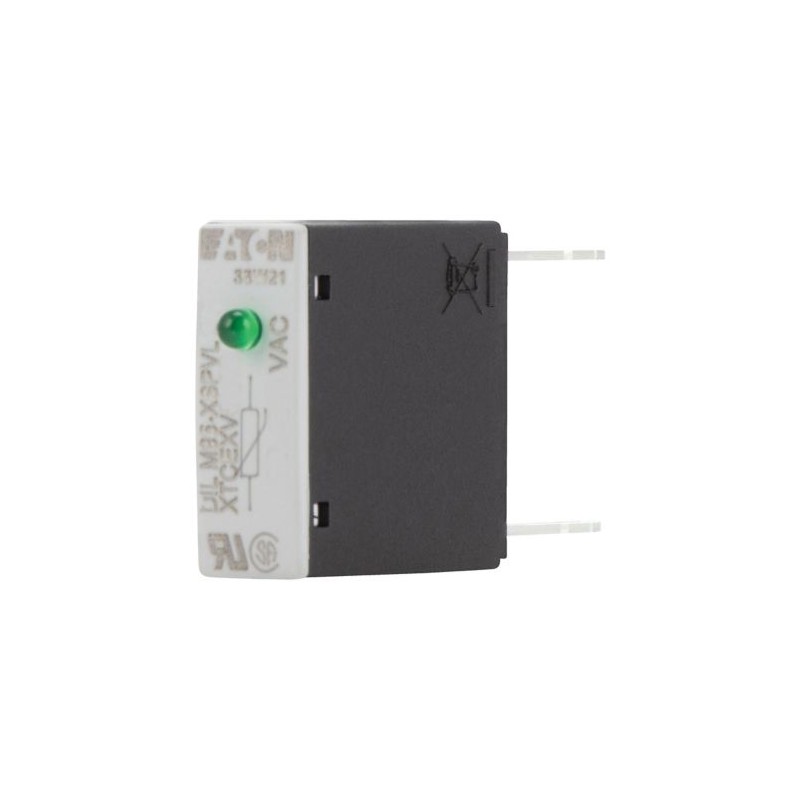

DILM95-XSPVL48 281224 XTCEXVSLFW EATON ELECTRIC XTCEXVSLFW Protecção Módulo Varistor
DILM95-XSPVL48
281224
XTCEXVSLFW
EATON-MOELLER
10
XTCEXVSLFW Protecção Módulo Varistor
Módulo Supressor Varistor com LED 24-48 V AC para contatores DILM40... 95
Eaton Moeller® series DILM Varistor suppressor circuit, 24 - 48 AC V, For use with: DILM40 - DILM95, DILK33 - DILK50, DILMP63 - DILMP200 DILM95-XSPVL48
Disjuntores de baixa tensão > Componente para circuito de proteção
Acessórios KDIL
* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Mais informação
▲General specifications
Product Name
Eaton Moeller® series DILM varistor suppressor circuit
Catalog Number
281224
Packing Unit
Pack
EAN
4015081831050
Quantity
10
Gross Weight
0.067 kg
Length
70 mm
Width
75 mm
Height
65 mm
Volume
341.25 cm³
ERP Name
SAP-UNITY
Product Length/Depth
45 mm
Product Height
25 mm
Product Width
9 mm
Product Weight
0.005 kg
Certifications
UL File No.: E29184
CSA
UL Recognized
CE
CSA File No.: 256465
IEC/EN 60947-4-1
CSA-C22.2 No. 14-05
CSA Class No.: 3211-07
UL 508
UL Category Control No.: NKCR2, NKCR8
CSA
UL Recognized
CE
CSA File No.: 256465
IEC/EN 60947-4-1
CSA-C22.2 No. 14-05
CSA Class No.: 3211-07
UL 508
UL Category Control No.: NKCR2, NKCR8
Catalog Notes
With DC operated contactors and with DILM115 and DILM150 the suppressor is integrated.
Model Code
DILM95-XSPVL48
Features Functions
Functions
Varistor (voltage-sensitive resistor)
Fitted with:
LED indication
General
Product category
Accessories
Voltage type
AC
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Magnet system
Rated control supply voltage (Us) at AC, 50 Hz - min
24 V
Rated control supply voltage (Us) at AC, 50 Hz - max
48 V
Rated control supply voltage (Us) at AC, 60 Hz - min
24 V
Rated control supply voltage (Us) at AC, 60 Hz - max
48 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 34 Mbytes |
|
| DILM95-XSPVL48 XTCEXVSLFW 281224 ES_235910.pdf | 1 Mbytes |
|
