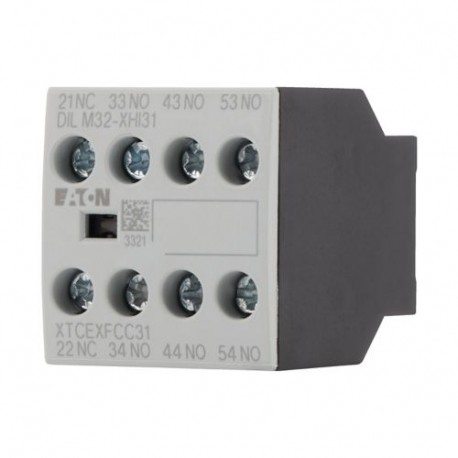

Contatos auxiliares Bloco XTCEXFCC31, 3NA + 1NC

Mais detalhes


Contatores

DIL Contactors - EATON - MOELLER

DIL Contactors (Accessories)- EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$9.94
14+$8.59
27+$8.39
40+$8.29
54+$8.22
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Accessories
Accessories
  Auxiliary contact modules
Description
  with interlocked opposing contacts
Function
  for standard applications
Pole
  4 pole
Connection technique
  Screw terminals
Rated operational current

AC-3

Conventional free air thermal current, 3 pole, 50 - 60 Hz

Open

at 60 °C
Ith =IeA16
AC-15

220 V 230 V 240 V
IeA4
380 V 400 V 415 V
IeA3
Contacts

N/O = Normally open
  3 N/O
N/C = Normally closed
  1 NC
Mounting type
  Front fixing
Contact sequence

Electrical specifications for standard auxiliary contacts
Interlocked opposing contacts within an auxiliary contact module (to IEC 60947-5-1 Annex L)
  Yes
N/C contact (not late-break contact) suitable as a mirror contact (to IEC/EN 60947-4-1 Annex F)
  DILM7 - DILM38
Rated impulse withstand voltage
UimpV AC6000
Overvoltage category/pollution degree
  III/3
Rated insulation voltage
UiV AC690
Rated operational voltage
UeV AC500
Safe isolation to EN 61140

between coil and auxiliary contacts
 V AC400
between the auxiliary contacts
 V AC400
Rated operational current
 A
Conventional free air thermal current, 3 pole, 50 - 60 Hz

Open

at 60 °C
Ith =IeA16
AC-15

220 V 230 V 240 V
IeA4
380 V 400 V 415 V
IeA3
500 V
IeA1.5
DC current

DC-13 (6xP)

Contacts in series:
 A
3
24 VA2.5
3
60 VA1
3
110 VA0.5
3
220 VA0.25
Control circuit reliability
Failure rateλ<10-8, < one failure at 100 million operations
(at Ue = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Component lifespan

at Ue = 230 V, AC-15, 3 A
Operationsx 1061.3
Short-circuit rating without welding

max. fuse
 A gG/gL10
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA4
Heat dissipation per pole, current-dependent
PvidW0.16
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C60
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Auxiliary contact block (EC000041)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Auxiliary switch block ([email protected] [AKN342010])
Number of contacts as change-over contact
  0
Number of contacts as normally open contact
  3
Number of contacts as normally closed contact
  1
Rated operation current Ie at AC-15, 230 V
 A6
Type of electric connection
  Screw connection
Model
  Top mounting
Mounting method
  Front fastening
Approvals
Product Standards  IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE marking
UL File No.  E29184
UL Category Control No.  NKCR
CSA File No.  012528
CSA Class No.  3211-03
North America Certification  UL listed, CSA certified
Specially designed for North America  No
