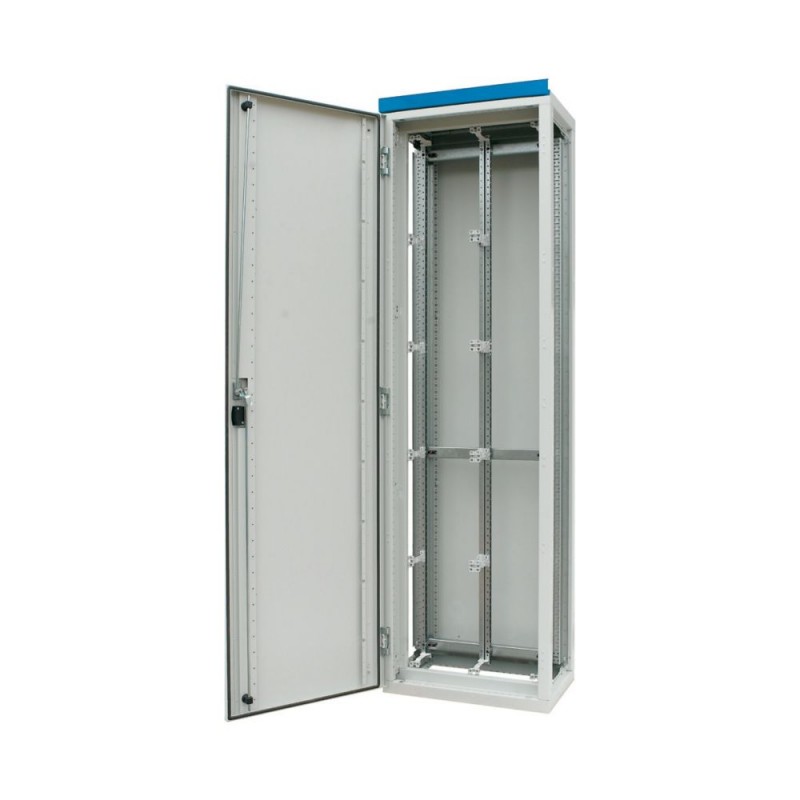

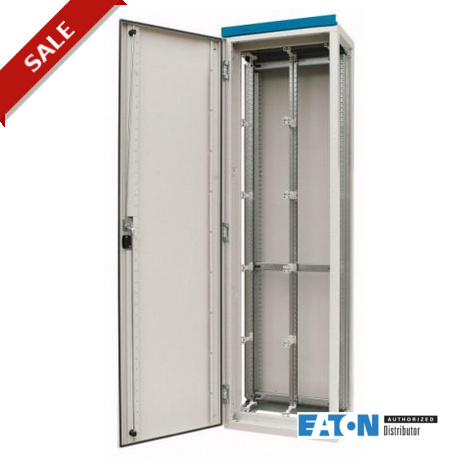

XVTL-MP/BF-6/3/20-IVS 118942 EATON MOELLER Distribution cabinet, IVS, HxWxD 2000x600x300mm, IP55

XVTL-MP/BF-6/3/20-IVS

118942

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

Distribution cabinet, IVS, HxWxD=2000x600x300mm, IP55

Mais detalhes


Armários Distribuição Caixas Involucros Quadros

Enclosures- EATON - MOELLER

CS Accessories - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Service distribution board IVS
Basic function
  Combination enclosures
Single unit/Complete unit
  Complete housing
Degree of Protection
  IP55 (with door and flange)
Description
  Basic enclosure xVtl
Including open cable entries top, prepared for F3A flange
Material
  Sheet steel
Surface finish
  Polyester powder coating
Phosphated
RAL 7035, light grey
Colour
  RAL 7035, light grey
Information about equipment supplied
  including frame, doors, back plate, top plate and branding strip
Including support frame for the IVS mounting units
including insulating surround and mounted insulated support bracket
Without side walls
Width
 mm600
Height
 mm2000
Depth
 mm300
Technical data
General
Standards
  EN 60439-1/3
IEC 62208
Protection class
  1
Degree of Protection
  IP55 (with door and flange)
Power loss

Max. admissible heat dissipation, ambient air temperature +35 °C
 W355
Weight
 kg88
Material characteristics
Material
  Sheet steel
Surface treatment
  Painting, phosphated and polyester powder coating
Surface finish
  Polyester powder coating
Phosphated
RAL 7035, light grey
Colour
  RAL 7035, light grey
Material characteristics

Type Door
  Doors with covered hinges
Can be removed from 90°
door opening angle
  120° (single mounting)
120° (combination mounting)
Door interlock
  Roller lever lock
Three-point interlock
Material properties
Mechanical

Impact resistance
  IK07
Cable entry
  Various covers allow cable entry from above and/or below
Electrical

Rated operational voltage
UeV690
Rated frequency
fHz50
Rated operational current
IeCSA630
Max. admissible heat dissipation, ambient air temperature +35 °C
 W355
Earthings
  Screw M10 (base frame)
M6 weld stud (enclosure side plate, top, bottom panel)
Taptite screw M6 (door)
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Heat dissipation, at an ambient temperature of 35°C, delta T: 20 degrees, calculated as per IEC 60890

Individual enclosure, free-standing
PVCO172
Starting enclosure, free-standing
PVCO162
Middle enclosure, free-standing
PVCO145
Individual enclosure for wall mounting
PVCO146
Starting enclosure for wall mounting
PVCO133
Middle enclosure for wall mounting
PVCO123
Heat dissipation, at an ambient temperature of 35°C, delta T: 35 degrees, calculated as per IEC 60890

Individual enclosure, free-standing
PVCO345
Starting enclosure, free-standing
PVCO325
Middle enclosure, free-standing
PVCO291
Individual enclosure for wall mounting
PVCO294
Starting enclosure for wall mounting
PVCO268
Middle enclosure for wall mounting
PVCO247
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Not applicable.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Not applicable.
10.2.4 Resistance to ultra-violet (UV) radiation
  Not relevant to indoor installations.
10.2.5 Lifting
  Met; assembled and secured as per the latest applicable instruction leaflet.
10.2.6 Mechanical impact
  IK10
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  IP55
10.4 Clearances and creepage distances
  Is the panel builder's responsibility.
10.5 Protection against electric shock
  < 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
  Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Ui = 690 V AC
10.9.3 Impulse withstand voltage
  6 kV
10.9.4 Testing of enclosures made of insulating material
  Does not apply to metal enclosures.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  Meets the product standard's requirements.
