> >>CS-64/250 111694 0002466118 ELECTRIC Wall enclosure, +mounting plate, HxWxD 600x400x250mm
Produto anterior Próximo produto

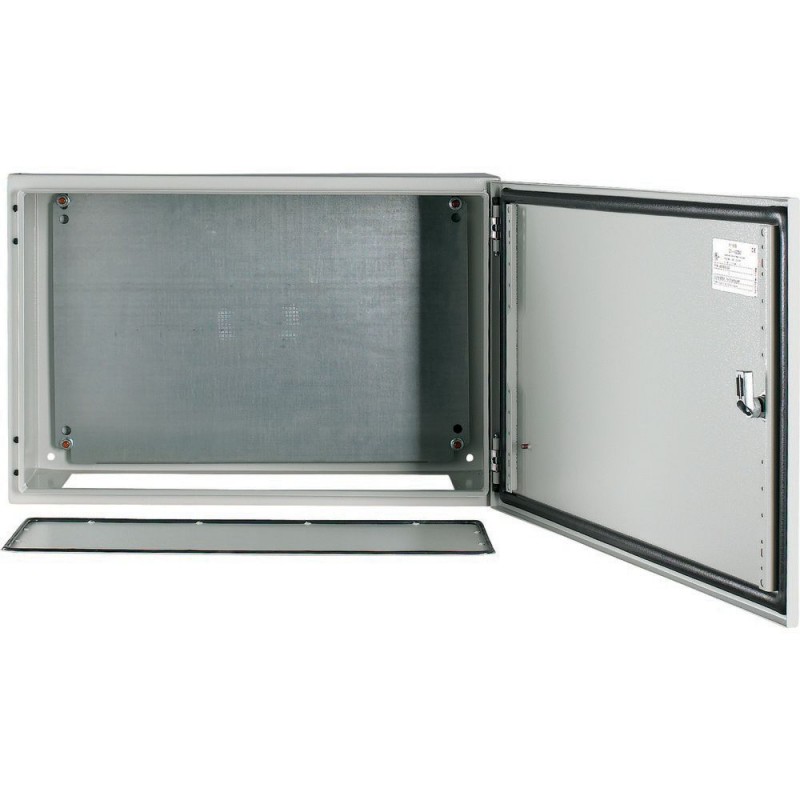

CS-64/250 111694 0002466118 EATON ELECTRIC Wall enclosure, +mounting plate, HxWxD 600x400x250mm Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

CS-64/250 111694 0002466118 EATON ELECTRIC Wall enclosure, +mounting plate, HxWxD 600x400x250mm

CS-64/250

111694

0002466118

EATON-MOELLER

Wall enclosure, +mounting plate, HxWxD=600x400x250mm

Placa de montagem do armário de parede incluída HxLxP=600x400x250mm

Eaton xEffect CS LV systems Switch- & Controlgear Enclosure. Wall enclosure with mounting plate, HxWxD=600x400x250mm

Mais detalhes


Sistemas de armários elétricos > Caixa / armário de distribuição (vazio)

Caixas e armários industriais

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $162.98
Preço unitário: $162.98

Quantidade Preço
1+$162.98
2+$150.19
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Mais informação

▲


General specifications

Product Name
Eaton xEffect CS enclosure single door
Catalog Number
111694
EAN
4015081112531
Product Length/Depth
250 mm
Product Height
600 mm
Product Width
400 mm
Product Weight
14.89 kg
Compliances
RoHS conform
UL 508A; CSA-C22.2 No.14; IEC/EN 62208; CE marking
UL CSA09 (may be provided with metal sub-panel, no back mounted components are allowed between sub-panel and the back sheet metal enclosure)
Certifications
IEC/EN 62208
UL (Category Control Number NITW)
UL CSA08 (request filed)
UL (File No. E336299)
In accordance with Directive 2015/863/EU of the European Parliament and Council
Model Code
CS-64/250

Delivery program

Type
Wall-mounting housing CSWall-mounting housing with mounting plate
Color
Gray
Light gray (RAL 7035)

Technical data - mechanical

Design type
Canted and seam welded, including two M6 threaded bolts for earth conductor connections inside the enclosure.
Surface finishing
Gloss
Structured powder spray polyester based paint finish
Semi-textured
Powder coating
Surface treatment
Structured powder spray polyester based paint finish
Mounting method
Wall fastening
9 mm drilling dimensions for wall mounting (Back plate)
Intermediate mounting
Mounting plate height
570 mm
Mounting plate material
Sheet steel, hot-galvanized
Mounting plate width
350 mm
Material
Steel plate
Steel
Material thickness (body)
1.2 mm
Material thickness (bottom plate)
2 mm
Material thickness (door)
1.2 mm
Material quality
Other
Degree of protection
IEC: IP66, indoor; UL/CSA Types 1, 12, indoor only.
12 (NEMA)
IK09 (impact resistance)
IP66
IP23 (with ventilating plates)
IK09
Number of F3A flanges
1
Number of connector holes
0
Number of covers/doors
1
Number of hinges
2
Number of locks
2
Load capacity (door)
25 kg
Load capacity (mounting plate)
500 kg payload, when brackets fitted in all four enclosure corners (vertically or horizontally) and the weights are symmetrically distributed within the enclosure.
200 kg
Permissible load of the door(s) according to IEC 62208 - max
250 N
Permissible load of the enclosure according to IEC 62208 - max
2250 N
Permissible load of the mounting plate according to IEC 62208 - max
2000 N
Weight of mounted components - max
225 kg
Cover/door angle
120° door opening angle
Cover/door profile
2 door profiles
Cover/door type
Door hinges on the right, can be converted by user
Closed
Standard closure 3 mm double-ward key (door interlock)
Flange plate dimensions
112 mm x 332 mm
Installation site
Indoor installation
Installation type
Floor standing wall model
Thickness of mounting plate
2 mm
Climatic proofing
Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclical, to IEC 60068-2-30

Temperature-rise verification as per IEC 60890

Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
38 W
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
77 W
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
45 W
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
42 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
90 W
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
83 W
Heat diss. wall mount individual encl. top
45 W
Heat diss. wall mount middle encl. top
38 W
Heat diss. wall mount starting encl. top
42 W
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
45 W

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature details
-25 °C - 40 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK09
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP66
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
< 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 1000 V AC
10.9.3 Impulse withstand voltage
Does not apply to basic enclosures as defined in EN 62208.
10.9.4 Testing of enclosures made of insulating material
Does not apply to metal enclosures.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.

Additional information

Features
Pole fastening
Wall build in
Fitted with:
Mounting plate
Including M6 threaded welded studs for earth conductor connections in the door:
Cover
Door
Functions
Floor standing enclosure
RAL-number
7035
Special features
Bottom plate enclosed, foamed gasket, can be unscrewed for F3A-… flanges or for assembly by userFoamed polyurethane sealing throughout.Impact resistance category IK09 to EN 62262.Sheet steel mounting plateBottom plate with foamed gasket.Single door, door stop on the right, door opening angle 120°Door hinge pins with quick change technology.Standardized locking system with sash fastener.Powder coating RAL 7035 inside and outsideLock, 3 mm double ward keyIncluding M6 threaded welded studs for earth conductor connections in the doorSide plates without aperturesTop plate without apertures
