CS-1010/300 111716 EATON MOELLER Wall enclosure, +mounting plate, HxWxD 1000x1000x300mm Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

CS-1010/300 111716 EATON MOELLER Wall enclosure, +mounting plate, HxWxD 1000x1000x300mm

CS-1010/300

111716

EATON - MOELLER

Disponível

Envio hoje

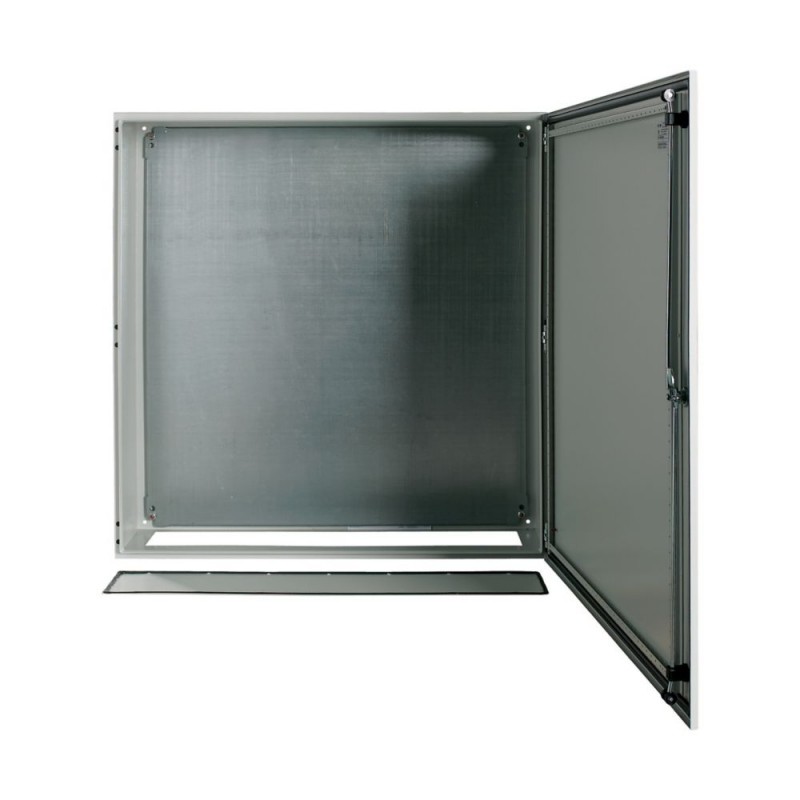

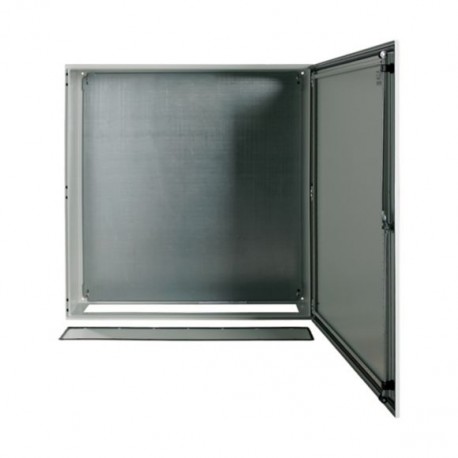

Wall enclosure, +mounting plate, HxWxD=1000x1000x300mm

Mais detalhes


Armários Distribuição Caixas Involucros Quadros

Enclosures- EATON - MOELLER

CS Accessories - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$456.25
2+$451.87
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Wall-mounting housing CS
Product function
  Wall-mounting housing with mounting plate
Degree of Protection
  IP66
IP23 (with ventilating plates)
Description
  Foamed polyurethane sealing throughout.
Impact resistance category IK09 to EN 62262.
Sheet steel mounting plate
Bottom plate with foamed gasket.
Single door, door stop on the right, door opening angle 120°
Door hinge pins with quick change technology.
Standardized locking system with sash fastener.
Powder coating RAL 7035 inside and outside
Material
  Steel plate
Dimensions

Width
 mm1000
Height
 mm1000
Depth
 mm300
Locks
Number 1 (3-point)
Hinges
Number 3
Door profile molding
Number 2
Flange plates
Width x Depthmm172 x 932
Max. F3A flanges
Number 3
Mounting plates

Height
 mm970
Width
 mm950
Weight
 kg68
Information about equipment supplied
  Lock, 3 mm double ward key
Including M6 threaded welded studs for earth conductor connections in the door
Technical data
General
Standards
  IEC/EN 60529, IEC 62262, IEC/EN 62208
RoHS
  In accordance with Directive 2002/95/EC of the European Parliament and Council
RoHS (in accordance with Directive 2002/95/EC of the European Parliament and Council)
  yes
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclical, to IEC 60068-2-30
Ambient temperature
 °C-40 - +70
Degree of Protection
  IP66
IP23 (with ventilating plates)
Installation conditions
  Indoor-/outdoor installation
Power loss


  Power loss Pv [W] for fully enclosed sheet steel enclosure CS without internal partitions for wall mounting.
Example: max. ambient temperature 35°C; Overtemperature ΔT = 20 K; Relative humidity = 75%.
Max. heat dissipation

Individual enclosure for wall mounting
PVW143
Starting enclosure for wall mounting
PVW136
Middle enclosure for wall mounting
PVW128
Material characteristics
Material
  Steel plate
Surface treatment
  Structured powder spray polyester based paint finish
Surface finish
  Semi-textured
Colour
  RAL 7035, light grey
Finish
  Gloss
Material thickness
 mm
Body
 mm1.5
Mounting plate
 mm3
Door
 mm2
Bottom plate
 mm1.5
Material properties
Mechanical

Impact resistance
  IK09 according to EN 62262
max. assembly weights

Total of Weight of fitted components
 kg390
Mounting plate
 kg350
Door
 kg40

  500 kg payload, when brackets fitted in all four enclosure corners (vertically or horizontally) and the weights are symmetrically distributed within the enclosure.
Description/standard features
Construction
  Canted and seam welded, including two M6 threaded bolts for earth conductor connections inside the enclosure.
Back plate
  9 mm drilling dimensions for wall mounting
Side plates
  Without apertures
Top plate
  Without apertures
Bottom plate
  Enclosed, foamed gasket, can be unscrewed for F3A-… flanges or for assembly by user
Mounting plate, material
  Sheet steel, hot-galvanized
Door, Engineering
  Including M6 threaded welded studs for earth conductor connections in the door:
Information about equipment supplied
  Lock, 3 mm double ward key
Including M6 threaded welded studs for earth conductor connections in the door

  If electrical apparatus is to be installed in the door, a continuous, permanent protective ground contactor connection must be established with a protective ground cable. The threaded welded studs on the door and on the cabinet side wall must be used as connecting points for the ground leads.
Door hinges
  On the right, can be converted by user
Type Door
  Door hinges right
can be converted by user
door opening angle
  120°
Door interlock
  Protection insulated turn-buckle
Standard closure 3 mm double-ward key
Locks
Number 1 (3-point)
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Heat dissipation, at an ambient temperature of 35°C, delta T: 20 degrees, calculated as per IEC 60890

Individual enclosure for wall mounting
PVCO138
Starting enclosure for wall mounting
PVCO130
Middle enclosure for wall mounting
PVCO121
Heat dissipation, at an ambient temperature of 35°C, delta T: 35 degrees, calculated as per IEC 60890

Individual enclosure for wall mounting
PVCO277
Starting enclosure for wall mounting
PVCO260
Middle enclosure for wall mounting
PVCO243
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
  IK09
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  IP66_x
10.4 Clearances and creepage distances
  Is the panel builder's responsibility.
10.5 Protection against electric shock
  < 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
  Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Ui = 1000 V AC
10.9.3 Impulse withstand voltage
  Does not apply to basic enclosures as defined in EN 62208.
10.9.4 Testing of enclosures made of insulating material
  Does not apply to metal enclosures.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  Meets the product standard's requirements.
Approvals
Product Standards  UL 508A; CSA-C22.2 No.14; IEC/EN 60529; CE marking
UL File No.  E336299
UL Category Control No.  NITW
CSA File No.
CSA Class No.
North America Certification  Request filed for CSA
Conditions of Acceptability  Series CS may be provided with metal sub-panel. No back mounted components are allowed between sub-panel and the back sheet metal enclosure
Specially designed for North America  No
Suitable for  Industrial Control Panels
Degree of Protection  IEC: IP66, indoor and outdoor; UL/CSA Types 1, 12, indoor only.
Dimensions
>Dimensions
CAD data
>Product-specific CAD data
>3D Preview

Datasheet - PDF
