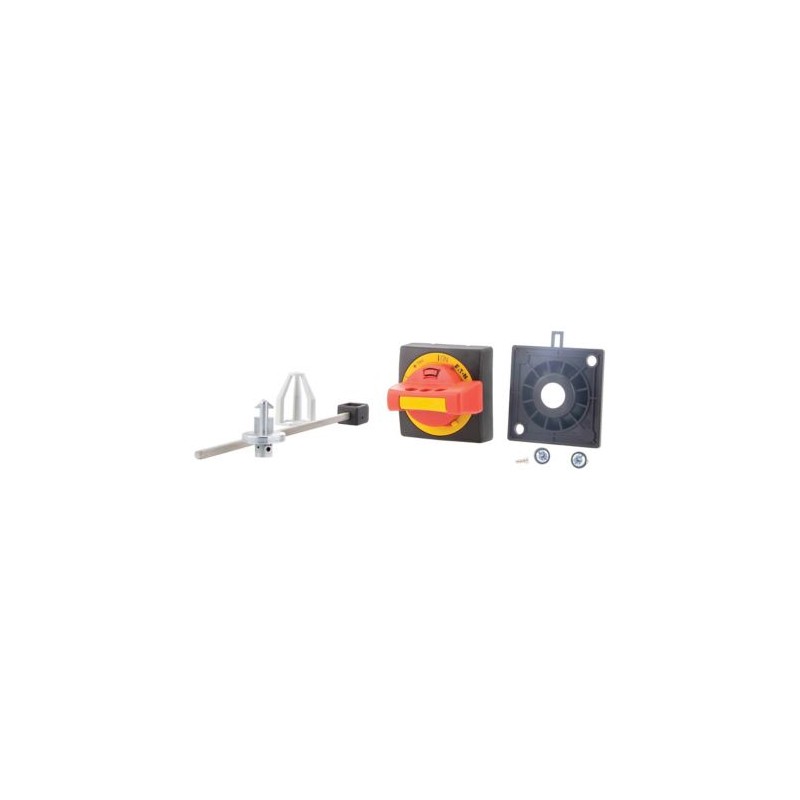

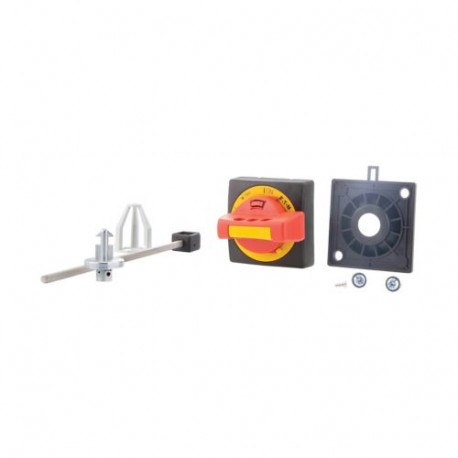

PKZ0-XRH 106133 EATON MOELLER Mando XTPAXRHMRY porta / w preta fechada com 3 cadeados Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

PKZ0-XRH 106133 EATON MOELLER Mando XTPAXRHMRY porta / w preta fechada com 3 cadeados

PKZ0-XRH

106133

EATON - MOELLER

Disponível

Envio hoje

Mando XTPAXRHMRY porta / w preta fechada com 3 cadeados

Mais detalhes


Disjuntor Do Motor

Motor Protective Circuit Breakers PKZ - EATON - MOELLER

Motor-protective circuit-breakers PKZ (Accessories) - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$24.00
5+$22.22
10+$21.67
14+$21.45
19+$21.27
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Accessories
Accessories
  Door coupling handle

  For use as a main switch with Emergency-Stop function, to EN 60204
Colour


  Red-yellow
For use with
  PKZM0
PKZM4
Notes

Plug-in extension shaft PKZ0-XAH can be cut to desired length for mounting depths of 100…240 mm

Carrier with extension shaft included as standard.

With ON/OFF switch position and “+” (tripped), lockable

With 3 padlocks, 4 – 8 mm hasp thickness.

Cannot be used in combination with VHI20-PKZ0.

ZFS... (except for ZFS-(L)TS-NZM) add-on front plates can be used.

Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C55
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Please enquire
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  Not applicable.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Handle for power circuit breaker (EC000229)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Handle for switch devices ([email protected] [AKF012011])
Lockable
  Yes
Colour
  Red
Suitable for emergency stop
  Yes
With axe
  Yes
Suitable for power circuit breaker
  No
Suitable for switch disconnector
  No
Approvals
Product Standards  UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking
UL File No.  E36332
UL Category Control No.  NLRV
CSA File No.  165628
CSA Class No.  3211-05
North America Certification  UL listed, CSA certified
Specially designed for North America  No
Degree of Protection  IEC: IP65, UL/CSA Type: 4X, 12
Dimensions
IL03402018Z (AWA1210-2348) door coupling rotary handle

>>

Datasheet - PDF
