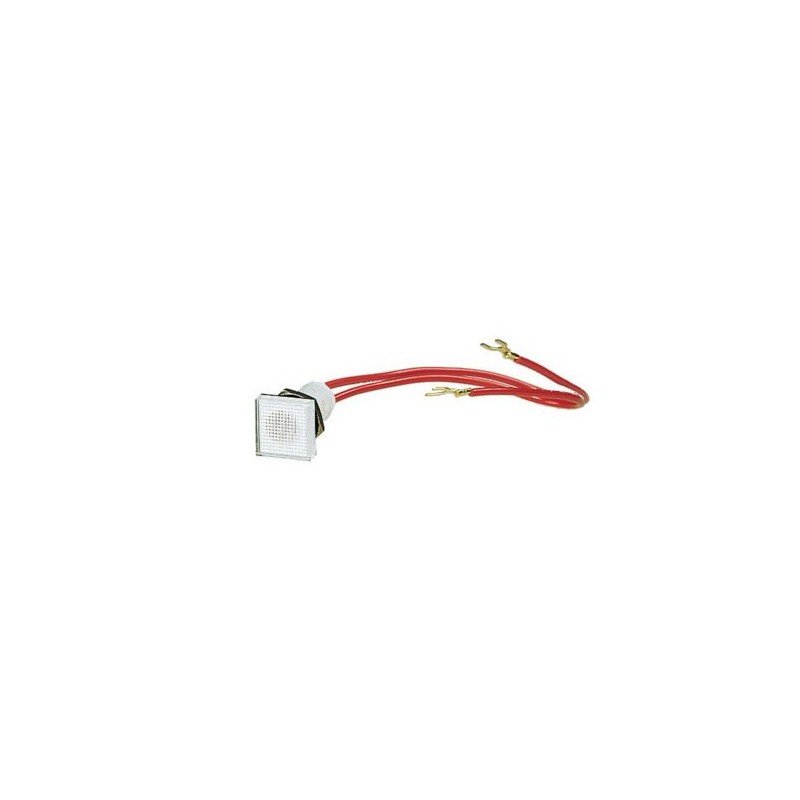

L-PKZ0(400V) 082152 EATON MOELLER Signal XTPAXILWN lâmpada Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

L-PKZ0(400V) 082152 EATON MOELLER Signal XTPAXILWN lâmpada

L-PKZ0(400V)

082152

EATON - MOELLER

Disponível

Envio hoje

Signal XTPAXILWN lâmpada

Mais detalhes


Disjuntor Do Motor

Motor Protective Circuit Breakers PKZ - EATON - MOELLER

Motor-protective circuit-breakers PKZ (Accessories) - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$9.87
13+$8.58
25+$8.38
37+$8.28
49+$8.21
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Accessories
Accessories
  Indicator lights
Colour



Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0.46
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C55
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Please enquire
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Indicator light complete (EC000272)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Indicator light complete ([email protected] [AKF041011])
Number of indicator lights
  10
Colour lens
  Clear
Type of lamp socket
  -
With lamp
  Yes
Rated operating voltage Ue
 V230 - 400
Voltage type
  AC/DC
Type of electric connection
  Flat plug-in connection
Construction type lens
  Rectangular
Type of lens
  Flat
Hole diameter
 mm16
Width opening
 mm0
Height meter opening
 mm0
Degree of protection (IP)
  IP65
With front ring
  No
Material front ring
  Plastic
Colour front ring
  -
Approvals
Specially designed for North America  No

Datasheet - PDF
