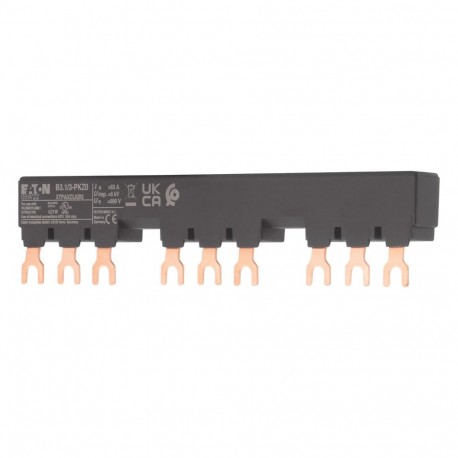

B3.1/3-PKZ0 044946 EATON MOELLER XTPAXCLKB3 trifásica ligação commoning, por 3 PKZ0, + contacto auxiliar Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

B3.1/3-PKZ0 044946 EATON MOELLER XTPAXCLKB3 trifásica ligação commoning, por 3 PKZ0, + contacto auxiliar

B3.1/3-PKZ0

044946

EATON - MOELLER

Disponível

Envio hoje

XTPAXCLKB3 trifásica ligação commoning, por 3 PKZ0, + contacto auxiliar

Mais detalhes


Disjuntor Do Motor

Motor Protective Circuit Breakers PKZ - EATON - MOELLER

Motor-protective circuit-breakers PKZ (Accessories) - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$8.10
16+$6.93
31+$6.77
46+$6.69
61+$6.63
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme


Main conducting paths
Rated impulse withstand voltage
UimpV AC6000
Overvoltage category/pollution degree
  III/3
Rated operational voltage
UeV AC690
Rated uninterrupted current
IuA63
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA63
Heat dissipation per pole, current-dependent
PvidW1.7
Equipment heat dissipation, current-dependent
PvidW5.1
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C55
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Phase busbar (EC000215)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Phase busbar ([email protected] [ACN992008])
Number of phases
  3
Number of poles
  3
Suitable for number of devices
  3
Pitch dimensions
 mm54
Cross section
 mm²0
Length
 mm153
Number of modular spacings
  0
Rated permanent current Iu
 A63
Type of electric connection
  Fork
Insulated
  Yes
Rated surge voltage
 kV6
Conditioned rated short-circuit current Iq
 kA0
Max. rated operation voltage Ue
 V690
Rated short-time withstand current lcw
 kA0
Suitable for devices with N-busbar
  No
Suitable for devices with auxiliary switch
  No
Approvals
Product Standards  UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking
UL File No.  E36332
UL Category Control No.  NLRV
CSA File No.  98494
CSA Class No.  3211-06
North America Certification  UL listed, CSA certified
Specially designed for North America  No
Dimensions
>>
