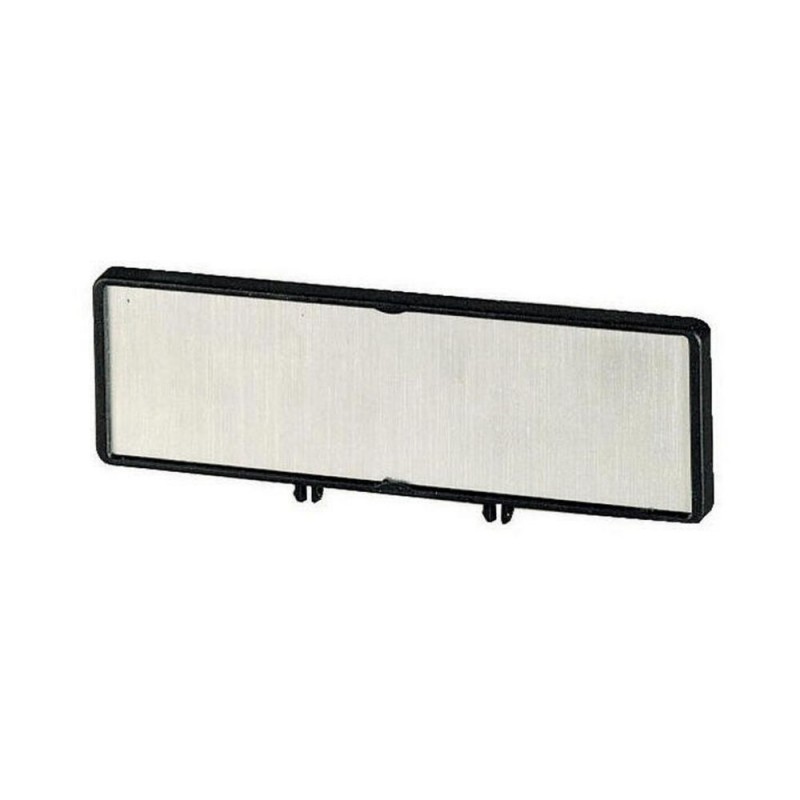

ZFS-LS-NZM 104829 EATON MOELLER placa indicando Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

ZFS-LS-NZM 104829 EATON MOELLER placa indicando

ZFS-LS-NZM

104829

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

placa indicando

Mais detalhes


Disjuntores

Circuit-breakers NZM and LZM (Accessories) - EATON - MOELLER

Circuit-breakers NZM and LZM (Accessories) - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$4.32
27+$3.47
53+$3.38
79+$3.33
105+$3.30
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Accessories
Accessories
  External warning plate
Standard/Approval
  UL/CSA, IEC
Construction size
  NZM1/2/3/4
Description


Switch function label

Function
  Circuit-breaker symbol
For use with
  NZM1(-4), PN1(-4), N(S)1(-4)
NZM2(-4), PN2(-4), N(S)2(-4)
NZM3(-4), PN3(-4), N(S)3(-4)
NZM4(-4), N(S)4(-4)
Function
  Circuit-breaker symbol
N-terminal
  Circuit-breaker symbol
Notes

A bilingual external warning plate/designation label in German/English is already included in the main switch assembly kit.

Design verification as per IEC/EN 61439(Show features)(Hide features)
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Auxiliary material (EG000060) / Warning/signing plate (EC001777)
Occupational safety, accident prevention / Sign, mandatory sign, traffic sign / Sign / Warning sign ([email protected] [AAE738009])
Material
  Plastic
Material quality
  -
With alert-/information symbol
  Yes
With alert-/information text
  No
Width
 mm27
Height
 mm5
Diameter
 mm0
Thickness
 mm5
Self adhesive mounting
  No
After glowing
  No
Colour
  Silver

Datasheet - PDF
