KS150-NZM7 059777 EATON MOELLER 185mm2 terminal do cabo Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

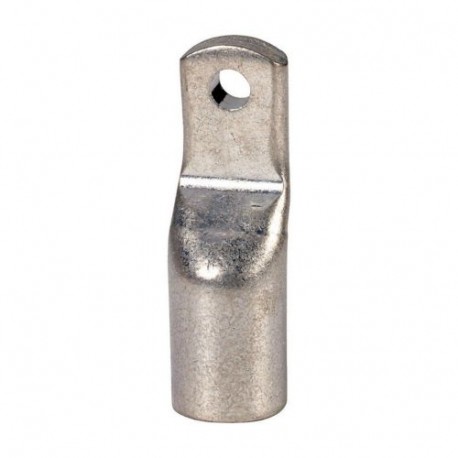

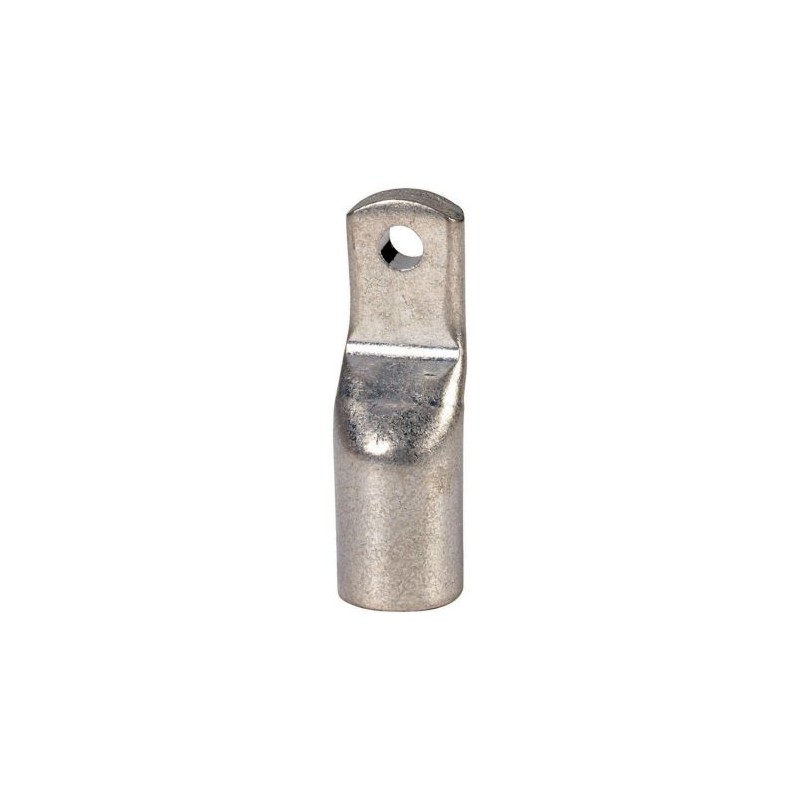

KS150-NZM7 059777 EATON MOELLER 185mm2 terminal do cabo

KS150-NZM7

059777

EATON - MOELLER

Disponível

Envio hoje

185mm2 terminal do cabo

Mais detalhes


Disjuntores

Circuit-breakers NZM and LZM (Accessories) - EATON - MOELLER

Circuit-breakers NZM and LZM (Accessories) - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$8.63
18+$7.30
35+$7.13
52+$7.04
70+$6.98
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Number of conductors
  3/4 pole
Accessories
  Cable lugs
For use with
  NZM2(-4), PN2(-4), N2(-4)
Description
  Not UL/CSA approved.
Narrow tubular cable lugs for switchgear connections.
When using without cover NZM2 (-4)-XKSA, the cable lug must be insulated.
Terminal capacity
 mm2150
Instructions For detailed specifications regarding suitable types of conductors and the required crimping tool: See Heading Engineering.
Technical data
Engineering
Engineering notes


In order to crimp cable lugs when using stranded conductors, e.g., VDE 0295 Class 2 and rounded stranded sector-shaped conductors, you will need a Klauke K22, HK60/22, or EK22 crimping tool with the following crimping dies:

  • R22/95 for 95 mm2
  • R22/120 for 120 mm2
  • R22/150 for 150 mm2
  • R22/185 for 185 mm2
  • R22/240 for 240 mm2
  • R22/300 for 300 mm2

Flexible conductors are adequate to a limited extent. They must be indent-crimped with a Klauke series 13 or series 25 crimping die.

Design verification as per IEC/EN 61439(Show features)(Hide features)
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Installation, isolation and connection material (EG000047) / Crimp cable lug for copper conductors according to DIN 46235 (EC001050)
Electric engineering, automation, process control engineering / Electrical insulation and connecting material / Lug, conductor sleeve, connector / Crimp cable lug for copper conductors ([email protected] [AKN512010])
Bolt dimension metric (M..)
  0
Connecting angle
  Straight
Number of fixing holes
  1
Code digit
  0
Nominal cross section
 mm²150
Surface protection
  Tinned
Dimensions
IL01219049Z (AWA1230-2046) Cable lugs-NZM2

>>
