Caratteristiche ed info per ordinare Ordering information
Points
Type
Rated voltage
Rated current
Remarks
Connection type
Order code1
16
AC or DC input
120 VAC or VDC
10 mA
-
M3
CS1W-IA111
16
AC input
240 VAC
10 mA
-
M3
CS1W-IA211
16
DC input
24 VDC
7 mA
-
M3
CS1W-ID211
16
DC input
24 VDC
7 mA
Inputs start interrupt tasks in PLC program
M3
CS1W-INT01
16
DC input
24 VDC
7 mA
Latches pulses down to 50 µs pulse width
M3
CS1W-IDP01
32
DC input
24 VDC
6 mA
-
1 × 40 pt Fujitsu
CS1W-ID231
64
DC input
24 VDC
6 mA
-
2 × 40 pt Fujitsu
CS1W-ID261
96
DC input
24 VDC
5 mA
-
2 × 56 pt Fujitsu
CS1W-ID291
8
Triac output
250 VAC
1.2 A
-
M3
CS1W-OA201
16
Triac output
250 VAC
0.5 A
-
M3
CS1W-OA211
8
Relay output
250 VAC
2.0 A
-
M3
CS1W-OC201
16
Relay output
250 VAC
2.0 A
-
M3
CS1W-OC211
16
DC output (sink)
12 to 24 VDC
0.5 A
-
M3
CS1W-OD211
16
DC output (source)
24 VDC
0.5 A
With short-circuit protection, alarm
M3
CS1W-OD212
32
DC output (sink)
12 to 24 VDC
0.5 A
-
1 × 40 pt Fujitsu
CS1W-OD231
32
DC output (source)
24 VDC
0.5 A
With short-circuit protection, alarm
1 × 40 pt Fujitsu
CS1W-OD232
64
DC output (sink)
12 to 24 VDC
0.3 A
-
2 × 40 pt Fujitsu
CS1W-OD261

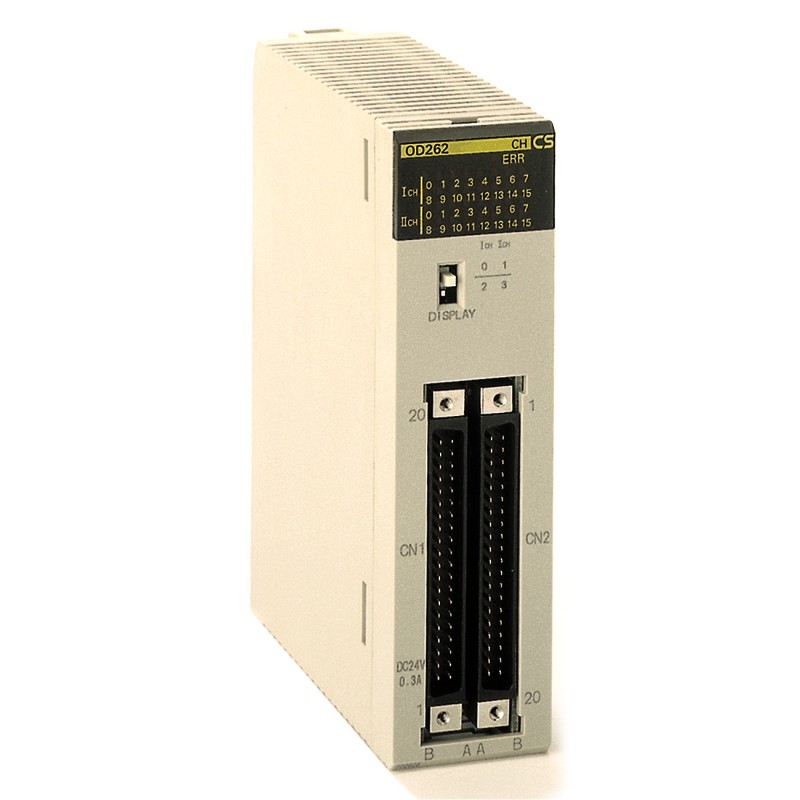

64
DC output (source)
24 VDC
0.3 A
With short-circuit protection, alarm
2 × 40 pt Fujitsu
CS1W-OD262
96
DC output (sink)
12 to 24 VDC
0.1 A
-
2 × 56 pt Fujitsu
CS1W-OD291
96
DC output (source)
24 VDC
0.1 A
-
2 × 56 pt Fujitsu
CS1W-OD292
32+32
DC output (sink)
12 to 24 VDC
0.3 A
-
2 × 40 pt Fujitsu
CS1W-MD261
32+32
DC in+out (source)
24 VDC
0.3 A
With short-circuit protection, alarm
2 × 40 pt Fujitsu
CS1W-MD262
48+48
DC output (sink)
12 to 24 VDC
0.1 A
-
2 × 56 pt Fujitsu
CS1W-MD291
48+48
DC in+out (source)
12 to 24 VDC
0.1 A
-
2 × 56 pt Fujitsu
CS1W-MD292
Note: All Digital I/O units are designated as Basic I/O units.
Accessories Description
Connection type
Order code
Connection cable between I/O terminal block and I/O unit with 40-pt Fujitsu connector ( _ _ _ = length in cm)
Fujitsu (40pt)
XW2Z-___B
I/O terminal block for input unit with 40-pt Fujitsu connector
Push-in
XW2R-P34G-C1
I/O terminal block for output unit with 40-pt Fujitsu connector
Push-in
XW2R-P34G-C3
I/O terminal block for input unit with 40-pt Fujitsu connector
Clamp
XW2R-E34G-C1
I/O terminal block for output unit with 40-pt Fujitsu connector
Clamp
XW2R-E34G-C3
I/O terminal block for input unit with 40-pt Fujitsu connector
M3 Screws
XW2R-J34G-C1
I/O terminal block for output unit with 40-pt Fujitsu connector
M3 Screws
XW2R-J34G-C3
Note: For I/O Cables and Terminal Blocks, see page
1. C200H I/O units can also be mounted, except on CS1D systems.
Accessori I/O cables and terminal blocks Ordering information
I/O cables Shape
PLC connection
Terminal connection
Length in cm
Wiring
Order code
30
50
75
100
150
200
250
300
400
500
FCN24
MIL20
-
⬛
-
⬛
-
⬛
-
⬛
-
-
Straight
XW2Z-[....]AD-L
Open ends
-
-
-
⬛
-
⬛
-
⬛
-
-
n. a.
XW2Z-[....]AL-L
FCN40
MIL20 × 2
-
-
-
⬛
⬛
⬛
-
⬛
⬛
⬛
Straight
XW2Z-[....]BH-L01
Reverse
XW2Z-[....]BH-L02
MIL40
-
⬛
-
⬛
⬛
⬛
-
⬛
-
⬛
Straight
XW2Z-[....]BF-L
Open ends
-
-
-
⬛
-
⬛
-
⬛
-
⬛
n. a.
XW2Z-[....]BN-L
FCN56
MIL20 × 3
-
-
-
-
⬛
⬛
-
⬛
-
-
Straight
XW2Z-[....]CJ-L01
Reverse
XW2Z-[....]CJ-L02
MIL20 + MIL40
-
-
-
-
⬛
⬛
-
-
-
-
Straight
XW2Z-[....]CK-L01
Reverse
XW2Z-[....]CK-L02
MIL60
-
-
-
⬛
-
⬛
-
⬛
-
-
Straight
XW2Z-[....]CG-L
MIL20
MIL20
-
⬛
-
⬛
-
⬛
-
-
-
Straight
XW2Z-[....]DD-L
Open ends
-
⬛
-
⬛
⬛
⬛
-
⬛
-
⬛
n. a.
XW2Z-[....]DL-L
Fork terminals
-
⬛
-
⬛
⬛
⬛
-
⬛
-
⬛
n. a.
XW2Z-[....]DM-L
MIL34
MIL34
-
-
-
-
-
⬛
-
-
-
-
Straight
XW2Z-[....]EE-L
MIL40
MIL20 × 2
-
-
⬛
⬛
-
⬛
-
⬛
-
⬛
Reverse
XW2Z-[....]FH-L01
Straight
XW2Z-[....]FH-L02
MIL40
⬛
⬛
-
⬛
⬛
⬛
-
⬛
-
⬛
Straight
XW2Z-[....]FF-L
Open ends
-
-
-
⬛
⬛
⬛
⬛
⬛
-
⬛
n. a.
XW2Z-[....]FN-L
Note: For [....] fill in the 4-digit length in cm
I/O cables XW2Z XW2Z-_AD-L PLC connection
Terminal connection
Wiring
Length in cm (L)
Order code
30
50
75
100
150
200
250
300
400
500
24-pin FCN Connector
20-pin MIL Connector
Straight
-
⬛
-
-
-
-
-
-
-
-
XW2Z-0050AD-L
-
-
-
⬛
-
-
-
-
-
-
XW2Z-0100AD-L
-
-
-
-
-
⬛
-
-
-
-
XW2Z-0200AD-L
-
-
-
-
-
-
-
⬛
-
-
XW2Z-0300AD-L
XW2Z-_AL-L PLC connection
Terminal connection
Wiring
Length in cm (L)
Order code
30
50
75
100
150
200
250
300
400
500
24-pin FCN
Loose Wires
Straight
-
-
-
⬛
-
-
-
-
-
-
XW2Z-0100AL-L
-
-
-
-
-
⬛
-
-
-
-
XW2Z-0200AL-L
-
-
-
-
-
-
-
⬛
-
-
XW2Z-0300AL-L
XW2Z-_BH-L01 PLC connection
Terminal connection
Wiring
Length in cm (L1)
Length in cm (L2)
Order code
100
150
200
300
400
500
75
125
175
275
375
475
40-pin FCN
Two 20-pin MIL
Straight
⬛
-
-
-
-
-
⬛
-
-
-
-
-
XW2Z-0100BH-L01
-
⬛
-
-
-
-
-
⬛
-
-
-
-
XW2Z-0150BH-L01
-
-
⬛
-
-
-
-
-
⬛
-
-
-
XW2Z-0200BH-L01
-
-
-
⬛
-
-
-
-
-
⬛
-
-
XW2Z-0300BH-L01
-
-
-
-
⬛
-
-
-
-
-
⬛
-
XW2Z-0400BH-L01
-
-
-
-
-
⬛
-
-
-
-
-
⬛
XW2Z-0500BH-L01
XW2Z-_BH-L02 PLC connection
Terminal connection
Wiring
Length in cm (L1)
Length in cm (L2)
Order code
100
150
200
300
400
500
75
125
175
275
375
475
40-pin FCN
Two 20-pin MIL
Reverse
⬛
-
-
-
-
-
⬛
-
-
-
-
-
XW2Z-0100BH-L02
-
⬛
-
-
-
-
-
⬛
-
-
-
-
XW2Z-0150BH-L02
-
-
⬛
-
-
-
-
-
⬛
-
-
-
XW2Z-0200BH-L02
-
-
-
⬛
-
-
-
-
-
⬛
-
-
XW2Z-0300BH-L02
-
-
-
-
⬛
-
-
-
-
-
⬛
-
XW2Z-0400BH-L02
-
-
-
-
-
⬛
-
-
-
-
-
⬛
XW2Z-0500BH-L02
XW2Z-_BF-L PLC connection
Terminal connection
Wiring
Length in cm (L)
Order code
30
50
75
100
150
200
250
300
400
500
40-pin FCN
40-pin MIL
Straight
-
⬛
-
-
-
-
-
-
-
-
XW2Z-0050BF-L
-
-
-
⬛
-
-
-
-
-
-
XW2Z-0100BF-L
-
-
-
-
⬛
-
-
-
-
-
XW2Z-0150BF-L
-
-
-
-
-
⬛
-
-
-
-
XW2Z-0200BF-L
-
-
-
-
-
-
-
⬛
-
-
XW2Z-0300BF-L
-
-
-
-
-
-
-
-
-
⬛
XW2Z-0500BF-L
XW2Z-_BN-L PLC connection
Terminal connection
Wiring
Length in cm (L)
Order code
30
