> >>DILM32-XSPVL48 281222 XTCEXVSLCW ELECTRIC Circuito varistore, +LED, 24-48VAC, per DILM17-32
Prodotto precedente Prodotto successivo

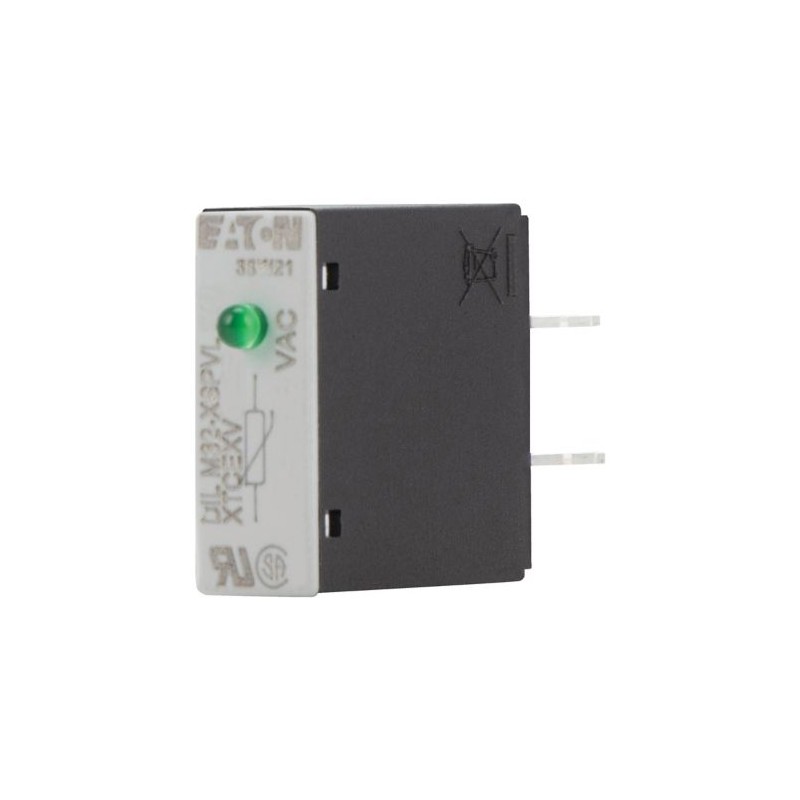

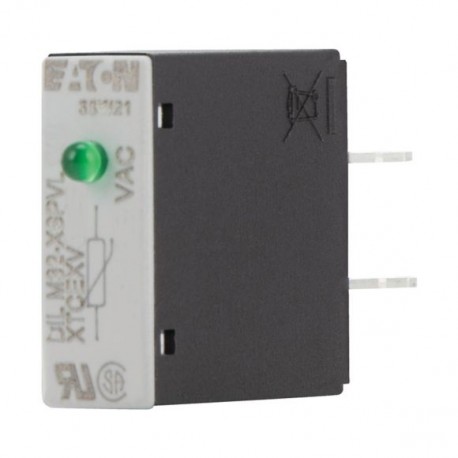

DILM32-XSPVL48 281222 XTCEXVSLCW EATON ELECTRIC Circuito varistore, +LED, 24-48VAC, per DILM17-32 Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

DILM32-XSPVL48 281222 XTCEXVSLCW EATON ELECTRIC Circuito varistore, +LED, 24-48VAC, per DILM17-32

DILM32-XSPVL48

281222

XTCEXVSLCW

EATON-MOELLER

10

Circuito varistore, +LED, 24-48VAC, per DILM17-32

Modulo soppressore varistore con LED per contattori DILM17... 38 24-48 V CA

Eaton Moeller® series DILM Varistor suppressor circuit, 24 - 48 AC V, For use with: DILM17 - DILM32, DILK12 - DILK25, DILL…, DILMP32 - DILMP45 DILM32-XSPVL48

Maggiori dettagli


apparecchi elettrici a bassa tensione > Modulo di protezione contro le sovratensioni

Accessori KDIL

* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $126.51
Prezzo unitario: $12.65

Quantità Prezzo
10+$12.65
20+$11.78
*Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series DILM varistor suppressor circuit
Catalog Number
281222
EAN
4015082812225
Product Length/Depth
45 mm
Product Height
25 mm
Product Width
9 mm
Product Weight
0.006 kg
Certifications
CE
CSA
UL 508
CSA Class No.: 3211-07
UL File No.: E29184
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR2, NKCR8
CSA File No.: 256465
IEC/EN 60947-4-1
UL Recognized
Catalog Notes
With DC operated contactors and with DILM115 and DILM150 the suppressor is integrated.
Model Code
DILM32-XSPVL48

Caratteristiche e Funzioni

Functions
Varistor (voltage-sensitive resistor)
Fitted with:
LED indication

Informazioni generali

Product category
Accessories
Used with
DILL… and DILM32-XSPVL48
Voltage type
AC

Condizioni ambientali e climatiche

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature - max
60 °C

Sistema elettromagnetico (bobina)

Rated control supply voltage (Us) at AC, 50 Hz - min
24 V
Rated control supply voltage (Us) at AC, 50 Hz - max
48 V
Rated control supply voltage (Us) at AC, 60 Hz - min
24 V
Rated control supply voltage (Us) at AC, 60 Hz - max
48 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V

Verifica di progetto

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 34 Mbytes
DILM32-XSPVL48 XTCEXVSLCW 281222 FR_104440.pdf 2 Mbytes DILM32-XSPVL48 XTCEXVSLCW 281222 FR_104440.pdf
