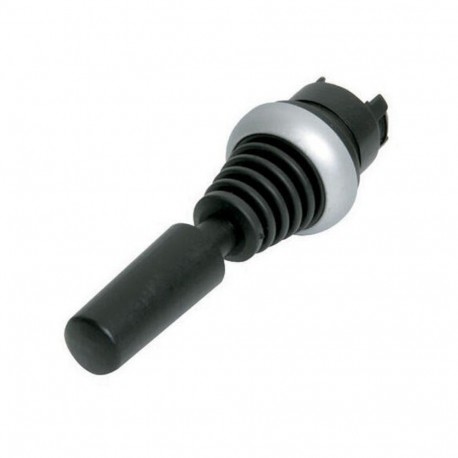

M22-WJ4 279417 M22-WJ4Q EATON ELECTRIC Joystick 4 posizioni, ad impulso
M22-WJ4
279417
M22-WJ4Q
EATON-MOELLER
Joystick 4 posizioni, ad impulso
Joystick Return 4 Posizioni Anello in Titanio
Eaton Moeller® series M22 Joystick, with one operating point per operating direction, With plastic shaft, 4 positions, Bezel: titanium, momentary, in every position
apparecchi elettrici a bassa tensione > interruttore di comando a joystick
Ausili di controllo e segnalazione
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Comprati di solito insieme
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series M22 Joystick
Catalog Number
279417
EAN
4015082794170
Product Length/Depth
100 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.028 kg
Compliances
CE Marked
Certifications
UL 508
IEC 60947-5
EN 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
VDE
UL File No.: E29184
UL Category Control No.: NKCR
IEC/EN 60947-5
UL
VDE 0660
CE
CSA File No.: 012528
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
IEC/EN 60947
CSA-C22.2 No. 14-05
CSA
IEC 60947-5
EN 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
VDE
UL File No.: E29184
UL Category Control No.: NKCR
IEC/EN 60947-5
UL
VDE 0660
CE
CSA File No.: 012528
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
IEC/EN 60947
CSA-C22.2 No. 14-05
CSA
Model Code
M22-WJ4
Features & Functions
Bezel color
Titanium
Bezel material
Plastic
Fitted with:
Front ring
Filament bulb (24 V)
Plastic shaft
Retraction in 0-position
Filament bulb (24 V)
Plastic shaft
Retraction in 0-position
General
Accessories
Plastic shaft
Degree of protection
IP66
NEMA 4X, 13
NEMA 4X, 13
Lifespan, mechanical
100,000 Operations
Opening diameter
22.5 mm
Operating frequency
2000 Operations/h
Product Category
RMQ-Titan
Type
Joystick
Ambient conditions, mechanical
Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Rated operational current (Ie) at AC-21, 400 V, 415 V
0 A
Communication
Connection to SmartWire-DT
With SWD-RMQ connections
Yes
Yes
Actuator
Actuating force
5 N
Actuator function
In every position
Momentary
Momentary
Number of actuation directions
4
Contacts
Force for positive opening - min
0 N
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
