Energy Management
Energy Management Software

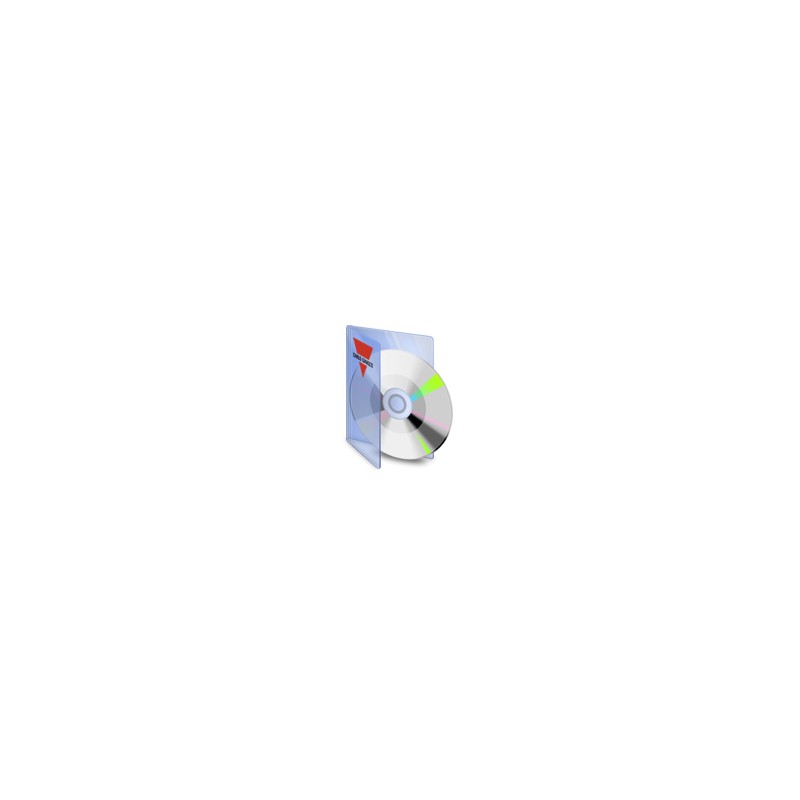

Type PQTSoft Network
• Main Menu Description
• Management of up to 255 PQT90 in a local RS485 network connected to a PC
• Management of up to 100 single remote PQT90’s
• Management of up to 25000 PQT90’s in max. 100
remote RS485 networks composed of 250 instru-
ments each.
• Monitoring and control of all the electrical variables
• Event stamping
• Manual and automatic download of the values
logged in the 2 Mb memory
Product Description
How to order PQTSOFTNETWORK
Software in English and other languages for the data downloading from the mem- ory of PQT90. Personalized SMS can be associated to the set alarms. Management of a digital or analogue com-
munication modem. The soft- ware can be used with the most common operating sys- tems such as:
Windows
95/98/98SE/2000/NT/XP.
Model (software only)
Model (software and cables to be used by modem/GSM)
Important Note
PQTSOFTNETWORK-KIT
The correct data transfer by means of RS485 (PQT90) and RS232 (PC) is to be made by means of our serial communi- cation adaptor RS485/RS232 model SIUPC2.
General Characteristics
Configuration menu
PQTSoft Network
Setup 71
Local single PQT connected to
RS232 the PC by RS232 serial port.
Operating mode
Three operation modes can be selected:
- local RS485
- management of a communication modem for each single instrument (data download)
- management of a communication modem from the
SIU-PC
... MAX255
local network (RS485 communication, data download).
RS232
RS485
RS485
Maximum 255 PQT’s in an RS485 local network connected to the PC by RS232 thanks to the RS485-RS232 SIU-PC convert- er.
MODEM MODEM
Data logging
In pre-formatted XLS files (excel data base). The instan- taneous variables, energies, gas, and water are saved
RS232
Telephone network RS232
separately in specific files.
... MAX100
Max. 100 remote single PQT’s (PQTSoft can manage max.
100 phone numbers to be chosen among those listed in the phone book) connected to the PC by means of a telephone network thanks to an analogue modem (make sure that the “nullmodem” connector is always connected between PQT and modem).
MODEM MODEM SIU-PC
Data download
Manual or automatic download on regular basis. Modem communication.
Phonebook management (storage of 100 numbers).
RS232
Telephone network RS232
... MAX255
RS485
Each number can be associated to a modem corre-
... MAX100
... MAX255
sponding either to a single instrument or to a network
Max 25,000 PQT’s in max 100 remote RS485 networks
(each made of 250 instruments) connected to the PC by means of a telephone network and RS485-RS232 SIU-PC converter.
of instruments. Each network can manage up to 255 local instruments.
Communication setup 73
