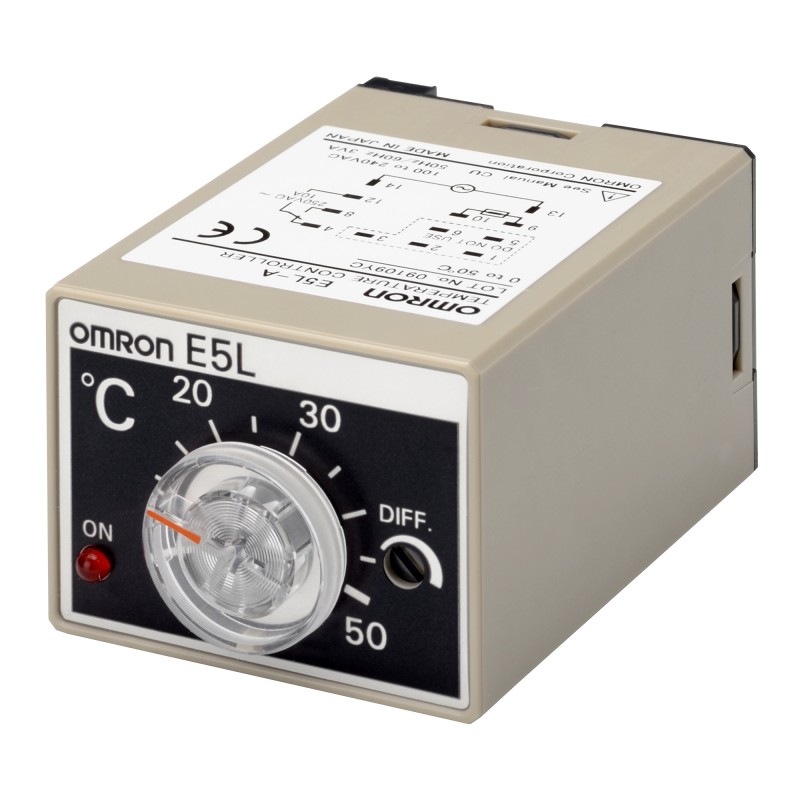

E5L-A 0-100 E5LA5002G 277251 OMRON Thermomètre analogique 0ºC à 100ºC

E5L-A_

35 × 45 × 64 mm

Plug-in

Analog

ON/OFF operation

Relay

−30 to 20°C

E5L-A-30-20

0 to 50°C

E5L-A-0-50

0 to 100°C

E5L-A-0-100

100 to 200°C

E5L-A-100-200

E5L-C_

35 × 40 × 64 mm

Plug-in

Digital

ON/OFF operation

Relay

−30 to 20°C

E5L-C-30-20

0 to 100°C

E5L-C-0-100

100 to 200°C

E5L-C-100-200

Front-connecting Socket

PTF14A

PTF14A-E

Power supply voltage

100 to 240 VAC, 50/60 Hz

Operating voltage range

85% to 110% of the rated supply voltage

Power consumption

Approx. 3 VA

Inputs

Element-interchangeable thermistor

Control method

ON/OFF control

Control output

SPDT contacts, 250 VAC, 10 A, cosδ= 1 (resistive load)

SPST-NO contacts, 250 VAC, 10 A, cosδ= 1 (resistive load)

Setting method

Analog setting

Digital settings using keys on front panel

Indication method

No display

LCD digital display (character height: 12 mm)

Other functions

−

Setting protection (key protection)
Input shift
Direct/reverse operation

Indication accuracy

−

±(1°C + 1 digit) max.1

Setting accuracy

−

±(1°C + 1 digit) max.1

Hysteresis

−30 to 20°C models: Approx. 0.5 to 2.5°C (variable)
0 to 50°C models: Approx. 0.5 to 4°C (variable)
0 to 100°C models: Approx. 0.5 to 4°C (variable)
100 to 200°C models: Approx. 0.7 to 4°C (variable)

1 to 9°C (in increments of 1°C)

Repeat accuracy

1% FS max

−

Minimum scale (standard scale)

−30 to 20°C models and 0 to 50°C models: 5°C
0 to 100°C models and 100 to 200°C models: 10°C

−

Influence of temperature

−

±([1% of PV or 2°C, whichever is greater]+ 1 digit) max.

Influence of voltage

−

Sampling period

−

2 s

Insulation resistance

100 MΩmax. (at 500 VDC)

Dielectric strength

2,300 VAC, 50/60 Hz for 1 min (between charged terminals and uncharged metallic parts, between power supply terminals and input terminals, between power supply terminals and output terminals, and between input terminals and output terminals)

Vibration (malfunction)

Frequency of 10 to 55 Hz, 0.5-mm double amplitude for 10 min each in X, Y, and Z directions

Vibration (destruction)

Frequency of 10 to 55 Hz, 0.75-mm double amplitude for 2 h each in X, Y, and Z directions

Shock (malfunction)

147 m/s², 3 times each in 6 directions

100 m/s², 3 times each in 6 directions

Shock (destruction)

294 m/s², 3 times each in 6 directions

Electrical life expectancy (control output relay)

100,000 operations min (at maximum applicable load)

Memory protection

−

Non-volatile memory (100,000 write operations)

Weight (Thermostat)

Approx. 80 g (Thermostat only)

Degree of protection

Front panel: IP40, Terminals: IP00

Approved standards

−

Conformed standards

EN 61010-1 (IEC 61010-1), Pollution Degree 2, Overvoltage Category II

EMC Directives

EMI: EN61326-1
Radiated EMI: EN55011 Group 1 Class A
Conducted EMI: EN55011 Group 1 Class A
EMS: EN61326-1
Electrostatic discharge immunity: EN61000-4-2
Electromagnetic field strength immunity: EN61000-4-3
Burst noise immunity: EN61000-4-4
Conducted disturbance immunity: EN61000-4-6
Surge immunity: EN61000-4-5
Voltage dip and power interruption immunity: EN61000-4-11

PTF14A

78.5×45.5×30.0

PTF14A-E

78.5×45.5×33.0
