- Réutilisation des projets des NS standard
- 10 touches de fonction, dont 4 à câbler directement sur les entrées de l'API
- Interrupteur d'arrêt d'urgence à l'avant et interrupteur d'activation à l'arrière de l'unité
- Excellente protection contre l'eau, IP65
- Interfaces CompactFlash, série et USB
Caractéristiques et références
Ordering information
Type | Order code |
---|

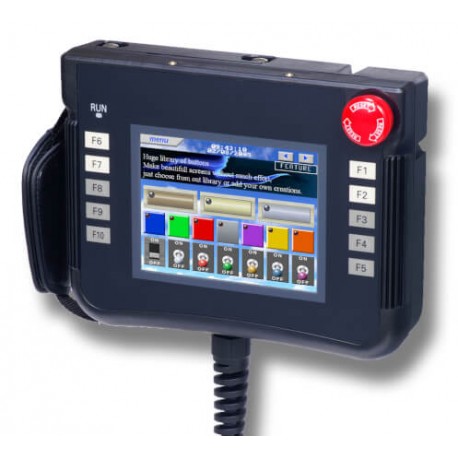

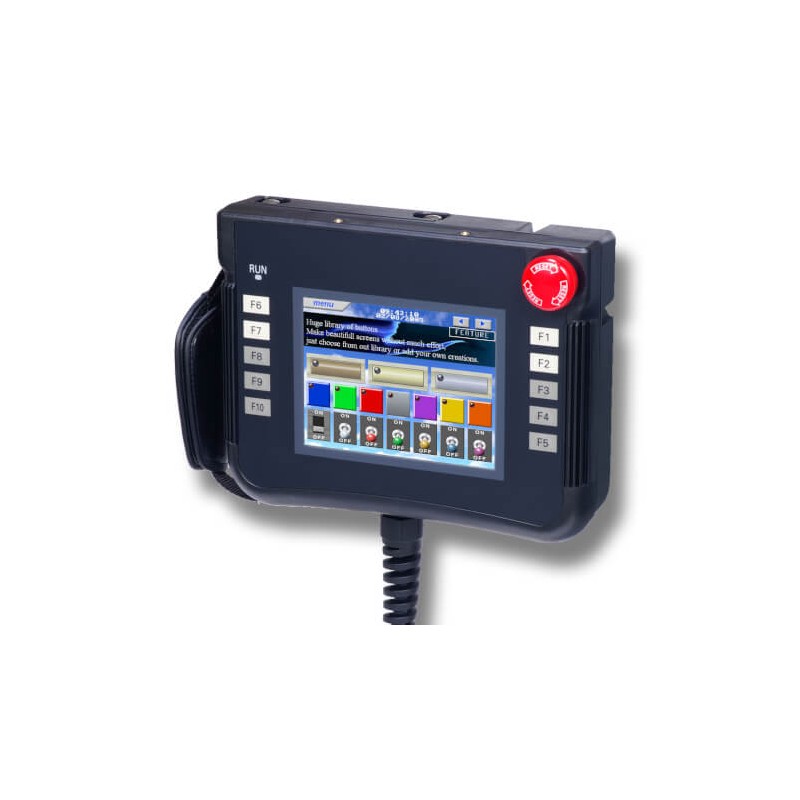

NSH5 | TFT, 5.7", 320×240 pixels | Black | NSH5-SQR10B-V2 |
Accessories
Type | Order code |
---|
Bracket NS handheld protecting emergency button from accidental activation | NSH5-ATT01 |
Bracket NS handheld for wall mounting | NSH5-ATT02 |
Cable NS handheld, RS-422, 10m UL | NSH5-422UL-10M |
Cable NS handheld, RS-232, 10m UL | NSH5-232UL-10M |
Cable NS handheld, RS-232, 3m UL | NSH5-232UL-3M |
Specifications
Memory card interface | 1 slot ATA Compact Flash card |
Serial (COM1) | 1×RS-232/RS-422A |
USB Slave | For programming |
Line voltage | 24 VDC ±15% |
Power consumption | 10 W max. |
Battery | CJ1W-BAT01 |
Battery lifetime | 5 years (at 25°C) |
Enclosure rating | IP651 |
Obtained standards | UL 1604 Class 1 Diff. 2, cUL, CE, NEMA equivalent |
Operating environment | No corrosive gases |
Noise immunity | Conforming to IEC 61000-4-4: 2 kV (power supply line) |
Ambient operating temperature | 0 to 40°C |
Ambient operating humidity | 35% to 85% max. (with no condensation) |
Vibration resistance (during operation) | 10 to 57 Hz with amplitude of 0.075 mm, 57 to 150 Hz with acceleration of 9.8 m/s2 three minutes each in X, Y, and Z directions |
Shock resistance (during operation) | 147 m/s2 three times each in X, Y, and Z directions |
Drop test1 | Dropped from 1 m. Conforming to JIS B 3502/IEC61131-2 |
1.see manual for details.
Accessoires
Ordering information
Type | Description | Order code |
---|
Cable | Serial programming cable | XW2Z-S002 |
USB programming cable, 2 m | CP1W-CN221 |
PT-to-PLC Connecting Cable | PT connection: 9 pins PLC connection: 9 pins | Length: 2 m | XW2Z-200T |
Length: 5 m | XW2Z-500T |
Accessories | Video input | Inputs: 4 channels NTSC / PAL | NS-CA001 |
Inputs: 2 channels NTSC / PAL, 1 channel RGB | NS-CA002 |
Cable to connect NS-CA00_ to Video console unit | F150-VKP (2 m) |
F150-VKP (5 m) |
Controller link interface unit | NS-CLK21 |
RS-422A/485 adapter (50 m) | CJ1W-CIF11 |
RS-422A adapter (500 m) | NS-AL002 |
Anti-reflection sheets (5 sheets) | NS15 | NS15-KBA04 |
NS12/10 | NS12-KBA04 |
NS8 | NS7-KBA04 |
NS5 | NT30-KBA04 |
Anti-reflection protective covers (5 pack) | NS12/10 | NS12-KBA05 |
NS8 | NS7-KBA05 |
NS5 | NT31C-KBA05 |
Transparent protective covers (5 pack) | NS15 (1 cover) | NS15-KBA05N |
NS12/10 | NS12-KBA05N |
NS8 | NS7-KBA05N |
NS5 | NT31C-KBA05N |
Chemical-resistant cover (1 cover) | NS5 | NT30-KBA01 |
Attachment adapter | (NT625C/631/631C series to NS12 series) | NS12-ATT01 |
(NT625C/631/631C series to NS12 series) Black | NS12-ATT01B |
(NT620S/620C/600S series to NS8 series) | NS8-ATT01 |
(NT600M/600G/610G/612G series to NS8 series) | NS8-ATT02 |
Memory card | 128 MB | HMC-EF183 |
256 MB | HMC-EF283 |
512 MB | HMC-EF583 |
Memory card adapter for PC | HMC-AP001 |
Battery | CJ1W-BAT01 |
