G6B-4BND 24VDC G6B41037M 156434 OMRON Base + 4 relais G6B

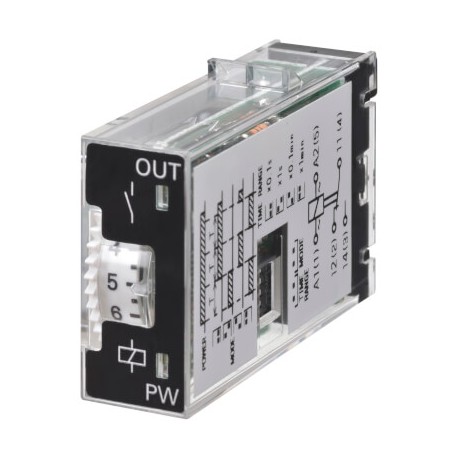

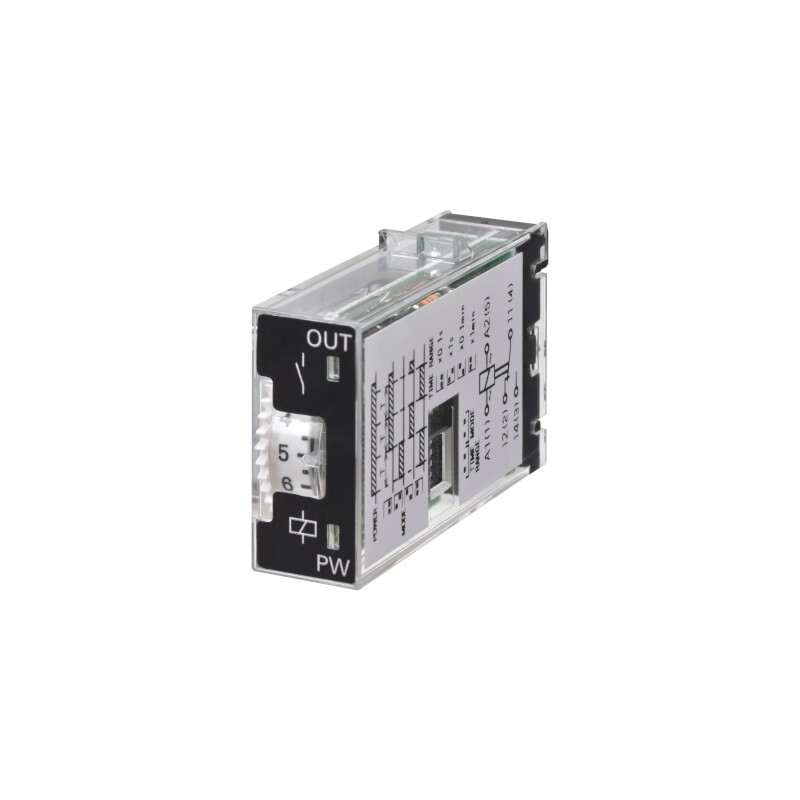

On-delay, Interval,
Flicker OFF-start, Flicker ON Start

SPDT

24 VAC

H3RN-1-B AC24

H3RN-11-B AC24

24 VDC

H3RN-1-B DC24

H3RN-11-B DC24

12 VDC

H3RN-1-B DC12

H3RN-11-B DC12

DPST-NO

24 VAC

H3RN-2-B AC24

H3RN-21-B AC24

24 VDC

H3RN-2-B DC24

H3RN-21-B DC24

12 VDC

H3RN-2-B DC12

H3RN-21-B DC12

Screwless socket with Push-in plus
technology

H3RN-1-B/-11-B

P2RF-05-PU

H3RN-2-B/-21-B

P2RF-08-PU

Time ranges

0.1 s to 10 min (1 s, 10 s, 1 min, or 10 min max. selectable)

0.1 min to 10 h (1 min, 10 min, 1 h, or 10 h max. selectable)

Rated supply voltage1

24 VAC (50/60 Hz); 12, 24 VDC

Pin type

Plug-in

Operating mode

ON-delay, interval, flicker OFF-start, or flicker-ON start selectable by DIP switch

Operating voltage range

85% to 110% of rated supply voltage (12 VDC: 90% to 110% of rated supply voltage)2

Reset voltage

10% max. of rated supply voltage

Control outputs

3 A at 250 VAC, resistive load (cosφ = 1) (G6B-2_14P-FD-US used (Contact materials: AgSnIn))
The minimum applicable load is 10 mA at 5 VDC (P reference value).

Accuracy of operating time

±1% FS max. (1 s range: ±1%±10 ms max.)

Setting error

±15% ±50 ms FS max.

Reset time

Min. power-opening time: 12, 24 VDC: 0.1 s max. (including halfway reset)
24 VAC: 0.5 s max. (including halfway reset)

Influence of voltage

±2% FS max.

Influence of temperature

±2% FS max.

Ambient temperature

Operating: −10°C to 55°C (with no icing)
Storage: −25°C to 65°C (with no icing)

Degree of protection

IP40 (Terminal screw sections are excluded.)

Size in mm (H × W × D)

31.2×12.8×47.2
