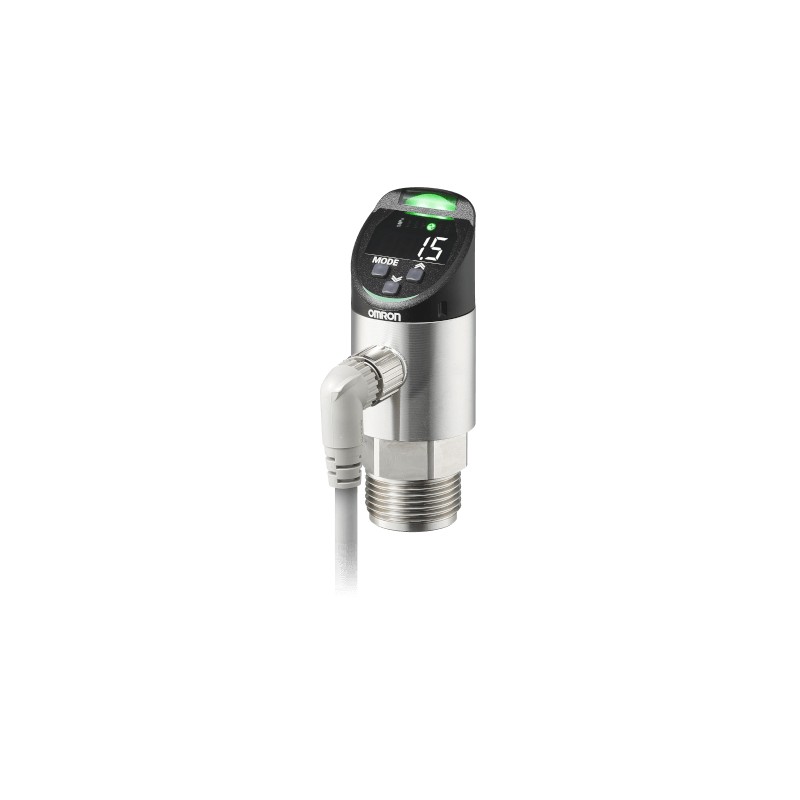

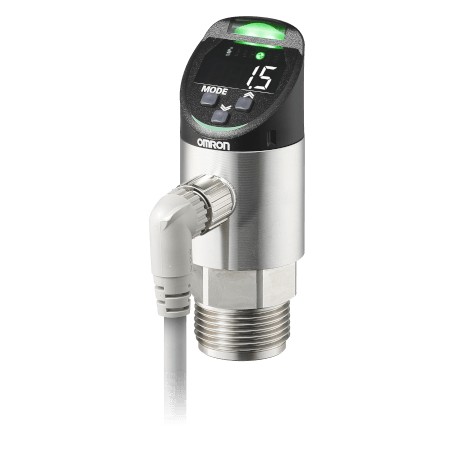

Le commutateur de pression d'Affichage 2 sorties PNP. 0-100 kpa
Afficher les sorties PNP du commutateur de pression 2. 0-100Kpa
Capteurs avancés > Capteurs pression
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par OMRON
Merci de vous intéresser à nos produits, nous espérons que le délai indiqué soit de votre convenance.
Pendant le traitement de la commande, vous pouvez sélectionner le type d'envoi qui vous convient. Aérien Express 24Hrs, Terrestres Standard 48/72Hres, etc.
Appearance | Applicable fluid 2 The applicable fluid isa liquid that do not erode the liquid contact part materials (suchas water, glycol solution, and oil). | Rated pressure range | Control output | Communication method | IO-Link baud rate | Order code |
---|---|---|---|---|---|---|
Liquid and gas | -0.1 to 1 MPa | PNP | IO-Link Analog | COM2 (38.4 kbps) | E8PC-010D-E | |
COM3 (230.4 kbps) | E8PC-010T-E | |||||
NPN | Analog | – | E8PC-010-E | |||
Liquid | 0 to 10 MPa | PNP | IO-Link Analog | COM2 (38.4 kbps) | E8PC-100D-E | |
COM3 (230.4 kbps) | E8PC-100T-E | |||||
NPN | Analog | – | E8PC-100-E | |||
0 to 40 MPa | PNP | IO-Link Analog | COM2 (38.4 kbps) | E8PC-400D-E | ||
COM3 (230.4 kbps) | E8PC-400T-E | |||||
NPN | Analog | – | E8PC-400-E |
Please contact your OMRON sales representativeregarding the IO-Link setup file (IODD file).
Itmust be selected from the adapters below.
Appearance | Type | Nominal diameter of thread 2 The nominal diameter of the thread is the size of the part shown below on the adapter. | Thread type | Materials | Order code | |
---|---|---|---|---|---|---|
Nominal diameter A | Nominal diameter B | |||||
R1/8 male | 6 A | 1/8" | R (taper thread) | SUS304 | E8PC-YA-A18 | |
R1/4 male | 8 A | 1/4" | R (taper thread) | SUS304 | E8PC-YA-A14 | |
R3/8 male | 10 A | 3/8" | R (taper thread) | SUS304 | E8PC-YA-A38 | |
G1/4 female | 8 A | 1/4" | G (parallel thread) | SUS304 | E8PC-YA-B14N | |
NPT1/8 male | 6 A | 1/8" | NPT (taper thread) | SUS304 | E8PC-YA-C18 | |
NPT1/2 male | 8 A | 1/4" | NPT (taper thread) | SUS304 | E8PC-YA-C14 |
ACable is not provided with the Sensor. It must be ordered separately.
Type | Appearance | Cable | Order code |
---|---|---|---|
Socket on one cable end | Straight | 2 m | XS5F-D421-D80-F |
5 m | XS5F-D421-G80-F | ||
L-shaped | 2 m | XS5F-D422-D80-F | |
5 m | XS5F-D422-G80-F | ||
Socket and plug on cable ends 2 Straighttype/L-shape type combinations are also available. | Straight/straight | 2 m | XS5W-D421-D81-F |
5 m | XS5W-D421-G81-F | ||
L-shaped/l-shaped | 2 m | XS5W-D422-D81-F | |
5 m | XS5W-D422-G81-F |
Refer to Sensor I/O Connector/Sensor Controlleron your OMRON website for details.
If the excessive pulsation or surgevoltage is expected, use a throttle. Install it inside the adapterand use.
Appearance | Type | Material | Order code | Installation method |
---|---|---|---|---|
For a male adapter | SUS304 | E8PC-YS | ||
For a female adapter | SUS304 | E8PC-YS-N |
Appearance | Type | Order code |
---|---|---|
For E8PC-010⬜ | E8PC-YL-1 2 Providedwith the sensor. | |
For E8PC-100⬜/-400⬜ | E8PC-YL-2 2 Providedwith the sensor. | |
Female for adapter G1/4 | E8PC-YL-3 |
Model | PNP(COM2) | E8PC-010D-E | E8PC-100D-E | E8PC-400D-E |
---|---|---|---|---|
PNP(COM3) | E8PC-010T-E | E8PC-100T-E | E8PC-400T-E | |
NPN | E8PC-010-E | E8PC-100-E | E8PC-400-E | |
Pressure monitoring 2 The pressure precision is defined based on the values measured in the ordinary temperature environment (approx. 23°C) using water at the ordinary temperature (approx. 23°C). | Rated pressure range | –0.1 to 1 MPa | 0 to 10 MPa | 0 to 40 MPa |
Display range | –0.20 to 1.10 MPa | –0.10 to 11.00 MPa | –0.10 to 44.00 MPa | |
Withstand pressure 2 Eveninstantaneous pressure fluctuation such as water hammer must bewithin the withstand pressure. If instantaneous pressure fluctuationis expected, use the throttle included in the package. | 4 MPa | 30 MPa | 50 MPa | |
Burst pressure | 8 MPa | 60 MPa | 80 MPa | |
Display resolution | 0.001 MPa | 0.01 MPa | 0.01 MPa | |
Applicable fluid temperature 2 Ifthe pipe temperature exceeds 70°C, do not contact any cables withthe pipe. | –20 to +100°C (no icing or condensation) | |||
Pressure response time 2 Themaximum actual response time has error of 1 ms when the set responsetime is 3 to 10 ms, 5 ms when it is 11 to 100 ms, and +5% when itis 101 ms or more. | Control output: Select 3 to 6000ms Analog output: Set value + 2 ms (90% response) | |||
Pressure monitoring precision | ±1.0% of F.S. or less | |||
Pressure repeatability 2 Thepressure repeatability is the error of the detection point whenpressure is applied repeatedly in the ordinary temperature environment(approx. 23°C) using water at the ordinary temperature (approx.23°C) in the rated pressure range. | ±0.3% of F.S. or less | |||
Ambient temperature characteristics 2 Theambient temperature characteristics are prescribed based on thevalue measured using oil as applying a pressure value of 50% ofthe maximum rated pressure. | ±0.6% of F.S./10°C | |||
Hysteresis | Variable | |||
Pressure type | Gauge pressure | |||
Temperature monitoring 2 The temperature monitoring precision is prescribed based on the value measured using water.Temperature measurements are affected by both of the temperatures, the medium and the piping.Temperature measuring elements are installed on the back surface of the piezoelectric element (inside the product) and used to measure the temperature. It might take long for the measured value to get stable according to the heat transmission speed. | Temperature monitoringrated range | –20 to 100°C | ||
Temperature monitoringprecision | ±4°C | |||
Temperature repeatability | ±1°C | |||
Control output judgment (selectable) | Standard mode | Judge if the measured value isthe threshold value or more (or less). | ||
Window mode | Judge if the measured value iswithin the upper and lower limits. | |||
Compatiblefluid | Gas and fluid not corroding thematerial of the wetted part (such as water, glycol solution, andoil) | |||
Display method | Numerical value indication: 4-digit 7-segment white LED with inverting function Status indicator: Normal operation (green), status indication (orange), and error (red) The content of status indication is selectable. Output indicator: OUT1 operation (orange), OUT2 operation (orange) Unit indication: E8PC-⬜⬜⬜⬜: MPa (white), E8PC-⬜⬜⬜⬜-E: MPa (white), bar (white), psi (white), °C (white) IO-Link indicator: Lighting when communications are in progress (green) | |||
Delay setting | 1 to 9999 ms (Select a function from invalid, ON delay, OFF delay, and one-shot.) | |||
Connectionmethod | M12, 4-pole connector type | |||
Connectingdiameter | G3/4 male (Use the optional adapterto convert the diameter) Connection strength 20 N·m | |||
Output ch3 (selectable) | Control output | Pressure control output (N.O./N.C.) E8PC-⬜⬜⬜D/T: PNP E8PC-⬜⬜: NPN 30 VDC or less, Class 2, max. 100 mA, residual voltage 1 V or less | ||
Output ch4 (selectable) | Control output | Pressure control output (N.O./N.C.) / temperature control output (N.O./N.C.) E8PC-⬜⬜⬜D/T: PNP E8PC-⬜⬜: NPN 30 VDC or less, Class 2, 100 mA max., residual voltage 1 V or less | ||
Analog current output 2 Donot connect analog current output with the master unit of IO-Link.Otherwise, the unit might fail. | Pressure analog output / Temperature analog output Current output 4 to 20 mA (maximum load resistance 350Ω or less) (Display value ± 2% of F.S.) | |||
External input | One-point teaching, zero point adjustment input (selectable, initial status: invalid) short-circuit current 1.5 mA or less, input time 20 ms or more | |||
IO-Link | IO-Link specification | Ver 1.1 | ||
Baud rate | E8PC-⬜⬜⬜D: COM2 (38.4kbps) E8PC-⬜⬜⬜T: COM3 (230.4Kbps) | |||
Data length | PD Size: 6 byte OD Size: 1 byte (M-sequence type: TYPE_2_V) | |||
Minimum cycle time | E8PC-⬜⬜⬜D (COM2): 3.2 ms E8PC-⬜⬜⬜T (COM3): 2.0 ms | |||
Power supply | Power supply voltage | 10 to 30 VDC (including 10% ripple(p-p)), Class 2 | ||
Power consumption | 1,200 mW or less (When power supply voltage is 30 V, current consumption must be 40 mA or less. When power supply voltage is 10 V, current consumption must be 120 mA or less.) | |||
Protectioncircuit | Power supply reverse connectionprotection, output short-circuit protection, and output reverseconnection protection | |||
Environment resistance | Ambient temperature range | –20 to 80°C in operation and storage,respectively (no condensation) | ||
Ambient humidity range | –35 to 85%RH in operation andstorage, respectively (no condensation) | |||
Vibration resistance (destruction) | 1000 VAC, 50/60 Hz, 1 min. betweencurrent-carrying parts and case | |||
Shock resistance (destruction) | 10 to 2000 Hz, double amplitude1.5 mm, 2 hours in X/Y/Z direction each | |||
Impact (endurance) | 500 m/s2, three timesin X/Y/Z direction each | |||
Protective structure | IP67 | |||
Pollution degree | 3 | |||
Altitude | 2,000 m or less | |||
Installation place | Indoor | |||
Material | Wetted part | Pressure port: SUS304L, diaphragmpressure port: Al2O3(alumina), O-ring: FKM | ||
Other than wetted part | Head: PPSU, display unit: PES,button: PBT, chassis: SUS304L | |||
Weight | Approx.190 g | |||
Accessories |
|
Model | E8PC-YA-A18 | E8PC-YA-A14 | E8PC-YA-A38 | E8PC-YA-C18 | E8PC-YA-C14 |
---|---|---|---|---|---|
Thread | G3/4×R1/8 | G3/4×R1/4 | G3/4×R3/8 | G3/4×NPT1/8 | G3/4×NPT1/4 |
A | 43.3 | 47.1 | 47.6 | 43.3 | 47.1 |
B | 21.1 | ||||
C | 13 | ||||
D | 9.2 | 13 | 13.5 | 9.2 | 13 |
E | 34 | ||||
F | 3.7 | 4.8 | 5 | 3.7 | 4.8 |
G | 17 | 17 | 19 | 17 | 17 |
Pleaserefer to E8FC.
