Produit ajouté au panier avec succès

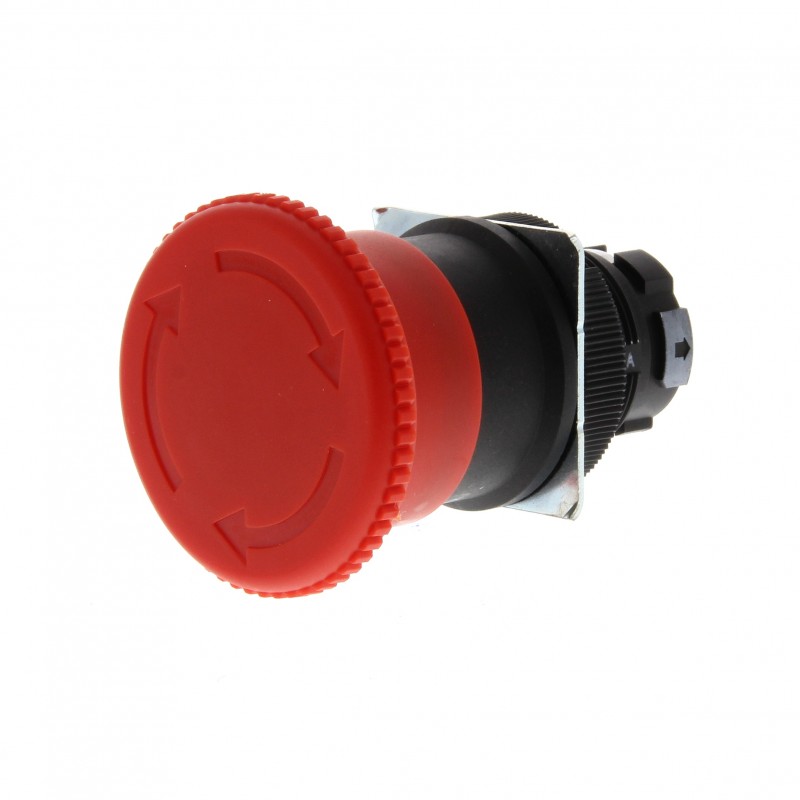

A22E-M
A22E2002A
A22EM
OMRON
1
Disponible Expédition hui
Sécurité > Autres sécurité
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par OMRON
Merci de vous intéresser à nos produits, nous espérons que le délai indiqué soit de votre convenance.
Pendant le traitement de la commande, vous pouvez sélectionner le type d'envoi qui vous convient. Aérien Express 24Hrs, Terrestres Standard 48/72Hres, etc.
Item | Appearance | Classification | Remarks | Order code | |
---|---|---|---|---|---|
Legend Plates for Emergency Stop | 60-dia. black letters on yellowback-ground | Used in combination with the washer rubber when the level of protection is to be met between panels. | A22Z-3466-1 | ||
90-dia. black letters on yellowback-ground | A22Z-3476-1 | ||||
60-dia. black letters on yellowbackground | Cannot be used in combination with the Control Boxes. Used in combination with the washer rubber when the level of protection is to be met between panels. | A22Z-3466-2 | |||
Hole Plug | Round | Used for covering the panel cutouts for future panel expansion. Black color. | A22Z-3530 | ||
Connectors | Applicable cable diameter | 7 to 9 dia. | Plastic connector used to extenda cable from the Switch Box. | A22Z-3500-1 | |
9 to 11 dia. | A22Z-3500-2 | ||||
25-dia. Ring | – | Use when mounting to a panel with a 25-dia. hole. Material: Rubber, Level of protection: IP65 2 Switches with an IP69K degree of protectiondo not support the 25-dia. | A22Z-R25 | ||
30-dia. Resin Attachment | – | Use when mounting to a panel with a 30-dia. hole. A rubber washer (A22Z-R) is provided with the product. | A22Z-A30 | ||
Lock Ring | – | The body is equipped with a Lock Ring. This Lock Ring is used when a more secure lock feature is -required. | A22Z-3360 | ||
Tightening Tool | – | Used for tightening the mounting ring from the back side of the panel, and for removing the cap in lighted models. | A22Z-3905 | ||
E-stop Shroud for EMO, Yellow | – | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY OFF come as a set. Use with an A22E Emergency Stop Switch (for emergency shutoff) 2 ,These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc). 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG1 | ||
E-stop Shroud for EMO, Yellow | Legend plate for EMERGENCY OFF is not -included. | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2 compatibility. Use with an A22E with EMO indication. (for -emergency off) 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG10 | ||
E-stop Shroud for EMS, White | – | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY STOP come as a set. Use with an A22E Emergency Stop Switch. (for emergency stop) 2 ,These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc). 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG1-W | ||
E-stop Shroud for EMS, White | Legend plate for EMERGENCY STOP is not -included. | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2 compatibility. Use with an A22E with EMS indication. (for emergency stop) 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG10-W | ||
E-stop Shroud, Yellow | Spacer Unit is not included. | SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2-compatible Shroud. (for emergency shutoff) 2 ,These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc). 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. Use together with an A22E Emergency Stop Switch. | A22Z-EG2 | ||
One Spacer Unit is included. | A22Z-EG21 | ||||
Two Spacer Units are included. | A22Z-EG22 | ||||
E-stop Shroud for EMO, Yellow | – | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY OFF come as a set. Use with an A22E Emergency Stop Switch. (for emergency shutoff) 2 ,These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc). 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG3 | ||
Rubber Packing | – | Used together with accessories. Contains 10 packings. | A22Z-R |
