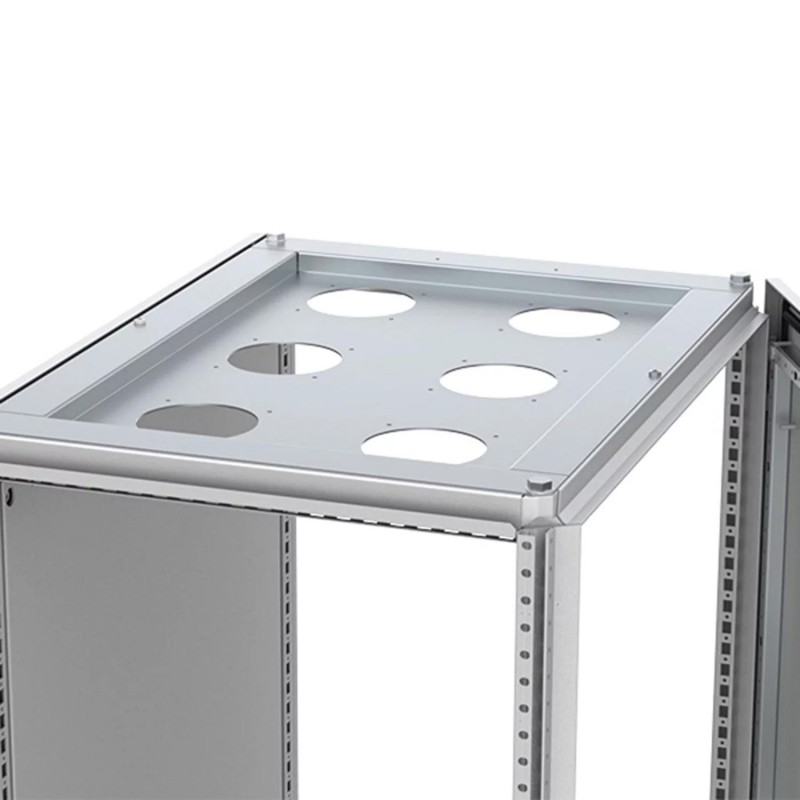

CFR0808 nVent HOFFMAN Plaque toit pour ven., 800x800 CFR0808

Description:

Permet le montage de 6 ventilateurs DFN02 ou de plaques d'obturation DFC lorsque les perforations ne sont pas utilisées. À combiner avec la plaque de toit ventilée CVR.

Matériau:

Acier zingué 2 mm.

Instructions de montage:

Ajouter un toit ventilé CVR. Utiliser un ventilateur DFN02. Fermer les perforations non utilisées avec des DFC.

Unité de livraison:

1 pièce avec accessoires de montage.

Feature:

Roof fan plate for mild steel semi-compact and combinable floor standing enclosures.

Advantage:

Up to six ventilation fans can be mounted within the roof plate providing forced ventilation into the enclosure. The roof plate is mounted in combination with the ventilation roof plate, CVR, providing a degree of protection of IP31.

Benefit:

The enclosure can be cooled in incremental steps depending on the number of ventilation fans installed. The forced ventilation provides a high cooling capacity which is a good solution in environments when the ambient temperature is 10o or more, under the enclosure's desired internal temperature.

Comment:

The roof fan plate must be mounted in combination with the ventilation roof, CVR. It is recommended to also install exhaust filters in the bottom of the enclosure to let air circulate properly. The cut-outs must be covered by either ventilation fans, DFN, or cover plates, DFC, depending on the amount of cooling required.
