MSCC0806
ELDON
1
Disponible Expédition hui
Coquilles pour interrupteurs en Cassett
Plateau pour PBR, 800x600, pour basculer de la coupe de la air

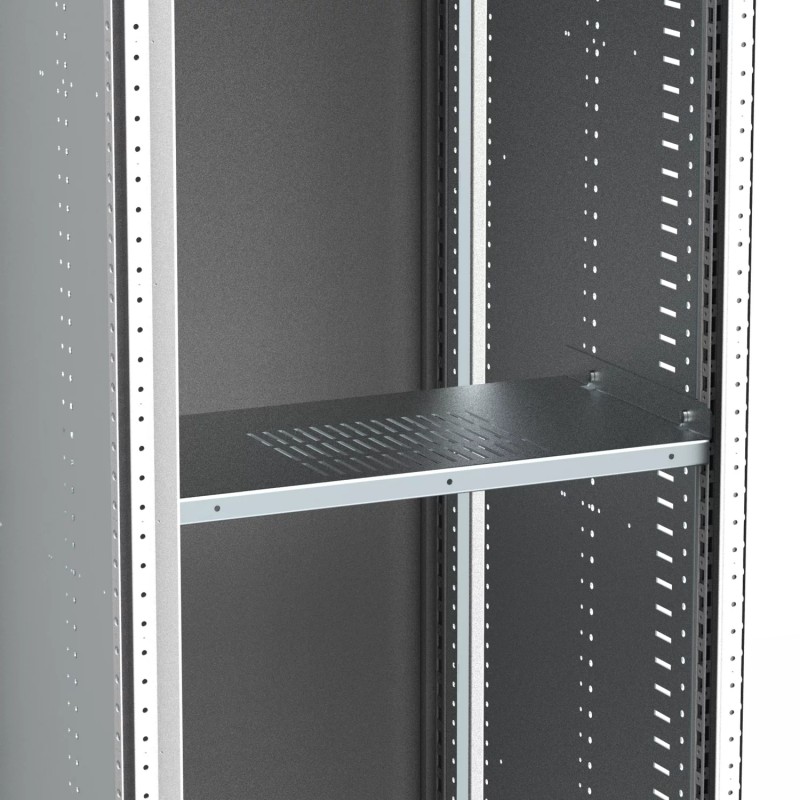

The galvanised steel shelf, MSCC, covers a partial depth of an enclosure and is ideal for equipment requiring strong fixation, such as heavy air circuit brakers. It leaves the rear of the enclosure accessible for easy installation and wiring.
Armoires, coffrets, boites, baies, pupitres et accessoires > Composants pour le démontage (armoire de commande)
Énergie et distribution
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par ELDON
Merci de vous intéresser à nos produits, nous espérons que le délai indiqué soit de votre convenance.
Pendant le traitement de la commande, vous pouvez sélectionner le type d'envoi qui vous convient. Aérien Express 24Hrs, Terrestres Standard 48/72Hres, etc.
Description: | Shelf to mount air circuit-breakers, fixed or withdrawable version and MCCB's version in cassette. The shelf has ventilation slots to allow air circulation in the section. It can be mounted only if we have internal side panels MSPSxx06 in both sides. Adjustable height position in steps of 25mm. It can not be used with the front covers system, if it is neccessary to increase the internal segregation or limit the access, we recommend to use top and bottom shelf and 3 partial doors to separate the incoming, ACB and outgoing subsections. |
Matériau: | 2 mm galvanised steel. |
Livraison: | 1 piece with mounting material. |
Feature: | Galvanised steel shelf, only covers the partial depth of the enclosure and can only be fitted between internal side panels (MSPSxx06). |
Advantage: | The shelf provides a horizontal surface, ideal for equipment that requires a rigid and strong fixation method, while ensuring that the rear of the enclosure remains free, for ease of installation and wiring. |
Benefit: | Heavy air circuit breakers can be securely mounted within the enclosure. The free space behind the shelf allows customers to easily install incoming and outgoing cables and/or busbars. |
Comment: | In order to mount the shelf, internal side panels (MSPS), are required. |
Titre: | Taille: | Type: |
---|---|---|
MSCC0806 MSCC0806 FR_MSCC0606.pdf | 164 Kbytes | |
Télécharger le catalogue général |
