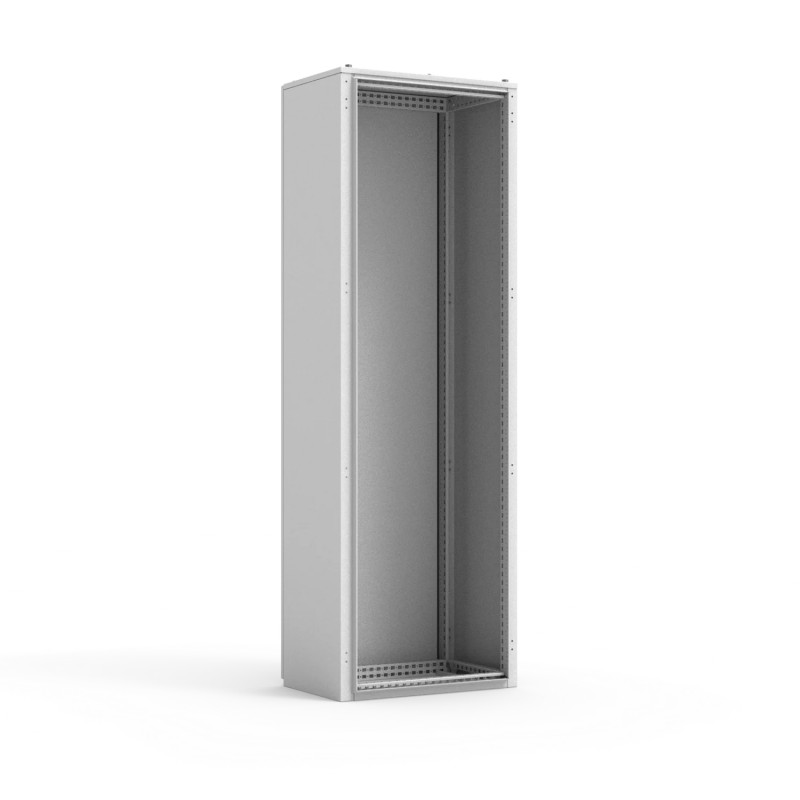

MKSL20084R5 nVent HOFFMAN Auto-support, 2000x800x400, compact, sans porte, pas de MP, acier doux

Matériau:

Body: 1.35 mm painted steel. Rear and roof panels: 1.5 mm painted steel.

Corps:

Four times folded and seam-welded frame. Integrated double row hole pattern.

Panneau arrière:

Fitted by M6 torxscrews. Standard facilities for rear door mounting.

Plaque de toit:

Removable.

Mise à la masse:

All panels are earthed through their fittings and are equipped with a separate earthingstud.

Finition:

RAL 7035 structured powder coating.

Protection:

IP 44, 55 TYPE 12, 13 IK 10, depending of the doors configuration.

Livraison:

Body with rear panel and roof panel. Delivery also includes earthing bolts. Delivered on a pallet with identical width of the enclosure. All packing material is recyclable.

Feature:

Mild steel compact floor standing enclosure, available in a wide range of sizes, without a front door and bottom plates for power distribution applications.

Advantage:

Customers can choose enclosures that meet their size requirements, off the shelf. The enclosure's front opening can be segregated by mounting partial panels or doors to meet the requirements of the power and distribution system, for example, for a motor control centre (MCC).

Benefit:

Providing an application specific product ensures that customers costs are reduced, as the parts of the enclosure that are not required are not received, which in turn increases procurement efficiency.

Comment:

The enclosure's front opening needs to be fully covered by using specified parts, such as partial doors, DP, or partial panels, DPP, in order to achieve the stated protection degree.
