ARF06026R5
ELDON
1
Disponible Expédition hui

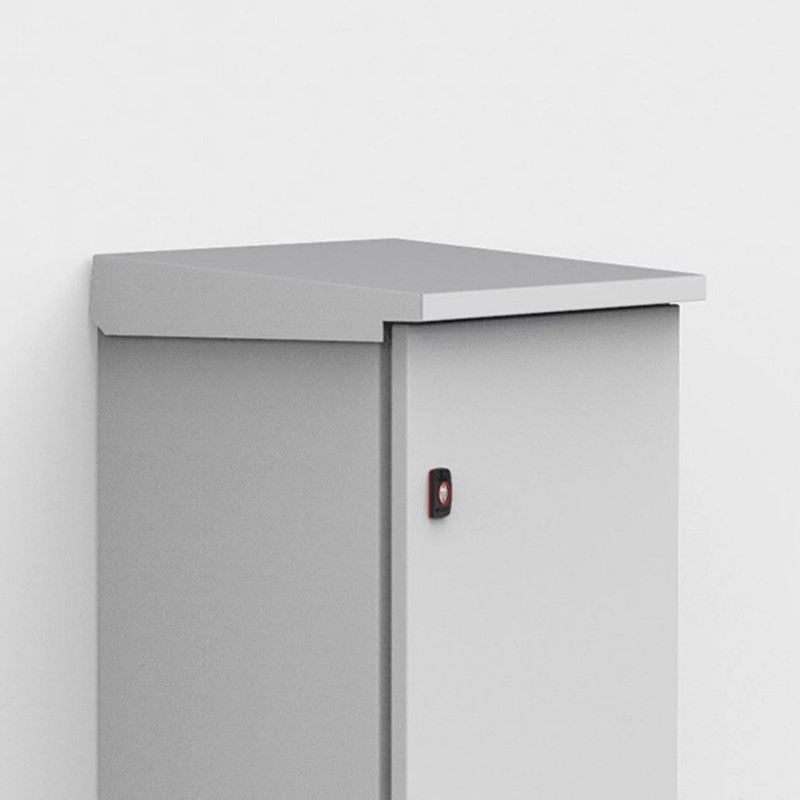

Capot antipluie, 600x260 ARF06026R5
Tejadillo, 600x260, tôle d'acier
A mild steel rain hood provides shelter via a sloped roof and protects installed components from accumulated water dripping into the enclosure when the door is opened.
Armoires, coffrets, boites, baies, pupitres et accessoires > Élément de toiture / fond (boîtier / armoire de commande)
Coffret horizontal en tôle acier
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par ELDON
Merci de vous intéresser à nos produits, nous espérons que le délai indiqué soit de votre convenance.
Pendant le traitement de la commande, vous pouvez sélectionner le type d'envoi qui vous convient. Aérien Express 24Hrs, Terrestres Standard 48/72Hres, etc.
Description: | To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm. |
Matériau: | 1.5 mm mild steel. |
Finition: | RAL 7035 structured powder coating. |
Unité de livraison: | 1 rain hood with mounting accessories. |
Information complémentaire: | If the rain hood is exposed to high levels of UV radiation, the ARF should be coated with 100% polyester paint. This can be ordered as a special accessory. The ARF is not compatible with 180º MMH hinges. |
Feature: | Mild steel rain hood for mild steel wall mounted enclosures. |
Advantage: | The rain hood is mounted on top of the enclosure and provides shelter via a sloped roof. The rain hood features a drip strip that protects the enclosure's door gasket from the accumulation of water while also shielding it from UV radiation. |
Benefit: | The rain hood protects installed components from water as it removes the risk of accumulated water on top of the gasket, dripping into the enclosure when the door is opened. |
Comment: | Wall mounted enclosures require machining before the rain hood can be mounted. Rain hoods are not compatible with combined enclosures. The overall dimensions of the enclosure will increase by 60mm in height, 20mm in width and 20mm in depth. If the enclosure is installed in an outdoor environment, then the rain hood will require a harsh environment power coating, which will provide better protection against corrosion and UV radiation. |
Titre: | Taille: | Type: |
---|---|---|
ARF06026R5 ARF06026R5 FR_ARF02515R5.pdf | 104 Kbytes | |
Télécharger le catalogue général |
