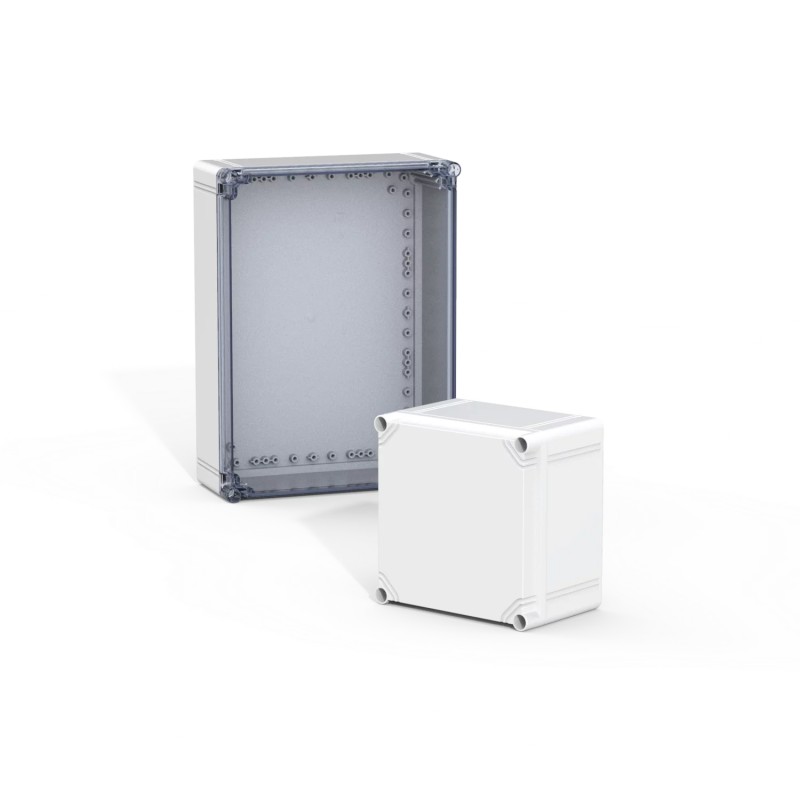

OPCP203013GE nVent HOFFMAN Boîtier terminal, 200x300x130

Description:

Boîte en polycarbonate, sans halogène, adaptée à une utilisation en extérieur. Haute résistance aux rayons UV. Auto-extinguible.

Matériau:

Polycarbonate.

Joint:

Joint en polyuréthane intégré dans le couvercle.

Resistance à la température:

-40 à +80 °C.

Inflammabilité:

UL746C 5V.

Protection:

IP 66, 67 IK 08 (-25 °C … +35 °C).

Finition:

RAL 7035.

Homologations:

CE, GOST. Pour les homologations cULus_UL Listed, contacter notre service commercial.

Livraison:

Corps, couvercle, vis de couvercle en polyamide et vis de fixation.

Feature:

Polycarbonate terminal box, available in a wide range of sizes, that can be extended in depth, with a high IP 66, 67 protection degree.

Advantage:

Customers can choose terminal boxes that meet their size requirements, off the shelf. The installed components inside the terminal box will be safe and secure due to the high protection degree and resistance to UV radiation.

Benefit:

Customers can receive terminal boxes with a short delivery time, that match their size requirements which can be installed in both indoor and outdoor environments, even in locations where there is direct sunlight. This will also remove any extra costs due to oversizing. Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the terminal box. If necessary, deeper components can be installed when the expansion frame, OPCP-EE, has been mounted.

Comment:

The mounting plate, OMP, and DIN profiles, DR, have to be ordered separately, in order to complete the installation of the terminal box. The expansion frame, OPCP-EE, should be ordered if a deeper terminal box is required.
