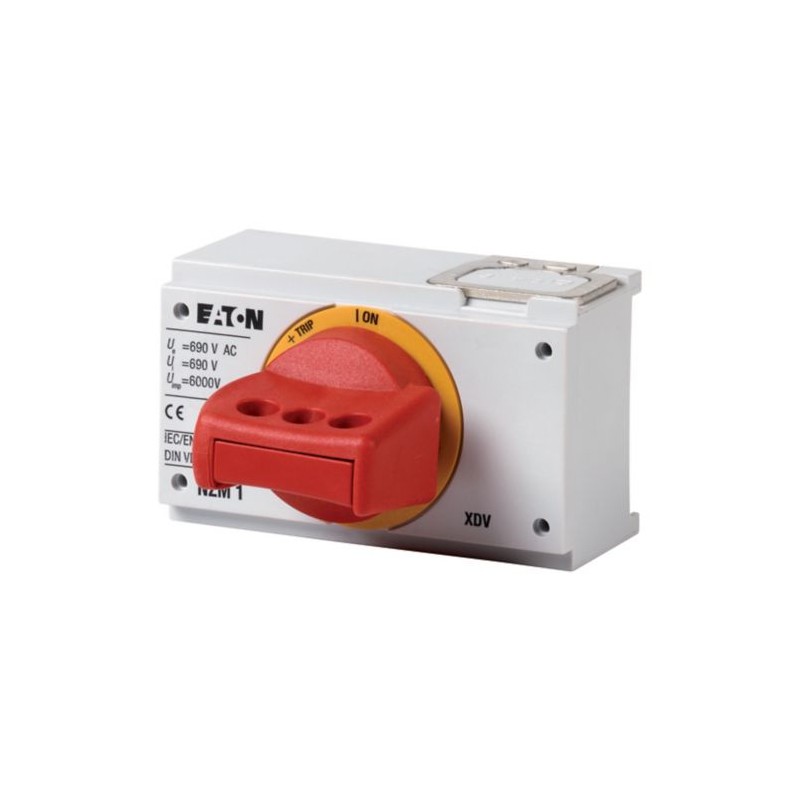

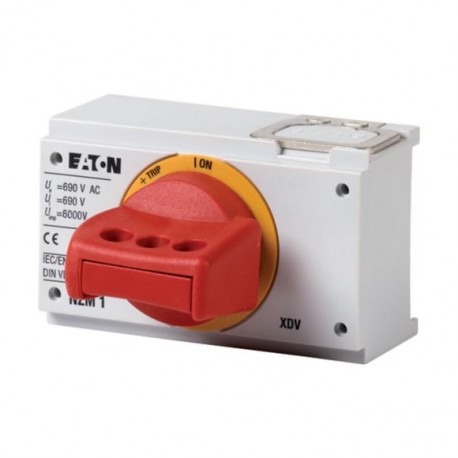

NZM1-XDVR 260135 EATON ELECTRIC Poignée rotative pour mécanisme inverseur, rouge-jaune, verrouillable, taill..
NZM1-XDVR
260135
EATON-MOELLER
Poignée rotative pour mécanisme inverseur, rouge-jaune, verrouillable, taille 1
NZM1-XDVR
Eaton Moeller series NZM - Molded Case Circuit Breaker. Rotary handle, red-yellow, lockable, size 1
Appareillage industriel basse tension > Poignée pour disjoncteur
Accessoires NZM
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller series NZM operating element
Catalog Number
260135
Model Code
NZM1-XDVR
EAN
4015082601355
Product Length/Depth
80 mm
Product Height
54 mm
Product Width
90 mm
Product Weight
0.2 kg
Compliances
IEC
UL/CSA
RoHS conform
UL/CSA
RoHS conform
Certifications
UL489
UL (Category Control Number DIHS)
CE marking
IEC60947
CSA (File No. 22086)
UL (File No. E140305)
UL listed
CSA (Class No. 1437-01)
CSA-C22.2 No. 5-09
CSA certified
UL (Category Control Number DIHS)
CE marking
IEC60947
CSA (File No. 22086)
UL (File No. E140305)
UL listed
CSA (Class No. 1437-01)
CSA-C22.2 No. 5-09
CSA certified
Spécifications du produit
Type
Special features
- Complete with rotary drive
- Can be combined with insulating surround
- MODAN handle position detection by wire release can be retrofitted
- Makes it possible to operate the switch with a rotational movement and provides locking facilities
Features
Lockable
Red-yellow for emergency switching off
Red-yellow for emergency switching off
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Color
Red
Fitted with:
Padlock
Frame
NZM1
Used with
NZM1(-4), PN1(-4), N(S)1(-4)
Activation type
Rotary handle
Suitable for
Power circuit breaker
Emergency stop
Switch disconnector
Emergency stop
Switch disconnector
Locking facility
Lockable on the 0 position on the switch using up to 3 padlocks
Degree of protection / NEMA enclosure type
IP20
4X. 12
4X. 12
