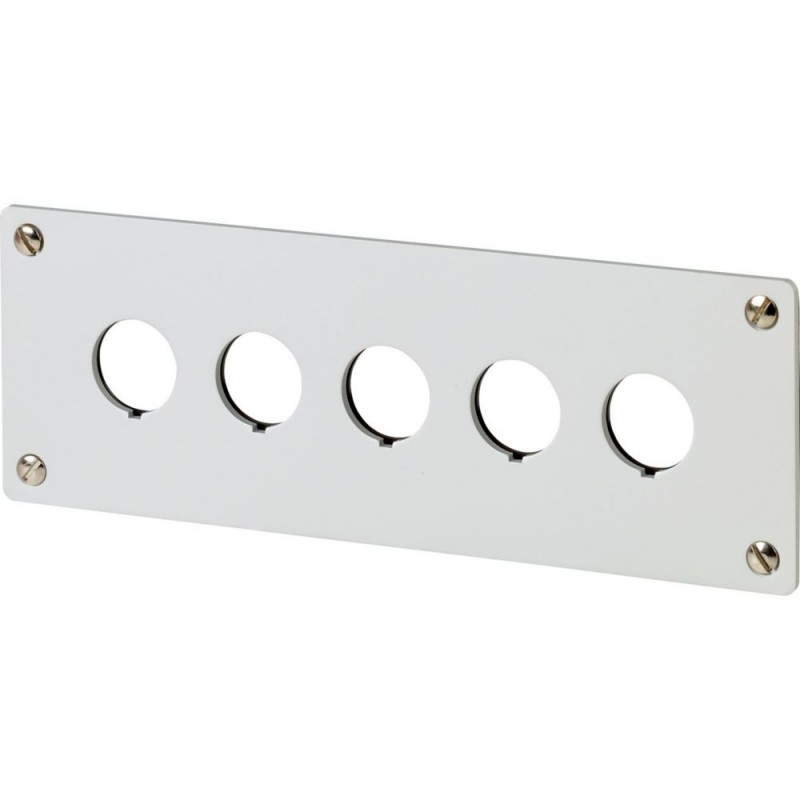

M22-E5 216546 M22-E5Q EATON ELECTRIC Plastron d'encastrement, 5 emplacements de montage
M22-E5
216546
M22-E5Q
EATON-MOELLER
Plastron d'encastrement, 5 emplacements de montage
M22-E5
Eaton Moeller® series M22 Flush mounting plate, 5 mounting locations
Appareillage industriel basse tension > Plaque de montage pour appareils de commande
Moyens de contrôle et de signalisation
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller® series M22 Accessory Flush mounting plate
Catalog Number
216546
Model Code
M22-E5
EAN
4015082165468
Product Length/Depth
3 mm
Product Height
72 mm
Product Width
204 mm
Product Weight
0.186 kg
Certifications
UL 508
IEC/EN 60947-5
CE
CSA-C22.2 No. 94-91
CSA File No.: 012528
UL File No.: E29184
CSA Class No.: 3211-03
UL
CSA
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CE
CSA-C22.2 No. 94-91
CSA File No.: 012528
UL File No.: E29184
CSA Class No.: 3211-03
UL
CSA
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
Features & Functions
Color
Gray
Material
Aluminum
Number of locations
5
RAL-number
7035
General
Degree of protection
IP65
Only in conjunction with a suitable enclosure and correct mounting
NEMA 4X, 13
Only in conjunction with a suitable enclosure and correct mounting
NEMA 4X, 13
Opening diameter
22 mm
Type
Surface mounting enclosure
Type
Surface mounting enclosure
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Communication
Connection to SmartWire-DT
No
Contacts
Force for positive opening - min
0 N
Design verification
Heat dissipation capacity Pdiss
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
