FAK-P-Y 229752 EATON ELECTRIC 229752 FAK-P-Y
FAK-P-Y
229752
EATON-MOELLER
229752 FAK-P-Y
FAK-P-Y

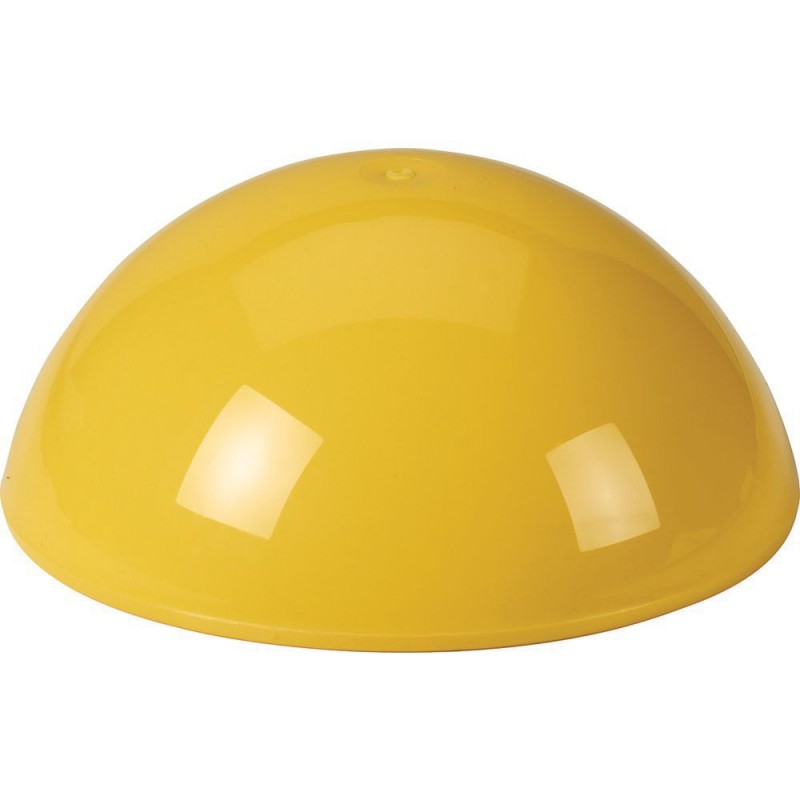

Eaton Moeller® series FAK Button, yellow
Appareillage industriel basse tension > Boîtier pour bouton coup-de-poing / de commande à pied
Moyens de contrôle et de signalisation
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Achetés habituellement ensemble
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller® series FAK Accessory Mushroom head
Catalog Number
229752
Model Code
FAK-P-Y
EAN
4015082297527
Product Length/Depth
95 mm
Product Height
40 mm
Product Width
95 mm
Product Weight
0.038 kg
Compliances
CE
Features & Functions
Color
Yellow
General
Connection to SmartWire-DT
No
Degree of protection
IP Other
NEMA Other
NEMA Other
Product category
Accessories
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 23 Mbytes |
|
| FAK-P-Y FAK-P-Y 229752 FR_229750.pdf | 2 Mbytes |
|
