> EATON - MOELLER>Moyens de contrôle et de signalisation >Q25D-RT 086444 ELECTRIC Bouton-poussoir, rouge, à rappel
Produit précédent Produit suivant

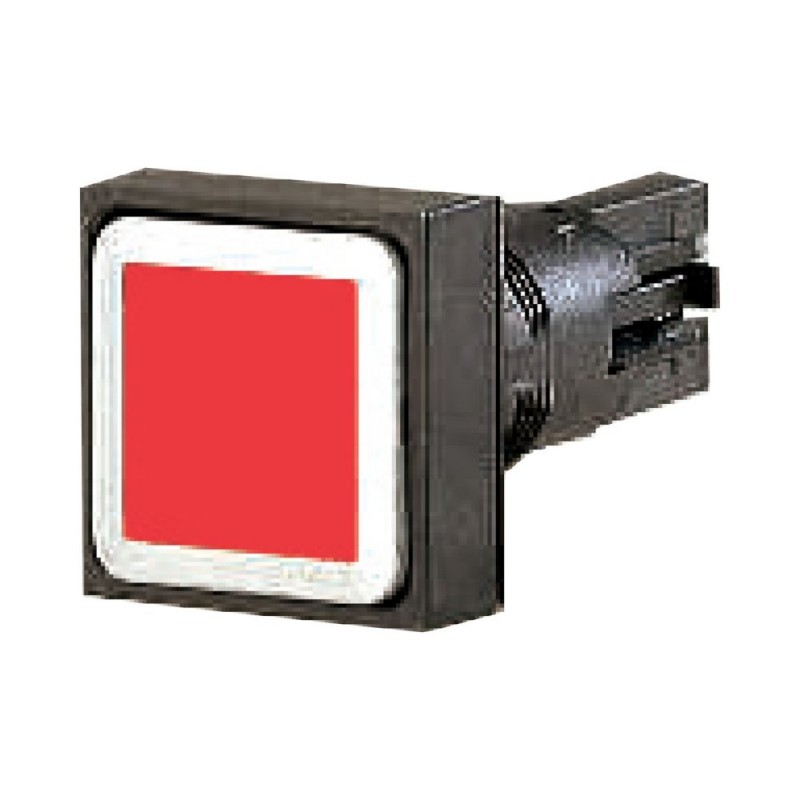

Q25D-RT 086444 EATON ELECTRIC Bouton-poussoir, rouge, à rappel Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

Q25D-RT 086444 EATON ELECTRIC Bouton-poussoir, rouge, à rappel

Q25D-RT

086444

EATON-MOELLER

10

Bouton-poussoir, rouge, à rappel

Bouton-poussoir affleurant; Retour 16 mm; Rouge

Eaton Moeller® series RMQ16 Pushbutton, red, momentary Q25D-RT

Plus de détails


Appareillage industriel basse tension > Tête de bouton

Moyens de contrôle et de signalisation

* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $97.98
Prix unitaire: $9.80

Quantité Prix
10+$9.80
20+$8.49
30+$8.14
*Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Achetés habituellement ensemble

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series RMQ16 Pushbutton
Catalog Number
086444
Model Code
Q25D-RT
EAN
4015080864448
Product Length/Depth
50 mm
Product Height
25 mm
Product Width
25 mm
Product Weight
0.008 kg
Certifications
UL
CSA File No.: 46552
CE
IEC/EN 60947
UL Category Control No.: NKCR
IEC/EN 60947-5
CSA Class No.: 3211-03
CSA
CSA-C22.2 No. 14-05
UL 508
UL File No.: E29184
VDE 0660

Features & Functions

Bezel color
Black
Bezel material
Plastic
Design
Flat
Fitted with:
Front ring
Inscription
Blank

General

Degree of protection
IP65
NEMA 1
Degree of protection (front side)
NEMA 1
IP65
Lifespan, mechanical
3,000,000 Operations
Opening diameter
16 mm
Operating frequency
3600 Operations/h
Product category
RMQ16
Size
Front dimensions: 25 x 25 mm
Type
Pushbutton actuator

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
40 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Actuator

Actuating force
4 N
Actuator color
Red
Actuator function
Spring-return
Momentary

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON COMMAND INDICATION EN.pdf 23 Mbytes
Q25D-RT Q25D-RT 086444 EN_025434.pdf 1 Mbytes Q25D-RT Q25D-RT 086444 EN_025434.pdf
