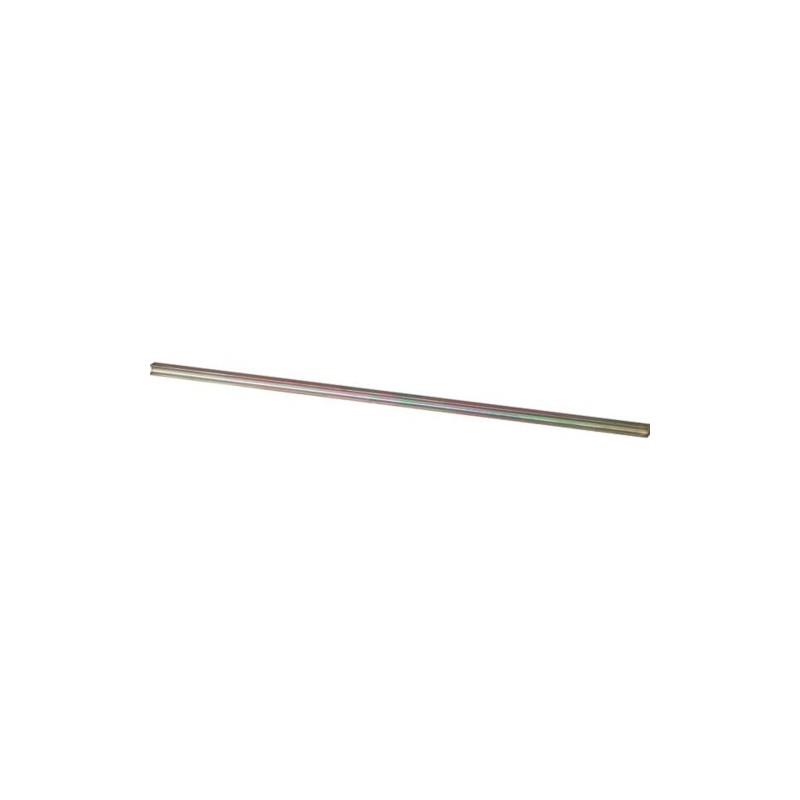

4K12300MMK4 1319326 EATON ELECTRIC Axe de commande, L 300mm, K4
4K12300MMK4
1319326
EATON-MOELLER
Axe de commande, L=300mm, K4
4K12300MMK4
Eaton 4K Drive shaft, Universal, Shaft diameter: 12 x 12 mm, Shaft length: 300 mm, For use with: K4 Rotary handles
Appareillage industriel basse tension > Axe de commutateur
DUMECO Interrupteurs-sectionneurs
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton 4K Accessory Drive shaft
Catalog Number
1319326
Model Code
4K12300MMK4
EAN
8711426585577
Product Length/Depth
375 mm
Product Height
12 mm
Product Width
125 mm
Product Weight
0.32 kg
Compliances
CE
Catalog Notes
Universal
General
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Shaft diameter
12 x 12 mm
Shaft length
300 mm
Type
Drive shaft
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON INDUSTRIAL SWITCH DISCONNECTORS EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| 4K12300MMK4 1319326 FR_1319326.pdf | 108 Kbytes |
|
