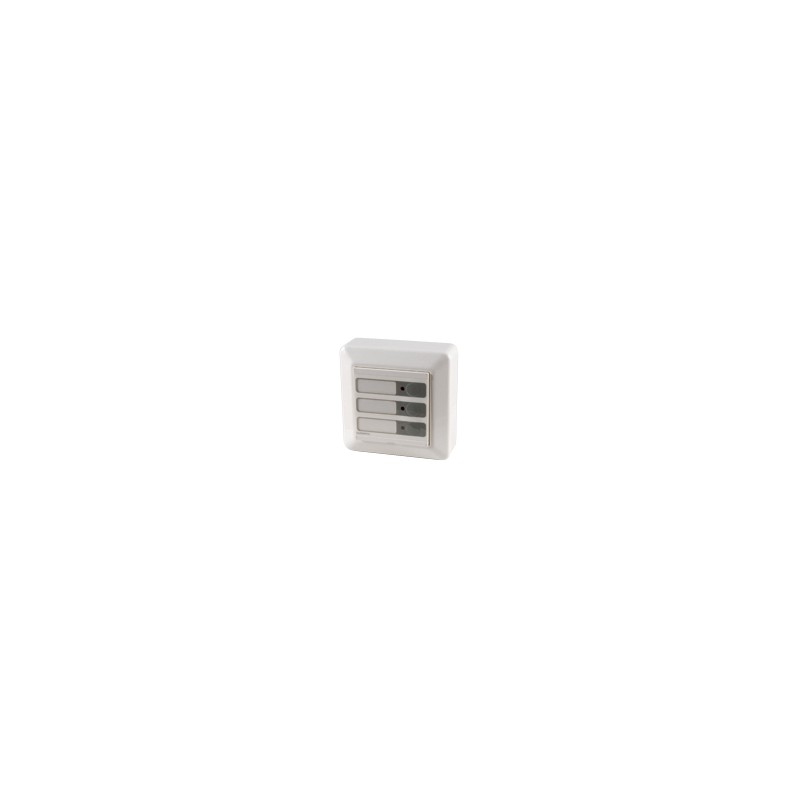

ELKO Light Switch
Type G8510 1101, G8510 2201, G8510 3301
Du line®
Fieldbus Installationbus
• Transceiver for Building Automation applications
• 1, 2 or 3 individually programmable Push Button inputs
• 1, 2 or 3 individually programmable LED´s for true response
• Supplied by Dupline®, no external supply required
• Channel coding by Gap 1605
• Flush or Surface mounting
Product Description Ordering Key
G 8510 3301
G8510 XX01 family is a Dupline® supplied transceiver with 1 to 3 contact input and LED outputs. It can be used as a standalone unit or inte- grated in the series of me- chanics from the Norwegian
supplier ELKO. Without the surface housing it is compati- ble with most of the installa- tion material commonly used in the central / west European countries.
Type: Dupline® ELKO-Housing Input Type
No. of channels No. of Inputs Input type
Type Selection
Supply No. of Inputs Ordering no.
By Dupline® 1 G8510 1101
2 G8510 2201
3 G8510 3301
Supply Specifications
Power supply Supplied by Dupline®
Rated operational current consumption
Unactivated
G8510 1101 0.2 mA G8510 2201 0.2 mA G8510 3301 0.2 mA
All LED´s activated (ON)
G8510 1101 1.3 mA G8510 2201 2.0 mA G8510 3301 2.6 mA
Input Specifications
Pulse prolongations: 220 – 300 mS
General Specifications
Channel Coding By GAP 1605
In/out 1 - 3 Pushbutton 1 - 3
In/out 5 - 7 LED 1 – 3 (see Dimensions)
Environment
Degree of protection IP 20
Pollution degree 3 (IEC 60664) Operating temperature 0 - 50°C/32 - 122°F Storage temperature -20 - 70°C/-4 - 158°F
Humidity (non condensing) 20 - 80%
Connection
Screw terminal Pin 1: Dupline®
Pin 2: GND
Enclosure
Housing ELKO Mechanics
Material ABS Colour Off white Weight 65 g
Dimensions (H xW x D) 84 x 84 x 28,5mm
(including surface housing)
Max wire in terminals 2 x 2,5 mm2
Specifications are subject to change without notice (29.05.2008) 1
Dupline® is a registered trademark. A product of the CARLO GAVAZZI Group
