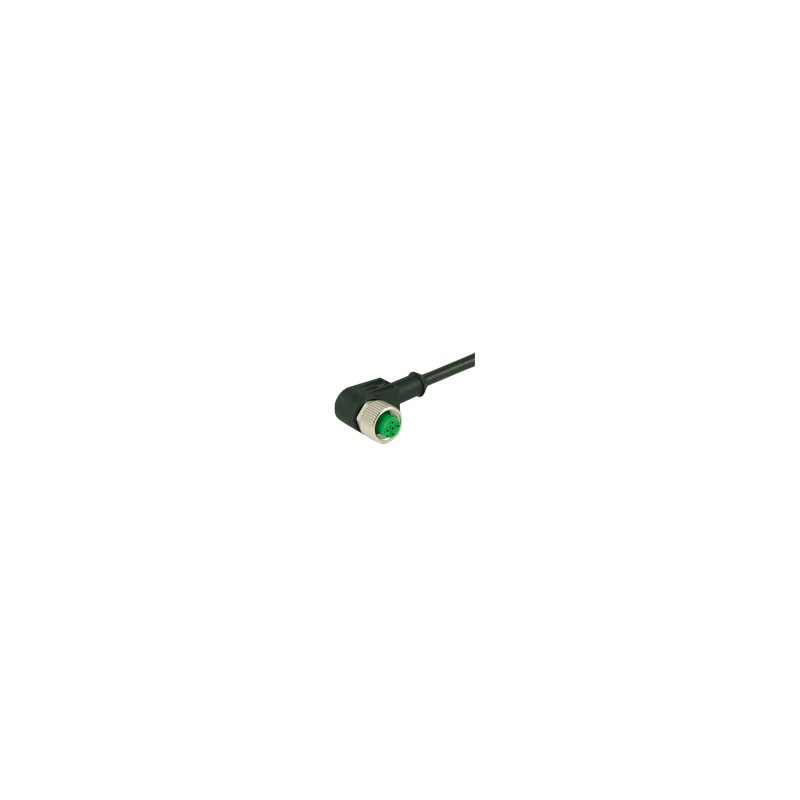

CONM15NF-A5 CARLO GAVAZZI Paramètres sélectionnés SYSTEME Connexion du câble CONNEXION M12 CABLE 5-fils FONC..

General Accessories Connector Cables Type CONM1...
• Straight or 90° connector
• M12 version
• 3, 4 or 5 wire
• DC version
• LED’s in transparent housing
• IP 67
• Easy stripping-off the outer jacket
• Good resistance against chemicals
Product Description
Ordering Key
CONM14NF-APT2P
PVC version:
Connection cables for use in normal environments. Inexpen- sive cable ideally suited for a static and less demanding use. Suitable for medium mechani- cal demands like in packaging machines, assembly- and pro- duction lines. The connectors have a good resistance against chemicals. The cables are not resistant against oil and lubri- cants and have a limited resis- tance towards abrasion. The connectors are available in 3, 4 or 5 wire versions as well as straight or angled versions.
PUR/PVC version:
Connection cables for use in robust environments.
Inexpensive cable for a flexible use in several areas. Flexible control cable for higher demands inside or outside used in handling and packaging machines, assembly lines as well as production lines. The connectors have a good resistance against chemi- cals, and good resistance against temporary contact with oil and lubricants. they have a very good resistance towards abrasion. the connectors are UV resistant.
Connection cable for use in normal environments.
The connectors are available in
3, 4 or 5 wire versions as well as straight or angled versions.
CONM = Murr
1 = M12 DC
3 = 3 wire (BN, BU, BK)
4 = 4 wire (BN, BU, BK, WH)
5 = 5 wire (BN, BU, BK, WH, GY) N= Not shielded
F= Female
M= Male
A = Angled S = Straight P= PNP
N= NPN
T= Transparent housing
2 = 2 meters
5 = 5 meters
10 = 10 meters Blank = PVC cable P = PUR/PVC cable
Type Selection
Plug type Cable Ordering number Ordering number Ordering number Ordering number Ordering number Ordering number length PVC PVC PVC PUR/PVC PUR/PVC PUR/PVC
LED NPN LED PNP LED NPN LED PNP
3-Wire Angled 2 m CONM13NF-A2 CONM13NF-ANT2 CONM13NF-APT2 CONM13NF-A2P - -
5 m CONM13NF-A5 CONM13NF-ANT5 CONM13NF-APT5 CONM13NF-A5P - CONM13NF-APT5P
10 m CONM13NF-A10 - - - - -
3-Wire Straight 2 m CONM13NF-S2 - - CONM13NF-S2P - -
5 m CONM13NF-S5 - - CONM13NF-S5P - -
4-Wire Angled 2 m CONM14NF-A2 CONM14NF-ANT2 CONM14NF-APT2 CONM14NF-A2P - -
5 m CONM14NF-A5 CONM14NF-ANT5 CONM14NF-APT5 CONM14NF-A5P - -
10 m CONM14NF-A10 - - - - -
4-Wire Straight 2 m CONM14NF-S2 CONM14NF-SNT2 CONM14NF-SPT2 CONM14NF-S2P - -
5 m CONM14NF-S5 CONM14NF-SNT5 CONM14NF-SPT5 CONM14NF-S5P - -
10 m CONM14NF-S10 - - - - -
5-Wire Angled 2 m CONM15NF-A2 - - - - -
5 m CONM15NF-A5 - - - - -
10 m CONM15NF-A10 - - - - -
5-Wire Straight 2 m CONM15NF-S2 - - - - -
5 m CONM15NF-S5 - - - - -
10 m CONM15NF-S10 - - - - -
Specifications are subject to change without notice (19.12.05) 1
