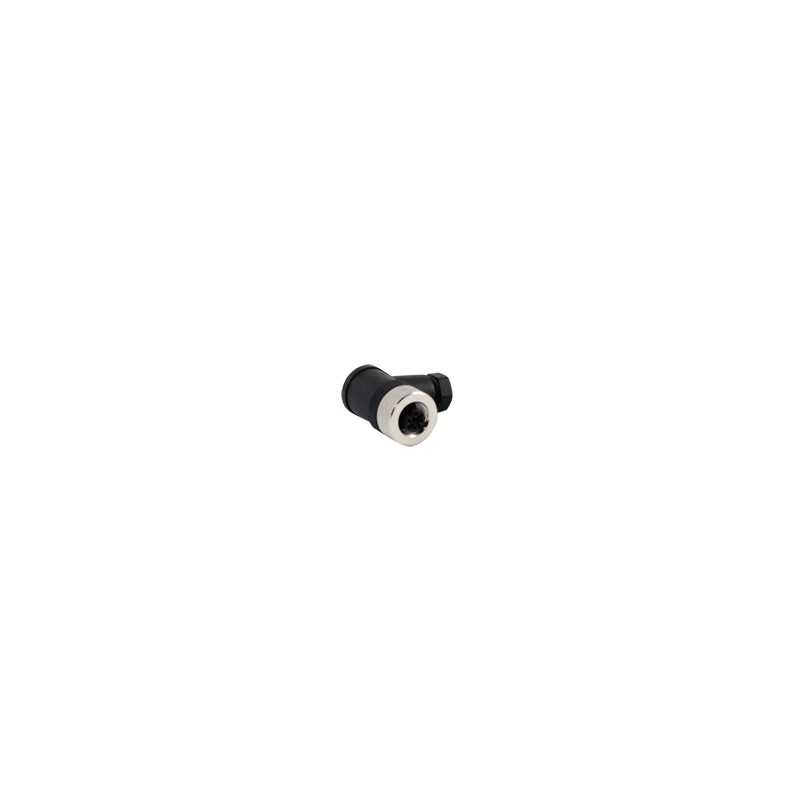

CONM14NF-A CARLO GAVAZZI Paramètres sélectionnés SYSTEME Connexion du câble CONNEXION M12 CABLE 4-fils FONCT..

General Accessories Connector Plug Terminals Type CONM1...
• Straight or 90° connectors
• M12 version
• 4 wire
• DC version
• IP 67
• Good resistance against chemicals
• UL approved
CONM14NF-A CONM14NF-S
Product Description
Ordering Key
CONM14NF-A/S
Connector with self-application screw terminals. PG 7 cable gland for cables between 4 to
6 mm.
Type Selection
Good chemical and oil resis- tance. When using aggressive mediums, material resistance based on application must be checked.
CONM = Murr
1 = M12 DC
4 = 4 wire (BN, BU, BK, WH) N= Not shielded
F= Female
M= Male
A = Angled
Plug type Ordering number
4-Wire Angled CONM14NF-A
4-Wire Straight CONM14NF-S
S = Straight
Specifications
Rated operating voltage (UB) 250 V AC/DC
Output current ≤ 4 A Contact resistance ≤ 6 mΩ Contact material CuZn
Coating 0.2 µNi + 0.5 µAu
Pin diameter 1.02 mm
Contact bearer material PA black
Pin and key code position IEC 61076-2-101
Temperature -40° to +85°C
Degree of protection IP 67
O-ring sealing NBR
Insulation test 2.5 kV
Moulded body material PBTP black
For cable diameter 4,0 mm to 6,0 mm
Connection wires max. 0.75 mm2
Union nut CuZn (brass) Coating Nickel plated Torque 0.6 Nm
Weight approx 25 g
Polution degree 3
Overvoltage category lll
Insulation group llI
Specifications are subject to change without notice (07.11.2006) 1
