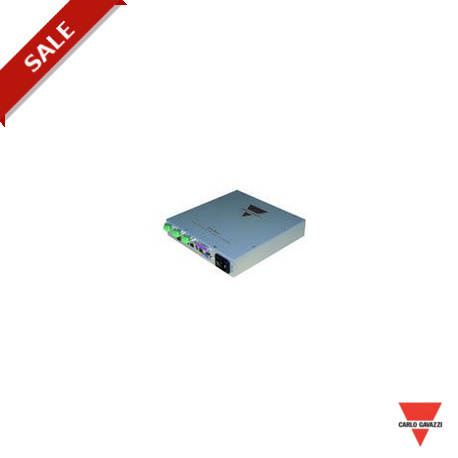

EOSBOXDXXX CARLO GAVAZZI Paramètres sélectionnés FUN Serveur Web pour Eos-Array MOU Montage mural et rail DI..

Energy Management
Control solution for Solar PV applications
Type Eos-Box
• 100 to 240VAC power supply
• Dimensions(WxHxD): 225 x 225 x 45 mm
• Protection degree (front): IP20
• Fan-less embedded PC with Web-server capability
• Windows XP embedded operating system
• Managed information: V, A, kW, kWh, sun-irradiation, cell-temperature, air- temperature, wind speed on the DC part of the photovoltaic park and V, A, kW, kWh on the AC part and from both inverters and energy meters.
• Efficiency calculation and control on three different levels: string, BOS and total
• Variables shown as graphs and numbers in format- ted tables
• Alarms control and automatic e-mailing and SMS management in case of GPRS modem external con- nection
• All data exports on XLS format
• Data storage up to 15 years in a 8GB DOM Memory
• Four RS485 communication ports (Modbus)
• One Ethernet port
Product description
How to order
Eos-Box D XX X
Eos-Box is a fan-less embed- ded PC with Web-server capability suitable to gather photovoltaic plant information from Eos-Array, inverters, energy meters and interface protection. Eos-Box provides information in a quick and automatic fashion via the internet using a standard browser, so the data is avail-
able wherever you are. Eos- Box shows information such as: V, A, kW, kWh, sun-irradia- tion, cell-temperature, air- temperature, wind speed on the DC part of the photovolta- ic park and V, A, kW, kWh on the AC part coming from both inverters and energy meters. All data are available as graphs and numbers in for-
Model
Power supply
Option
Special features
matted tables. Eos-Box per- forms alarms control manag- ing also automatic e-mailing and SMS when proper GPRS
modem is connected. All available data can be export- ed as spread sheets for further analysis.
Type Selection
Power supply
Option
Special features
D: from 100 to 240VAC (*)
XX: none (*)
X: none (*)
(*) as standard.
Hardware
Type Embedded PC Operating system Windows XP embedded Operation Fan-less
Processor AMD LX800 500 MHz
Chipset AMD LX+CS5536+ITE8888G
BIOS Phoenix-Award 4Mbit with RPL/PXE LAN Boot ROM. SmartView and customer CMOS backup
Memory
DDR 256MB SODIMM DOM 8GB
Back-up Industrial
CompactFlash™ 8GB Type II (on request)
Communication ports
RS485 3 ports for Eos-Array bus management
1 port for Inverter, Interface protection and Energy meters
Ethernet 1 for internet/LAN
connection
1 for local access
Other ports
USB 3, for local access and ser- vice
Specifications are subject to change without notice Eos-Box DS 280909 1
