A22K-2ML-10
141529
OMRON
1
Disponible Envío el hoy

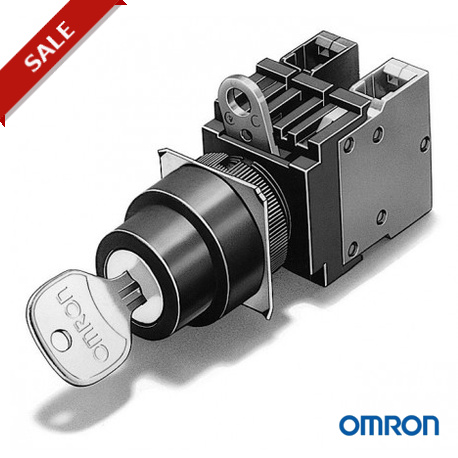

Selector llave 2 pos manual izda SPST-NA
Final de Carrera Industrial / Pulsadores > A22
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de OMRON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.

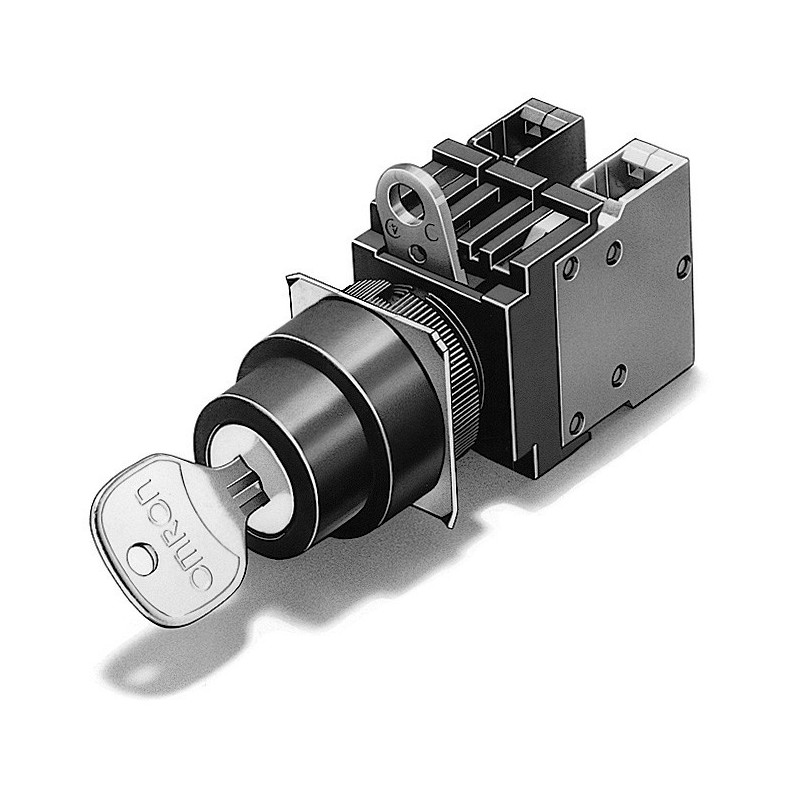

Key-type Selector Switch
A22K
Install in 22-dia. or 25-dia. Panel Cutout
• Easy mounting and removal of Switch Unit.
• Increase wiring efficiency with three-row mounting of Switch
Blocks.
• Finger protection mechanism on Switch Unit provided as a standard feature.
• Use 25-dia. ring to install in 25-dia. panel cutouts.
• Mounted using either open-type (fork-type) or closed-type
(round-type) crimp terminals.
• IP65 oil resistance
• EN60947-5-1
• UL and cUL approved (File No. E41515).
Model Number Structure
■ Model Number Legend
Completely Assembled
Shipped as a set which includes the Selector and Switch.
1 2
A22K-@-@
1 Number of Notches/Reset Method
2 Contacts
Code Notches
Reset
Key release
Code Description
2ML
2M
2AL
2 notches
method
Manual
Automatic
position
Left
Left and right
Left
10 SPST-NO (See note.)
01 SPST-NC (See note.)
11 SPST-NO + SPST-NC
20 DPST-NO
3ML
3 notches Manual Left
02 DPST-NC
3M
3MC
3AC
Automatic
Left and right
Center
Center
Note: For models with 2 notches
Contact Rating is standard
load. (Refer to the Specification
section for the A22.)
Key-type Selector Switch A22K G-107
