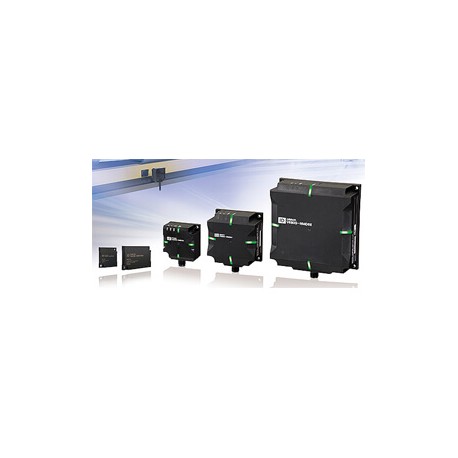

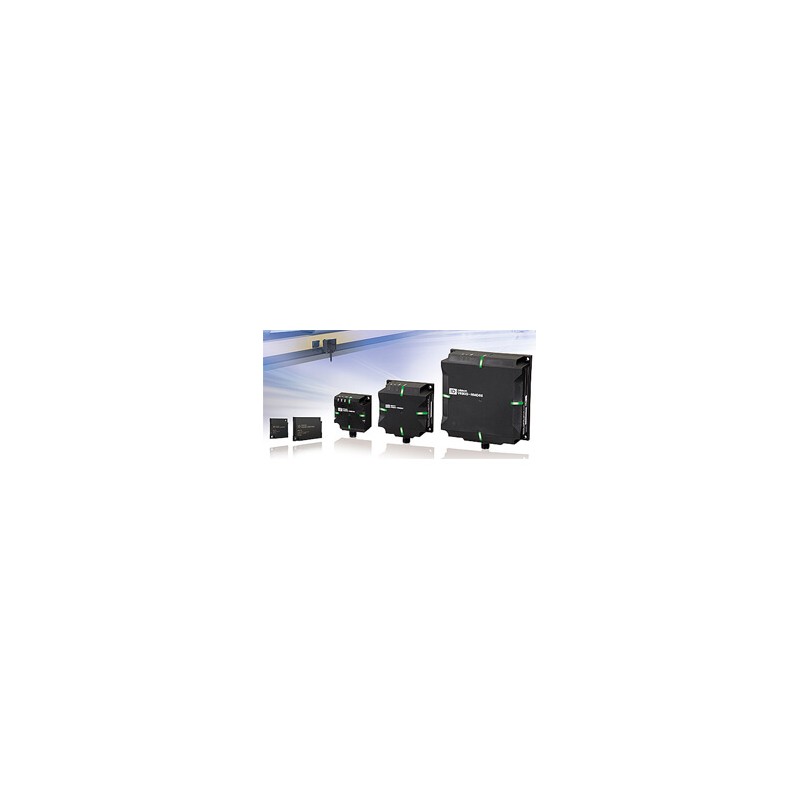

CJ1W-V600C11 V60C1035H 108924 OMRON Modulo identificación flexible para serie CJ1
CJ1W-V600C11
V60C1035H
CJ1WV600C11
OMRON
Modulo identificación flexible para serie CJ1
Equipos de Auto-identificación > V600
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de OMRON
Más Información
▲- Ethernet (Modbus TCP)
- Se puede usar el explorador Web para la configuración, control y comunicaciones con las etiquetas RFID
- Analizador RFID
- Diagnóstico de comunicación
Especificaciones y modelos disponibles
Ordering information
V680S-series
RFtag
| Type | Memory capacity | Appearance | Size | Installation | Order code |
|---|---|---|---|---|---|
| Battery-less | 2 kbytes | 40 × 40 × 5mm | For flush mounting on metallic surface | V680S-D2KF67M | |
| For flush mounting on nonmetallic surface | V680S-D2KF67 | ||||
| 86 × 54 × 10mm | For flush mounting on metallic surface | V680S-D2KF68M | |||
| For flush mounting on nonmetallic surface | V680S-D2KF68 | ||||
| 8 kbytes | 40 × 40 × 5mm | For flush mounting on metallic surface | V680S-D8KF67M 2 V680S-D8KF6_M/V680S-D8KF6_ can be usedwith V680S series Reader/Writer version 2.00 or higher. | ||
| For flush mounting on nonmetallic surface | V680S-D8KF67 2 V680S-D8KF6_M/V680S-D8KF6_ can be usedwith V680S series Reader/Writer version 2.00 or higher. | ||||
| 86 × 54 × 10mm | For flush mounting on metallic surface | V680S-D8KF68M 2 V680S-D8KF6_M/V680S-D8KF6_ can be usedwith V680S series Reader/Writer version 2.00 or higher. | |||
| For flush mounting on nonmetallic surface | V680S-D8KF68 2 V680S-D8KF6_M/V680S-D8KF6_ can be usedwith V680S series Reader/Writer version 2.00 or higher. |
V680-series
RFtag
| Type | Memory capacity | Appearance | Size | Installation | Order code |
|---|---|---|---|---|---|
| Battery-less | 1 kbyte | 20 dia. × 2.7 mm | For flush mounting on nonmetallic surface | V680-D1KP54T | |
| 34 × 34 × 3.5mm | For flush mounting on metallic surface | V680-D1KP66MT | |||
| For flush mounting on nonmetallic surface | V680-D1KP66T | ||||
| Environment-resistant type Battery-less | 95 × 36.5 × 6.5mm | For flush mounting on nonmetallic surface | V680-D1KP66T-SP | ||
| High-temperature type Battery-less | 80 dia. × t10 mm | For mounting with special attachment | V680-D1KP58HTN |
Note:
V680 series 8kbyte RF Tag (V680-D8KF67,V680-D8KF67Mand V680-D8KF68A) can communicate with V680S series Reader/Writer.For details, refer to the User's Manual (Cat. No. Z339).
Reader/Writer
| Type | Appearance | Size | Network | Order code |
|---|---|---|---|---|
| Reader/Writer | 50 × 50 × 30mm | EtherNet/IP | V680S-HMD63-EIP | |
| PROFINET | V680S-HMD63-PNT | |||
| 75 × 75 × 40mm | EtherNet/IP | V680S-HMD64-EIP | ||
| PROFINET | V680S-HMD64-PNT | |||
| 120 × 120 × 40mm | EtherNet/IP | V680S-HMD66-EIP | ||
| PROFINET | V680S-HMD66-PNT | |||
| 50 × 50 × 30mm | Modbus TCP (TCP/IP) | V680S-HMD63-ETN | ||
| 75 × 75 × 40mm | V680S-HMD64-ETN | |||
| 120 × 120 × 40mm | V680S-HMD66-ETN |
RF tag attachment
| Type | Appearance | Order code |
|---|---|---|
| For the V680-D1KP66T | V600-A86 | |
| For the V680-D1KP58HTN | V680-A80 | |
| For the V680-D1KP54T | V700-A80 |
Cable
| Type | Appearance | Length | Order code |
|---|---|---|---|
| Special connector – RJ45 | 2 m | V680S-A41 2M | |
| 5 m | V680S-A41 5M | ||
| 10 m | V680S-A41 10M | ||
| Special connector – Loose wires | 2 m | V680S-A42 2M | |
| 5 m | V680S-A42 5M | ||
| 10 m | V680S-A42 10M |
Extension cable
| Type | Appearance | Length | Order code |
|---|---|---|---|
| Special connector – Specialconnector | 10 m | V680S-A40 10M | |
| 20 m | V680S-A40 20M | ||
| 50 m | V680S-A40 50M |
Note:
The maximum extendable cable length usingthe cable and extension cable is 60 m. Only one extension cablecan be used.
Industrial switchinghubs (Recommended hubs)
| Type | Appearance | Specifications | Order code | ||
|---|---|---|---|---|---|
| Functions | No. of ports | Failure detection | |||
| Industrial switching hubs |  | Quality of Service (QoS): EtherNet/IP control data priority Failure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation | 3 | No | W4S1-03B |
 | 5 | No | W4S1-05B | ||
| 5 | Yes | W4S1-05C | |||
RFID Units
| RFID Units | Appearance | Product name | Amplifier/Antenna | No. of unit numbers used | Order code |
|---|---|---|---|---|---|
| NX-series RFID Units | RFID Units | V680 series | 1 | NX-V680C1 | |
| 2 | NX-V680C2 |
Specifications
V680S-series
RFtag (2-kbyte Memory)
| Item | V680S-D2KF67 | V680S-D2KF67M | V680S-D2KF68 | V680S-D2KF68M |
|---|---|---|---|---|
| Memory capacity | 2,000bytes (user area) | |||
| Memory type | FRAM | |||
| Data retention | 10 years after writing (85°C orless) | |||
| Memory life | One trillion writes for each block(85°C or less), Access frequency 2 : One trillion accessesThe number of accesses is thetotal number of reads and writes. | |||
| Ambient operating temperature | −20 to 85°C (with no icing) | |||
| Ambient storage temperature | −40 to 125°C (with no icing) | |||
| Ambient operating humidity | 35% to 85% | |||
| Degree of protection | IP68 (IEC 60529:2001), Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1) 2 .Oil resistance has been tested using a specific oil as defined in the OMRON test method. IPX9K (DIN 40 050) | |||
| Vibration resistance | No abnormality after applicationof 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s²,10 sweeps each in X, Y, and Z directions for 15 minutes each | No abnormality after applicationof 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s²,10 sweeps each in X, Y, and Z directions for 11 minutes each | ||
| Shock resistance | No abnormality after applicationof 500 m/s², 3 times each in X, Y, and Z directions (Total: 18 times) | |||
| Dimensions (W×H×D) | 40 × 40 × 5mm | 86 × 54 × 10mm | ||
| Materials | Exterior: PPS resin | |||
| Weight | Approx. 11.5 g | Approx. 12 g | Approx. 44 g | Approx. 46 g |
| Metal countermeasures | None | Provided | None | Provided |
Note:
For details, refer to the User’s Manual(Cat. No. Z339).
RF Tag (8-kbyteMemory)
| Item | V680S-D8KF67 | V680S-D8KF67M | V680S-D8KF68 | V680S-D8KF68M |
|---|---|---|---|---|
| Memory capacity | 8,192 bytes (user area) | |||
| Memory type | FRAM | |||
| Data retention | 10 years after writing (85°C orless) | |||
| Memory life | One trillion writes for each block(85°C or less), Access frequency 2 : One trillion accessesThe number of accesses is thetotal number of reads and writes. | |||
| Ambient operating temperature | −20 to 85°C (with no icing) | |||
| Ambient storage temperature | −40 to 125°C (with no icing) | |||
| Ambient operating humidity | 35% to 85% | |||
| Degree of protection | IP68 (IEC 60529:2001), Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1) 2 .Oil resistance has been tested using a specific oil as defined in the OMRON test method. IPX9K (DIN 40 050) | |||
| Vibration resistance | No abnormality after applicationof 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s²,10 sweeps each in X, Y, and Z directions for 15 minutes each | No abnormality after applicationof 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s²,10 sweeps each in X, Y, and Z directions for 11 minutes each | ||
| Shock resistance | No abnormality after applicationof 500 m/s², 3 times each in X, Y, and Z directions (Total: 18 times) | |||
| Dimensions (W×H×D) | 40 × 40 × 5mm | 86 × 54 × 10mm | ||
| Materials | Exterior: PPS resin | |||
| Weight | Approx. 11.5 g | Approx. 12 g | Approx. 44 g | Approx. 46 g |
| Metal countermeasures | None | Provided | None | Provided |
Note:
For details, refer to the User’s Manual(Cat. No. Z339).
V680-series
RFTag (1-kbyte Memory)
| Item | V680-D1KP54T | V680-D1KP66T | V680-D1KP66MT | V680-D1KP66T-SP |
|---|---|---|---|---|
| Memory capacity | 1,000 bytes (user area) | |||
| Memory type | EEPROM | |||
| Data retention time | 10 years after writing (85°C or less), 0.5 year after writing (85 to 125°C) Total data retention at high temperatures exceeding 125°C is 10 hours 2 After storing data at high temperatures, rewrite the data even if changes are not required. High temperatures are those exceeding 125°C up to 180°C. | 10 years after writing (85°C or less) | ||
| Write endurance | 100,000 writes for each block(25°C) | |||
| Ambient operating temperature (during transmission) | −25 to 85°C (with no icing) | During RF Tag communications: −25 to 70°C (with no icing)Not during RF Tag communications: −40 to 110°C (with no icing) | ||
| Ambient storage temperature (during data backup) | −40 to 125°C (with no icing) Heat resistance:1,000 thermal cycles each of 30 minutes at −10°C/150°C, High temperature storage: 1,000 hours at 150°C 2 150°C heat resistance: The heat resistance has been checked at 150°C for up to 1,000 hours, and thermal shock has been checked through testing 1,000 thermal cycles each of 30 minutes at –10/150°C. (Test samples: 22, defects: 0) 200 thermal cycles each of 30 minutes at −10°C/180°C, High temperature storage: 200 hours at 180°C 2 180°C heat resistance: The heat resistance has been checked at 180°C for up to 200 hours, and thermal shock has been checked through testing 200 thermal cycles each of 30 minutes at –10°C/180°C. (Test samples: 22, defects: 0) | −40 to 110°C (with no icing) | ||
| Ambient operating humidity | 35 to 95% | |||
| Degree of protection | IP67 (IEC 60529:2001) Oil resistance equivalent to IP67G(JIS C 0920:2003, Appendix 1) 2 Oil resistance has been tested using a specific oil as defined in the OMRON test method. | IP68 (IEC 60529:2001) Oil resistance equivalent to IP67G(JIS C 0920:2003, Appendix 1) 2 Oil resistance has been tested using a specific oil as defined in the OMRON test method. | IP67 | |
| Vibration resistance | No abnormality after application of 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s², 10 sweeps each in X, Y, and Z directions for 15 minutes each | |||
| Shock resistance | No abnormality after applicationof 500 m/s², 3 times each in X, Y, and Z directions (Total: 18 times) | |||
| Appearance | 20 dia. × 2.7 mm | 34 × 34 × 3.5mm | 95 × 36.5 × 6.5 mm (excluding protruding parts) | |
| Materials | PPS resin | Exterior: PFA fluororesin RF Tag filling:PPS resin | ||
| Weight | Approx. 2 g | Approx. 6 g | Approx. 7.5 g | Approx. 20 g |
| Metal countermeasures | None | None | Provided | None |
Note:
For details, refer to the User's Manual(Cat. No. Z339).
RF Tag (1-kbyteMemory with High-temperature Capability)
| Item | V680-D1KP58HTN |
|---|---|
| Memory capacity | 1,000 bytes (user area) |
| Memory type | EEPROM |
| Data retention | 10 years after writing (85°C or less), 0.5year after writing (85 to 125°C) Total data retention at hightemperatures exceeding 125°C is 10 hours 2 After storing data athigh temperatures, rewrite the data even if changes are not required.High temperatures are those exceeding 125°C up to 180°C. |
| Write endurance | 100,000 writes for each block (25°C) |
| Ambient operating temperature (during transmission) | −25 to 85°C (with no icing) |
| Ambient storage temperature (during data backup) | −40 to 250°C (with no icing) (Data retention:−40 to 125°C) |
| Ambient storage humidity | No restrictions. |
| Degree of protection | IP67 (IEC 60529:2001) Oil resistanceequivalent to IP67G (JIS C 0920:2003, Appendix 1) 2 Oil resistancehas been tested using a specific oil as defined in the OMRON testmethod. |
| Vibration resistance | No abnormality after application of 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s², 10 sweeps each in X, Y, and Z directions for 15 minutes each |
| Shock resistance | No abnormality after application of 500 m/s²,3 times each in X, Y, and Z directions (Total: 18 times) |
| Materials | Exterior: PPS resin |
| Weight | Approx. 70 g |
Note:
For details, refer to the User's Manual(Cat. No. Z339).
Reader/Writer
EtherNet/IP,PROFINET
| Item | V680S-HMD63-EIP V680S-HMD63-PNT | V680S-HMD64-EIP V680S-HMD64-PNT | V680S-HMD66-EIP V680S-HMD66-PNT |
|---|---|---|---|
| Dimensions (W×H×D) | 50 × 50 × 30 mm (excluding protruding parts and cables) | 75 × 75 × 40 mm (excluding protruding parts and cables) | 120 × 120 × 40 mm (excluding protruding parts and cables) |
| Power supply voltage | 24 VDC (−15% to 10%) | ||
| Consumption current | 0.2 A max. | ||
| Ambient operating temperature | −10 to +55°C (with no icing) | ||
| Ambient operating humidity | 25% to 85% (with no condensation) | ||
| Ambient storage temperature | −25 to 70°C (with no icing) | ||
| Ambient storage humidity | 25% to 85% (with no condensation) | ||
| Insulation resistance | 20 MΩ min. (at 500 VDC) betweencable terminals and case | ||
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minbetween cable terminals and case | ||
| Vibration resistance | No abnormality after application of 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s², 10 sweeps in each of 3 axis directions (up/down, left/right, and forward/backward) for 11 minutes each | ||
| Shock resistance | No abnormality after applicationof 500 m/s², 3 times each in 6 directions (Total: 18 times) | ||
| Degree of protection | IP67 (IEC 60529: 2001) Oilresistance equivalent to IP67F (JIS C 0920: 2003, Appendix 1) 2 Oilresistance has been tested using a specific oil as defined in theOMRON test method. | ||
| Materials | Case: PBT resin, Filled resin:Urethane resin | ||
| Mass | Approx. 240 g | Approx. 390 g | Approx. 760 g |
| Installation method | Reader/Writer: Two M4 screws (Use a screw of 12 mm or more in length.) Branch cable joint:One M4 screws | Four M4 screws (Use a screw of 12 mm or more in length.) | |
| Host device communications interface | Ethernet 10BASE-T/100BASE-TX | ||
| Host device communications protocol | EtherNet/IP, PROFINET | ||
| Accessories | Instruction Sheet, Descriptionof Regulations and Standard, IP address label | ||
Note:
The 0.5 m cable with two M12 connectorsis attached to the Reader/Writer. The cable cannot be removed.
ModbusTCP
| Item | V680S-HMD63-ETN | V680S-HMD64-ETN | V680S-HMD66-ETN |
|---|---|---|---|
| Dimensions | 50 × 50 × 30 (excluding protruding parts) | 75 × 75 × 40 (excluding protruding parts) | 120 × 120 × 40 mm (excluding protruding parts) |
| Power supply voltage | 24 VDC (–15% to 10%) | ||
| Consumption current | 0.2A max. | ||
| Ambient operating temperature | –10 to 55°C (with no icing) | ||
| Ambient operating humidity | 25% to 85% (with no condensation) | ||
| Ambient storage temperature | −25 to 70°C (with no icing) | ||
| Ambient storage humidity | 25% to 85% (with no condensation) | ||
| Insulation resistance | 20 MΩ min. (at 500 VDC) betweencable terminals and case | ||
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minbetween cable terminals and case | ||
| Vibration resistance | No abnormality after application of 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s², 10 sweeps in each of 3 axis directions (up/down, left/right, and forward/backward) for 11 minutes each | ||
| Shock resistance | No abnormality after applicationof 500 m/s², 3 times each in 6 directions (Total: 18 times) | ||
| Degree of protection | IP67 (IEC 60529: 2001) Oilresistance equivalent to IP67F (JIS C 0920: 2003, Appendix 1) 2 Oilresistance has been tested using a specific oil as defined in theOMRON test method. | ||
| Materials | Case: PBT resin, Filled resin:Urethane resin | ||
| Mass | Approx. 120 g | Approx. 270 g | Approx. 640 g |
| Installation method | Two M4 screws (Use a screw of 12 mm or more in length.) | Four M4 screws (Use a screw of 12 mm or more in length.) | |
| Host device communications interface | Ethernet 10BASE-T/100BASE-TX | ||
| Host device communications protocol | MODBUS TCP | ||
| Accessories | Instruction sheet, Descriptionof Regulations and Standard, IP address label, Ferrite core 2 Providedonly with the V680S-HMD66-ETN. | ||
System configuration
The below shows theconfiguration for 1 to 1 connection. Multiple Reader/Writers canbe connected by using a switching hub.
EtherNet/IP,PROFINET
Modbus TCP
