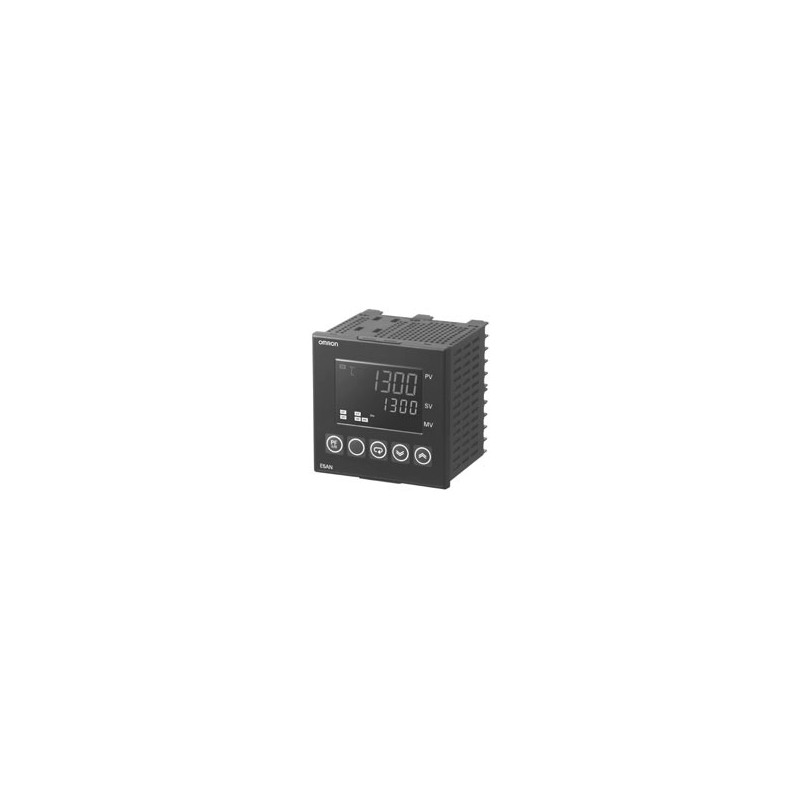

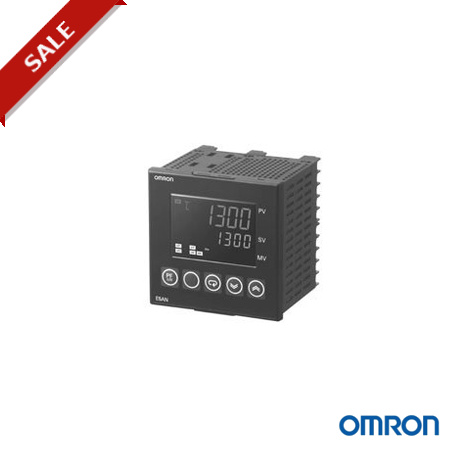

E5EN-R3MT-500-N AC100-240
243735
OMRON
1
Disponible Envío el hoy
Termopar/Pt100 3 Alarmes Saída Relé 48x96
Temperatura y Procesos
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de OMRON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Basic-type Digital Temperature Controller
E5AN/E5EN (96 x 96 mm and 48 x 96 mm)
New 96 x 96-mm and 48 x 96-mm Basic Temperature Controllers with
Enhanced Functions and Performance. Improved Indication Accuracy and
Preventive Maintenance Function.
• Indication Accuracy
Thermocouple input: ±0.3% of PV (previous models: ±0.5%) Pt input: ±0.2% of PV (previous models: ±0.5%)
Analog input: ±0.2% FS (previous models: ±0.5%)
• A PV/SV-status display function can be set to alternate between displaying the PV or SV and the status of the Temperature Controller (auto/manual, RUN/STOP and alarms).
• Preventive maintenance for relays using a Control Output
ON/OFF Counter.
• Three-level display that simultaneously displays the PV, SV, and MV.
• One-touch operation with PF Key that can be assigned to auto/manual, RUN/STOP, or other functions.
Main I/O Functions
96 × 96 mm
E5AN
48 × 96 mm
E5EN
Refer to Safety Precautions on page 18.
Sensor Inputs
Event Inputs
• None
• Two
E5AN E5EN
3-line Display ✽
Simultaneously displays set items,
such as the PV, SV, and MV.
✽ A 2-line display when shipped from the factory. A
3-line display is activated if parameters are initialized. For details on the third display level, refer to the User’s Manual, Basic Type (Cat. No. H156).
4 digit, 11 segments Display
• Universal thermocouple/Pt inputs
(Models with temperature inputs)
• Anal og current/voltage inputs
(Models with analog inputs)
Indication Accuracy
• Thermocouple input: ±0.3% of PV
• Pt input: ±0.2% of PV
• Analog input: ±0.2% FS
Sampling Period and control update
• 250 ms
Control Output 2
• Voltage output
(for driving SSR)
• Long-life relay output (hybrid)
Control Output 1
• Relay output
3 auxiliary outputs
• Auto/manual switching
• Temperature Controller
status display
• Simple program function
• Control output ON/OFF
count alarm
• PV change rate alarm
• Models optional available with RS-485 or RS-232C communications
PF Key
(Programmable function key)
• Voltage output (for driving SSR)
• Current output
This data sheet is provided as a guideline for selecting products. Be sure to refer to the following user manuals for application precautions and other information required for operation before attempting to use the product.
E5CN/E5AN/E5EN Digital Temperature Controllers User's Manual Basic Type (Cat. No. H156) E5CN/E5AN/E5EN Digital Temperature Controllers Communications Manual Basic Type (Cat. No. H158)
Basic-type Digital Temperature Controller E5AN/E5EN 1
Título: | Tamaño: | Tipo: |
---|---|---|
PDF CATALOGO OMRON AUTOMATIZACION ES.pdf | 30 Mbytes | |
Termopar/Pt100 3 Alarmes Saída Relé 48x96 - OMRON - E5EN-R3MT-500-N AC100-240 - 243735 | 2 Mbytes |
