7GN1269U
GN1269U
LOVATO ELECTRIC
1

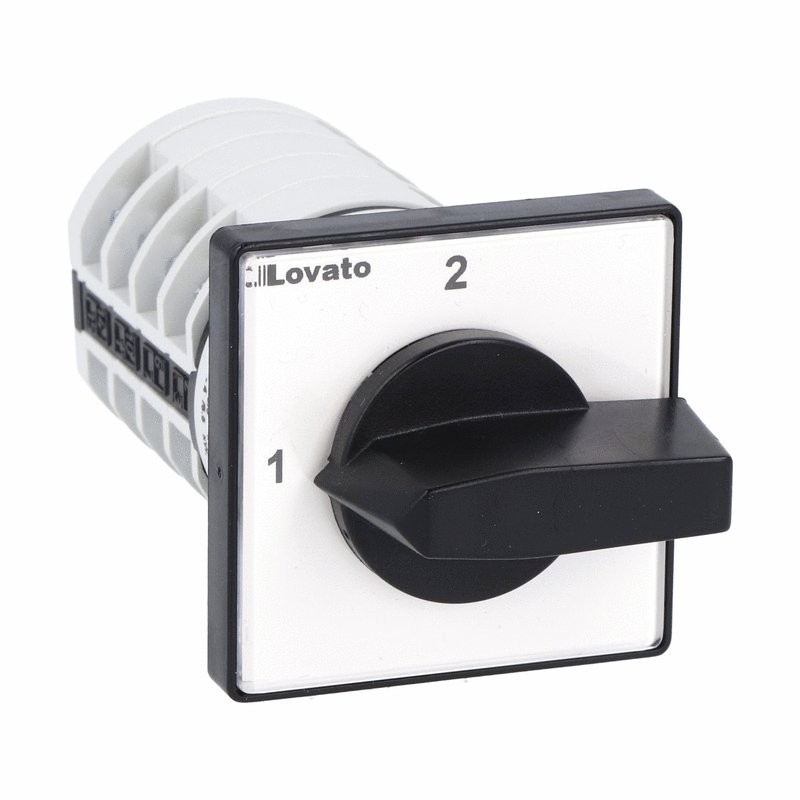

Conmutador "1-2" 4 polos GN69 12 A Modelo U 48x48
INTERRUPTOR DE LEVA GIRATORIO SERIE 7GN, INTERRUPTOR DE CAMBIO SIN 0 4 POLOS 16A, PARA MONTAJE FRONTAL CON ASA NEGRA, PLACA FRONTAL 90X90MM
Interruptores Rotativos Conmutadores Inversores - LOVATO ELECTRIC
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Código de pedido | 7GN1269U |
Peso [g] | 123.8 |
Unidades de embalaje | |
Cantidad de pedido multi-embalaje | |
Dimensiones de embalaje [mm] | 050X050X102 |
Volumen [cm³] | 255 |
Código de barras [EAN13] | 3850144006911 |
Código HS | 85365080 |
Product designation | Rotary cam switches | |||
Product type designation | 7GN12 | |||
General characteristics | ||||
Switching diagram | 69 - Changeover switch without 0 4 poles | |||
N° of elements | 4 | |||
Mounting form | Front mounting with black handle (U) | |||
Contact characteristics | ||||
Rated insulation voltage Ui | ||||
IEC/EN | V | 690 | ||
UL/CSA | V | 600 | ||
Rated impulse withstand voltage Uimp | kV | 6 | ||
Conventional free air thermal current Ith | ||||
IEC/EN | A | 16 | ||
UL/CSA | A | 15 | ||
Rated operational voltage | V | 480 | ||
Rated operational impulse voltage | kV | 4 | ||
Maximum fuse size for short-circuit protection In (gG) | ||||
10kA | A | 16 | ||
15kA | A | 10 | ||
25kA | A | 10 | ||
Rated short time current Icw | ||||
1s | A | 200 | ||
Conductivity | 10/5 mA/V | |||
Operational current Ie IEC/EN | ||||
AC1/AC21A | ||||
A | 16 | |||
AC15 | ||||
110V | A | 10 | ||
220/230V | A | 8 | ||
380/400V | A | 4 | ||
660/690V | A | 1.5 | ||
Rated operational power in AC | ||||
Three-phase AC3 | ||||
220/230V | kW | 2.5 | ||
380/440V | kW | 4 | ||
500/690V | kW | 5.5 | ||
Single-phase AC3 | ||||
110V | kW | 0.8 | ||
220/230V | kW | 1.5 | ||
380/440V | kW | 2.2 | ||
Three-phase AC23A | ||||
220/230V | kW | 3 | ||
380/440V | kW | 5.5 | ||
500/690V | kW | 7.5 | ||
Single-phase AC23A | ||||
110V | kW | 0.8 | ||
220/230V | kW | 1.7 | ||
380/440V | kW | 3 | ||
Rated operational current in DC | ||||
DC21A | ||||
48V | A | 12 | ||
60V | A | 12 | ||
110V | A | 4 | ||
220V | A | 0.6 | ||
440V | A | 0.25 | ||
DC23A (poles in series) | ||||
24V | A | 10 (1) | ||
48V | A | 10 (2) | ||
60V | A | 10 (3) | ||
110V | A | 5 (3) | ||
220V | A | 5 (4) | ||
DC13 | ||||
24V | A | 12 | ||
48V | A | 10 | ||
60V | A | 8 | ||
110V | A | 1 | ||
220V | A | 0.4 | ||
440V | A | 0.15 | ||
Power dissipation | W | 0.8 | ||
Mechanical features | ||||
Terminals screw | M3 | |||
Tightening torque for terminals max | Nm | 0.5 | ||
Conductor size | ||||
AWG - Rigid cable | ||||
min | AWG | 20 | ||
Max | AWG | 12 | ||
AWG - Flexible cable | ||||
min | AWG | 20 | ||
Max | AWG | 14 | ||
Conductor size (IEC) - Flexible cable | ||||
min | mm² | 0.5 | ||
Max | mm² | 2.5 | ||
Conductor size (IEC) - Rigid cable | ||||
min | mm² | 0.5 | ||
Max | mm² | 2.5 | ||
Mechanical life | cycles | 3x10⁶ | ||
UL technical data | ||||
Motor power for direct-on-line control | ||||
for three-phase motor | ||||
120V | HP | 1.5 | ||
240V | HP | 3 | ||
for single-phase motor | ||||
120V | HP | 0.5 | ||
240V | HP | 1 | ||
Ambient conditions | ||||
Temperature | ||||
Operating temperature | ||||
min | °C | -25 | ||
max | °C | +55 | ||
Storage temperature | ||||
min | °C | -40 | ||
max | °C | +70 | ||
Resistance & Protection | ||||
Frontal IP degree | IP40 | |||
Terminals IP degree | IP00 | |||
ETIM classification | ||||
ETIM 8.0 | EC001029 - Selector switch, complete |
