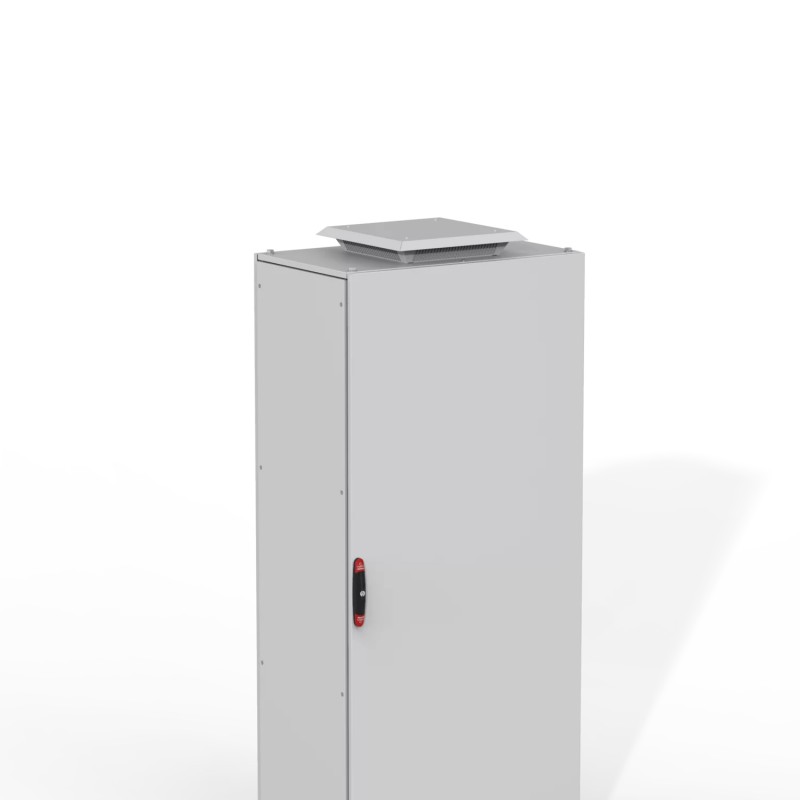

RFU7005R5 nVent HOFFMAN Ventilador de techo, 550 m3/h RFU7005R5

Descripción:

Unidad de ventilación de techo para ser instalada en la panel superior del armario, proporciona gran caudal de aire. De fácil instalación con un sistema de conexión rápida. El corte es el mismo para los diferentes valores de caudal. La eficacia de filtración es del 81% para las unidades de IP 54.

Material:

Acero pintado y termoplástico moldeado por inyección (ABS-FR) autoextinguible, UL94VO.

Rango de temperatura:

-15 °C a +55 °C.

Tipo de conexión:

Terminal.

Acabado:

RAL 7035.

Cantidad por embalaje: :

Una unidad de ventilación de techo.

Feature:

Roof filter fan unit with a click-in installation feature.

Advantage:

The high quality fan unit is reliable and can provide ventilation to enclosure's that do not have enough space on the door or side panels whether standalone or as part of an enclosure assembly.

Benefit:

Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the enclosure and the reliable motor ensures that there is constant ventilation. Floor standing enclosures can be ventilated independently of each other, if required. This avoids ventilating the entire enclosure assembly, reducing the amount of energy required, saving unnecessary costs. The click-in feature reduces the customer's labour cost due to the ease of installation.

Comment:

The roof filter fan unit should be installed together with at least one exhaust filter, EFA.
