ARF04015R5 nVent HOFFMAN Tejadillo, 400x155 ARF04015R5

Descripción:

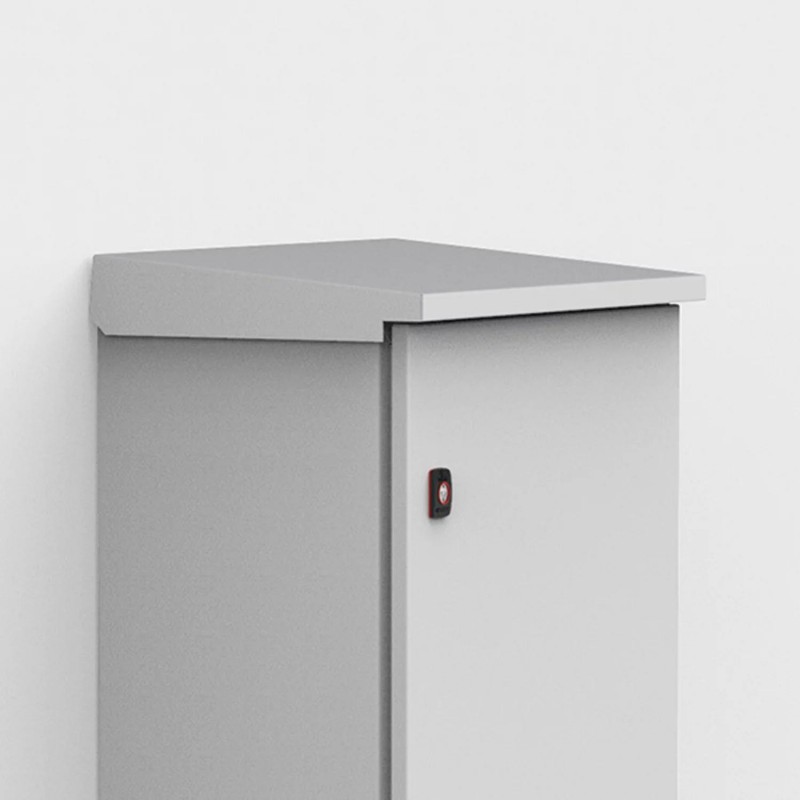

Para ser fijado como protección exterior en un armario instalado individualmente. El tejado está ligeramente inclinado y tiene vierteaguas. Requiere mecanizado. Aumenta las dimensiones del armario en 60 mm de alto, 20 mm de ancho y 20 mm de fondo.

Material:

Chapa de acero de 1,5 mm.

Acabado:

Pintado al polvo, texturado, color gris RAL 7035.

Cantidad por embalaje: :

1 tejadillo con accesorios de montaje.

Información adicional:

Si el tejadillo está expuesto a altos niveles de radiación UV, debe pintarse con pintura 100% poliester. Se puede pedir como accesorio especial. La ARF no es compatible con las bisagras MMH de 180º.

Feature:

Mild steel rain hood for mild steel wall mounted enclosures.

Advantage:

The rain hood is mounted on top of the enclosure and provides shelter via a sloped roof. The rain hood features a drip strip that protects the enclosure's door gasket from the accumulation of water while also shielding it from UV radiation.

Benefit:

The rain hood protects installed components from water as it removes the risk of accumulated water on top of the gasket, dripping into the enclosure when the door is opened.

Comment:

Wall mounted enclosures require machining before the rain hood can be mounted. Rain hoods are not compatible with combined enclosures. The overall dimensions of the enclosure will increase by 60mm in height, 20mm in width and 20mm in depth. If the enclosure is installed in an outdoor environment, then the rain hood will require a harsh environment power coating, which will provide better protection against corrosion and UV radiation.
