MSVH2000
ELDON
1
Disponible Envío el hoy

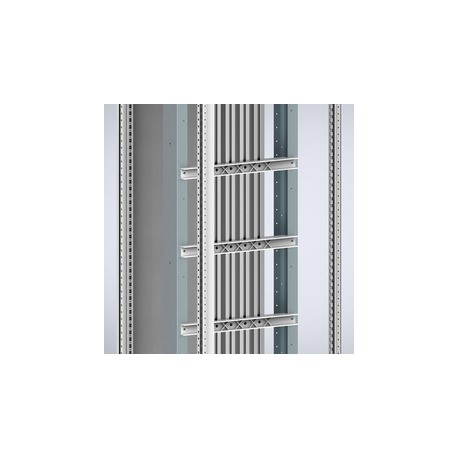

Soporte barras posterior, 2000 MSVH2000
Soporte barras posterior, 2000, para secciones plug-in, hasta 1600A

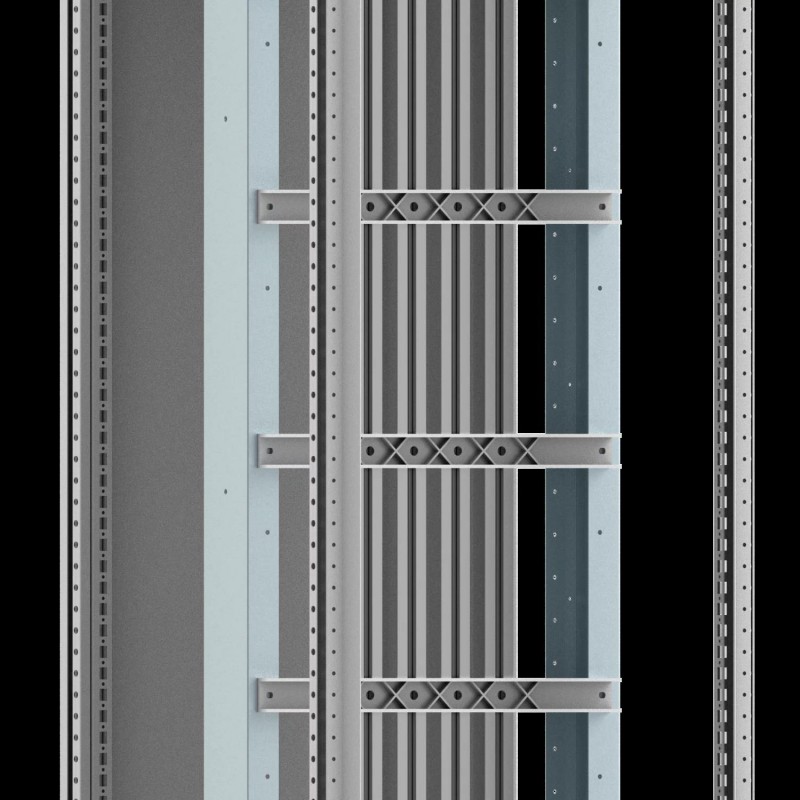

These vertical plug-in distribution busbar supports, MSVH, should be mounted on the enclosure behind the plug-in cover. They are available of the shelf and tested according to IEC 61439.
Sistemas de distribución de energía / conmutadores > Accesorios para barras colectoras
Potencia y distribución
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de ELDON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Descripción: | Busbar supports up to 1600A to be mounted vertically behind the plug-in compartments. Rated short-time withstand current up to 35KA with rear supports and up to 50KA with rear and front supports. Mounts to the vertical profiles included in the rear cover plate for plugin sections MSSB. |
Material: | Polycarbonate reinforced with 10% of glass material. |
Suministro: | 4 busbar support with mounting material. |
Feature: | Vertical plug-in distribution busbar supports, are to be mounted onto the enclosure, behind a plug-in cover. |
Advantage: | The standard supports are available off the shelf and have been tested according to IEC 61439. |
Benefit: | A flexible and reliable solution that ensures design, procurement and installation can be done efficiently reducing the labour time required. |
Comment: | The supports should be mounted onto the plug-in system vertical profiles (MSSB). Plug-in busbars (MSBS), must be used in conjunction with these supports. |
Título: | Tamaño: | Tipo: |
---|---|---|
MSVH2000 MSVH2000 ES_MSVH1800.pdf | 189 Kbytes | |
Descargar catálogo general |
