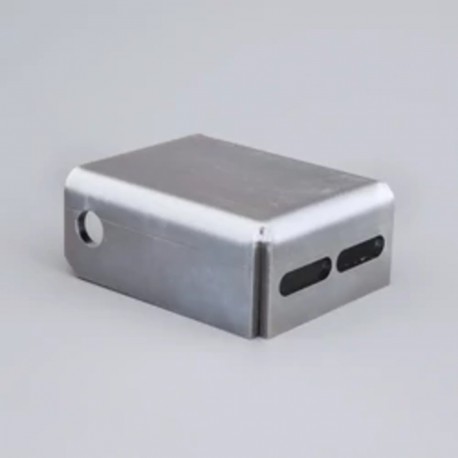

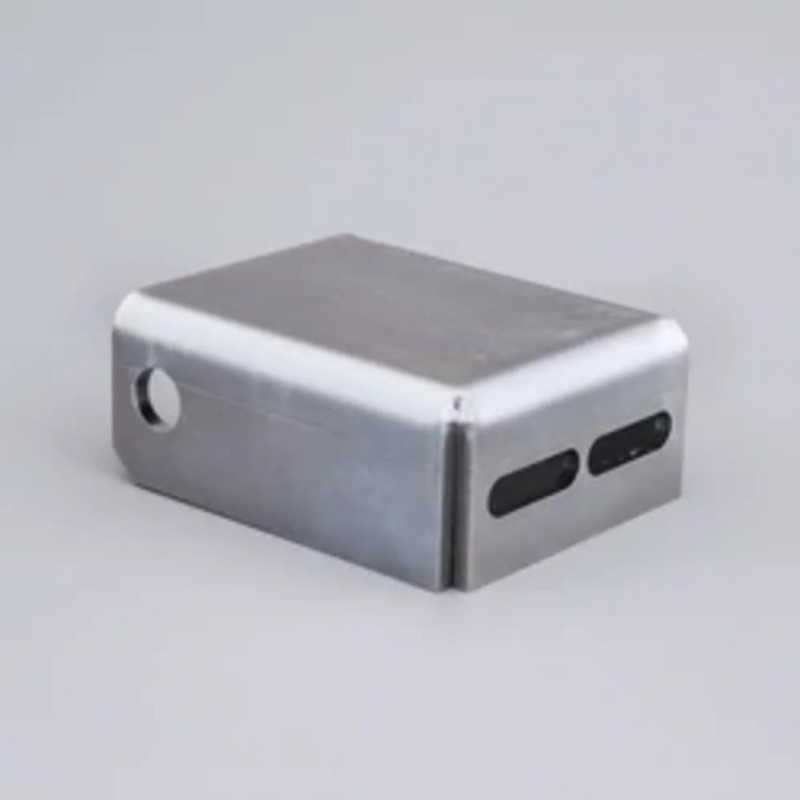

SFBP03 nVent HOFFMAN Soporte marco articul. parcial SFBP03

Descripción:

Permite el montaje de los marcos giratorios de altura parcial en los armarios de acero autoportantes combinables y compactos con acceso completo a la apertura del armario. El marco giratorio puede ser montado con apertura a derechas o a izquierdas.

Material:

Acero cincado de 3 mm.

Cantidad por embalaje: :

Un kit completo para un marco giratorio.

Instrucciones de montaje:

Se puede utilizar en armarios de doble puerta por mediación del perfil divisor VB/CDV. Para ajuste en profundidad se utiliza el perfil CLPK.

Feature:

Zinc plated transversal support bars for 19" partial swing frames mounted within wall mounted and floor standing enclosures.

Advantage:

The transversal support bars allows 19" partial swing frames to be mounted within wall mounted and floor standing enclosures. The swing frame can be adjusted in height by 25 mm increments, within floor standing enclosures.

Benefit:

The support bars provide customers with a strong fixation method for the partial swing frame as it is mounted directly to the enclosures frame or body. Procurement is simplified as the same accessory can be used on both wall mounted and floor standing enclosures.

Comment:

Vertical mounting profiles, AVB, are required to be mounted within wall mounted enclosures before the transversal support bars can be fixed. If the bars require adjustment in depth within floor standing enclosures, then click-in profiles, CLPK, are required.
