MSFP2200
ELDON
2
Disponible Envío el hoy

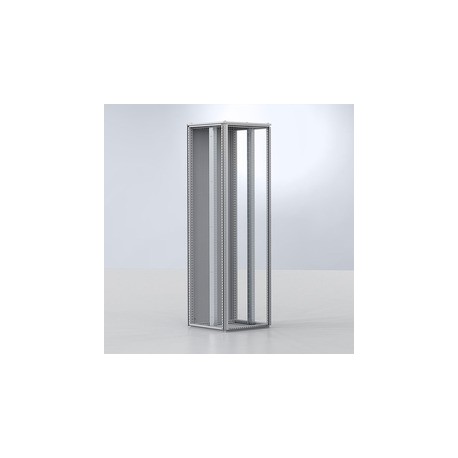

Perfiles vert. sis. fijo, 2200 MSFP2200
Perfiles vert. sis. fijo, 2200, 2 perfiles verticales. 2 unidades
These galvanised vertical profiles, MSFP, are available off the shelf and have two mounting levels. The first is for components and the second is for distribution busbar supports. The profiles have been tested to IEC 61439.
Sistemas de armarios eléctricos > Perfil (armario de control)
Potencia y distribución
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de ELDON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Descripción: | Vertical profiles to build up fix systems. It can be mounted with or without sidepanels MSPS. These profiles lets us to mount MCCBs in mounting plates MSMPN, or DIN rails for modular components with the accessory fix MSADP or adjustable MSMPA01. The busbar supports in the rear of the compartements, MSFH, mount directly to the profile. |
Material: | 1.55 mm galvanized steel. |
Suministro: | 2 pieces with mounting material. |
Feature: | Galvanized vertical profiles for a fix system, with two mounting levels, the first for installing components and the second for mounting distribution busbar supports. |
Advantage: | The profiles are available off the shelf, and have been tested according to IEC 61439. The profiles form the base, to which a fix system can be built onto. The fix system can be upgraded from form 1 segregation to form 4, and is closed using either front panels or partial doors. |
Benefit: | A flexible and reliable solution that ensures procurement, design and installation can be done efficiently. |
Título: | Tamaño: | Tipo: |
---|---|---|
MSFP2200 MSFP2200 ES_MSFP1800.pdf | 123 Kbytes | |
Descargar catálogo general |
