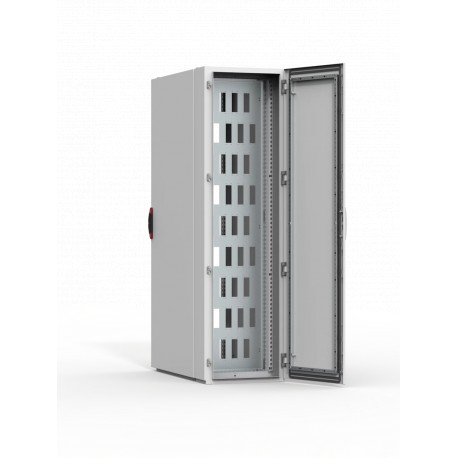

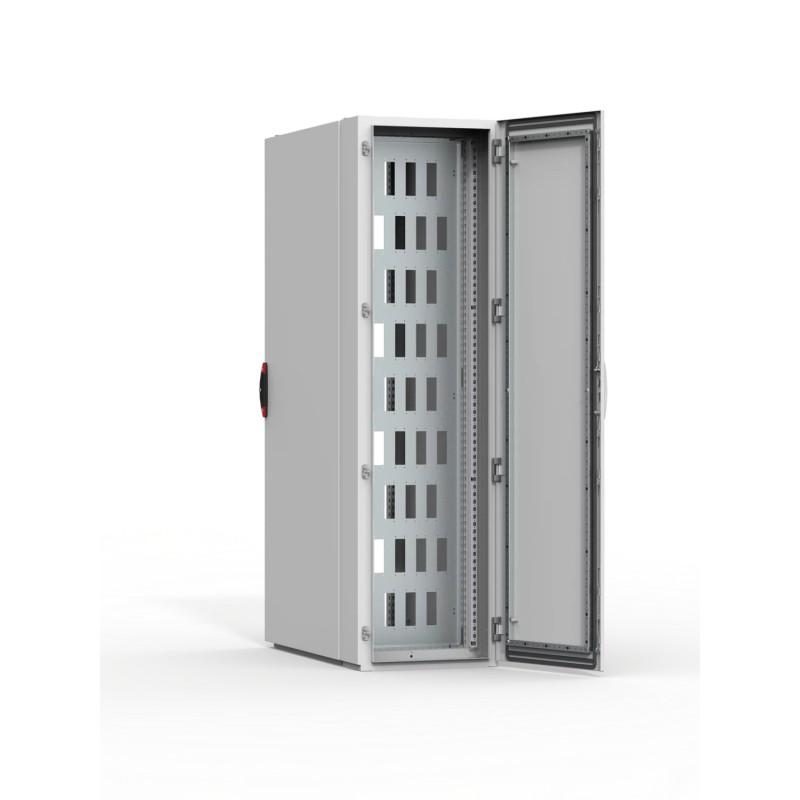

MM1806 nVent HOFFMAN Placa de conex. cen., 1800x600 MM1806

Descripción:

Placa para conectores entre dos armarios o para ser utilizada en combinación con puerta lateral separada (DNSR). Aperturas para conectores de 24 pin. Para conectores de 16 pin necesita tapa adaptadora MMG. Necesita soportes de montaje CCJ 12.

Material:

Acero cincado de 2mm.

Cantidad por embalaje: :

1 pieza.

Instrucciones de montaje:

Añada CCJ12 para montaje en el marco. Añada la puerta lateral separada DNSR para cubrir y proteger las conexiones. Añada tapas MMG para cubrir taladros no usados o adaptar diferentes tamaños de conectores.

Feature:

Pre-machined zinc plated steel marshalling plate for combinable floor standing enclosures.

Advantage:

The marshalling plate can be mounted easily either between two bayed enclosures or between an enclosure and a raised side door. The plate allows for 24-pin connectors to be installed.

Benefit:

Connectors can be installed easily which will reduce the required labour time. If a side door has been used, operations can be carried out while the main enclosure maintains its protection degree.

Comment:

Separation brackets, CCJ, are required in order to mount the marshalling plate. Cover plates, MMG, can be used if the pin cut-outs need to be adapted or covered up. A raised door, DNSR, can be mounted in combination with the marshalling plate.
