MSPS2003
ELDON
1
Disponible Envío el hoy

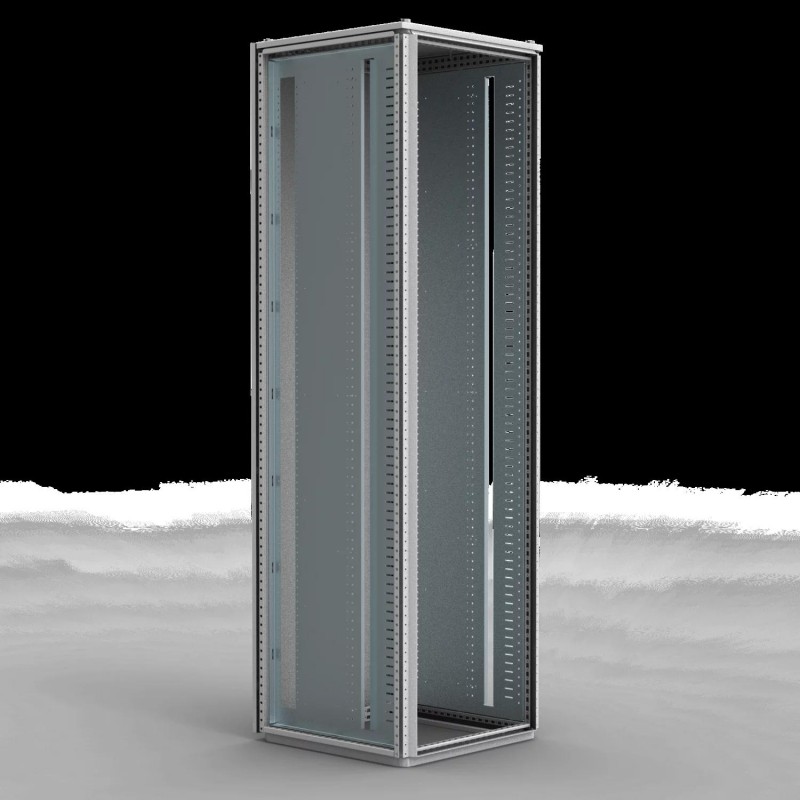

Paneles lat. internos,2000x300 MSPS2003
Paneles lat. internos,2000x300, para sección de cables, d=337
The galvanised steel internal side panels, MSPS, segregate vertical sections and allow for mounting of busbar supports, MHSH, as well as other accessories. It is a flexible solution both for fix and plug in systems and allows for meeting form 4 segregation according to IEC 61439.
Sistemas de armarios eléctricos > Panel lateral/trasero (armario de control)
Potencia y distribución
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de ELDON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Descripción: | Internal side panels to build up sections as from the enclosure frame. Frame hole pattern is needed in front, rear, top and bottom. |
Material: | 1.5 mm galvanized steel. |
Suministro: | 1 piece with mounting material. |
Feature: | Galvanized steel internal side panels, with mounting facilities. |
Advantage: | The side panels segregate vertical sections, allowing customer's to mount main busbar supports (MSHS) and other accessories. |
Benefit: | A flexible solution for both fix and plug-in systems. The side panels allow customers to build up power distribution configurations to meet form 4 segregation according to IEC 61439. |
Comment: | Hole patterns are required in the top, bottom, front and rear of the enclosure, in order to mount the internal side panels. |
Título: | Tamaño: | Tipo: |
---|---|---|
MSPS2003 MSPS2003 ES_MSPS1803.pdf | 118 Kbytes | |
Descargar catálogo general |
