OIDES414705 nVent HOFFMAN HMI extendido, 415x470x55 OIDES414705

Descripción:

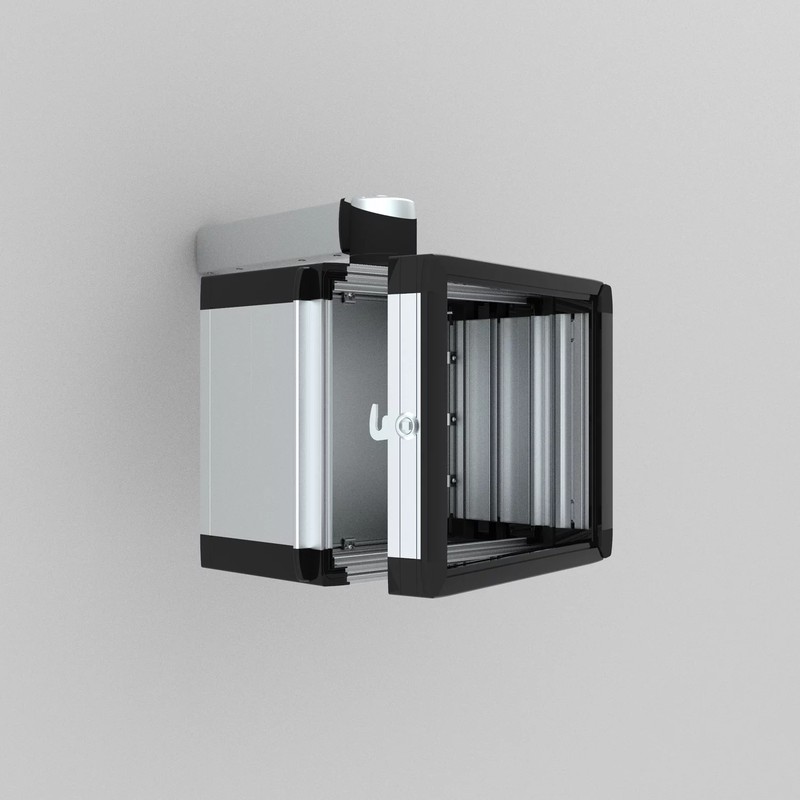

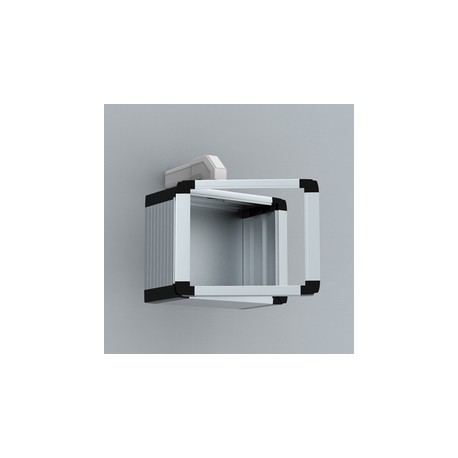

Panel OICP con perfiles de extensión de puerta abisagrada. Aumenta la profundidad del panel OICP en 55 mm. Los perfiles laterales de extensión de la puerta están provistos de perfiles de agarre.

Material:

Cuerpo y perfiles de extensión de la puerta Al Mg Si05 y tapa posterior AlMg y esquineros: AlSi12.

Protección:

Se corresponde con IP 65.

Acabado:

Cuerpo y perfiles de extensión de la puerta y tapa posterior: aluminio anodizado. Esquineros: RAL 7016.

Cantidad por embalaje: :

Panel OICP con tapa posterior, perfiles de extensión de puerta, bisagras externas y sistema de cierre.

Feature:

Aluminium operator interface control panel, with a pre-machined hole pattern to mount onto a swing arm system, hinged extension frame, removable aluminium front plate accessory and a IP 65 protection degree.

Advantage:

Components can be installed easily because of the removable front panel (supplied as an accessory). Installed components are easily accessible due to the removable rear panel and hinged extension frame which also increases the panels depth by 55 mm. The enclosure's pre-machined cut-out allows the panel to be quickly mounted to the swing arm system in the field. The pre-mounted enclosure side handles allow customers to manipulate the enclosure easily when performing operations. The aluminium body will dissipate a larger amount of heat, that has been generated from the installed components.

Benefit:

The enclosure reduces customer's labour cost and allows ergonomic use in the field, due to the pre-installed handles. The internal temperature of the control panel is kept low which may remove the requirement for ventilation. The depth extension frame allows customers to install larger components, if required.

Comment:

The aluminium front plate (OIFP), must be ordered separately.
