Producto añadido correctamente a su carrito de la compra
VBD800
ELDON
2
Disponible Envío el hoy

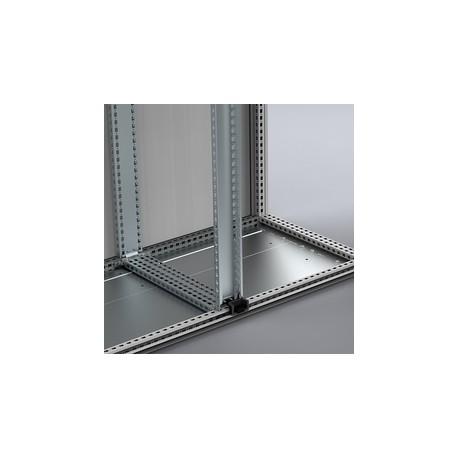

Barra div. de profund., 800 VBD800
Barra div. de profund., 800. 2 unidades

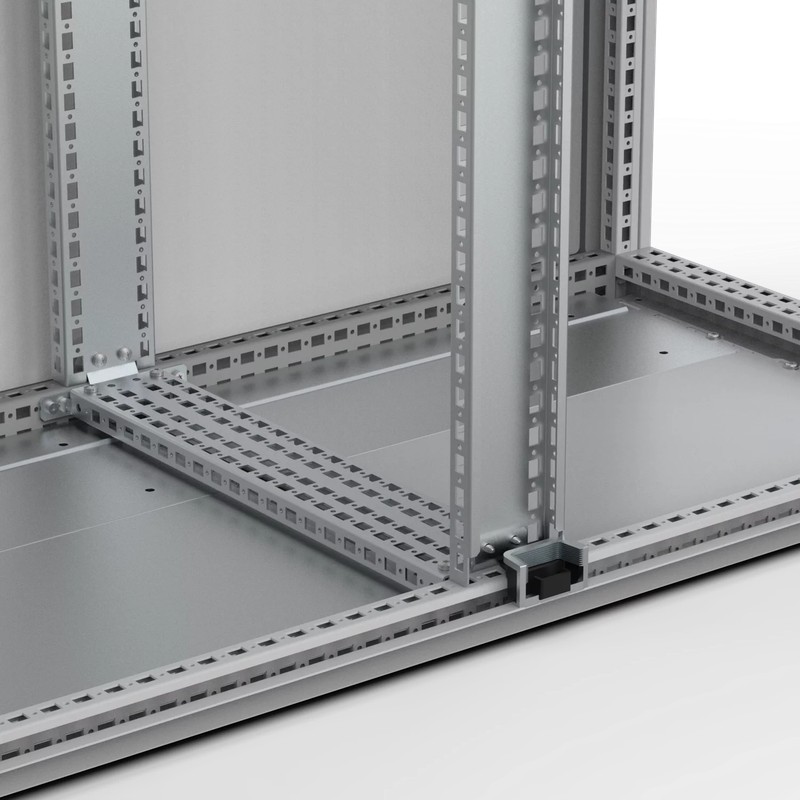

The dividing depth bar increases the mounting possibilities available within the enclosure and divides it into two useable spaces.
Sistemas de armarios eléctricos > Perfil (armario de control)
Armarios Autoportantes de acero
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de ELDON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Descripción: | Fitted in the centre of a 1200 mm or 1600 mm wide enclosure (top and bottom), to provide standard mounting facilities in two sections of 600 mm or 800 mm wide. This enables separate fitting of accessories such as CAB(P), CBU, CLPK, CLPF etc., in either side of the enclosure. Accessories are adjustable in depth within the 25 mm hole pattern. |
Material: | 1.75 mm zinc plated steel. |
Cantidad por embalaje: : | 1 pair without mounting accessories. |
Instrucciones de montaje: | Add VBK for mounting. Add VB for complete mounting facilities in the division. |
Feature: | Zinc plated steel depth dividing bar for floor standing enclosures |
Advantage: | The dividing bar replicates the enclosure's frame vertically both in the front and rear. This will increase the mounting possibilities available. |
Benefit: | The bar divides the enclosure into two internally useable spaces, where more accessories can be mounted, providing a cost effective solution . |
Título: | Tamaño: | Tipo: |
---|---|---|
VBD800 VBD800 ES_VBD400.pdf | 201 Kbytes | |
Descargar catálogo general |
